21

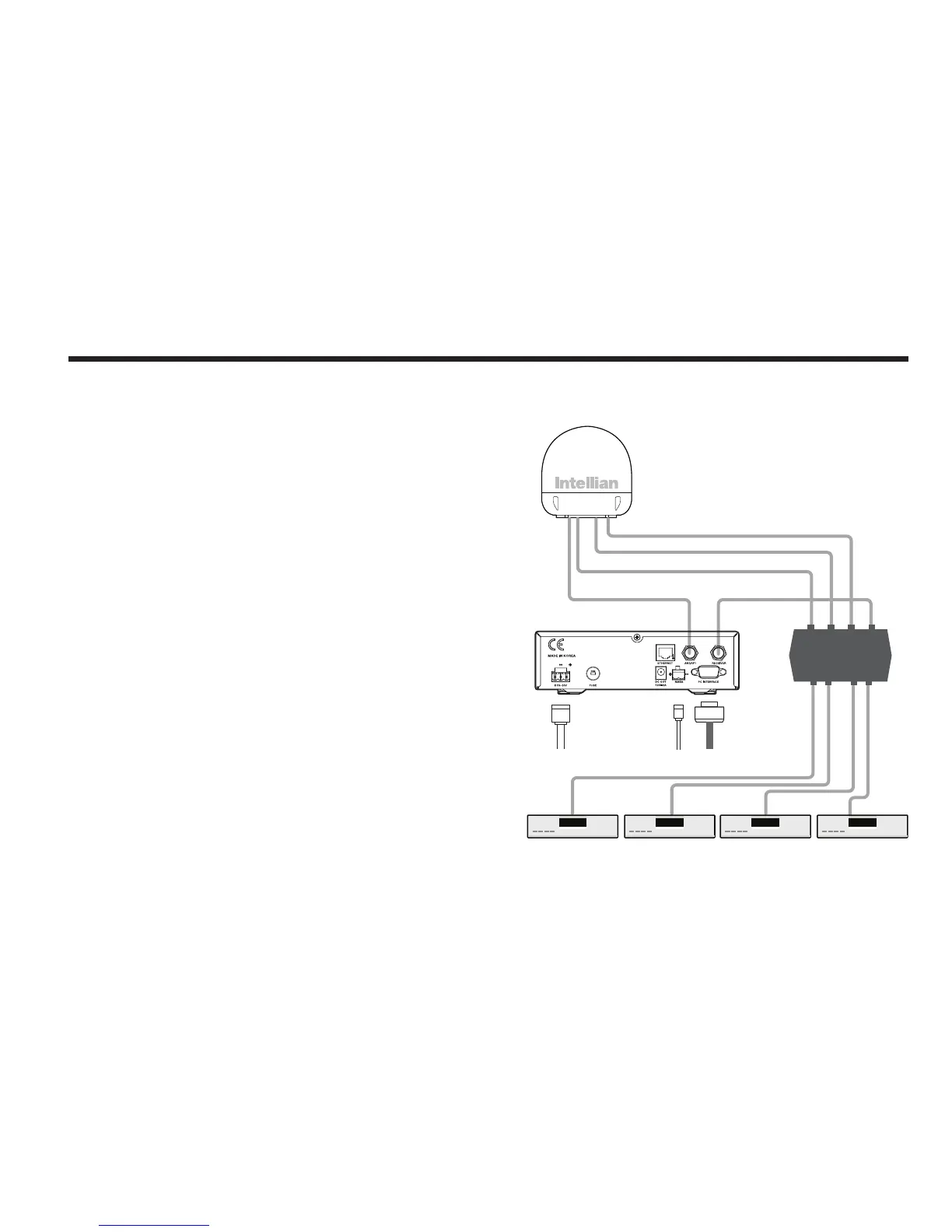

Figure 18 : Multi Receiver Connection
Multi-Receiver Connection
In order to connect multiple IRDs to the antenna, you will need to
purchase a suitable active multiswitch. The multiswitch has to be
installed between the antenna unit and the IRDs as shown in the
following diagram.
ACU
RF Cable
RF 1
Antenna Receiver
ACU IRD Cable
DC Power Cable
NMEA GPS PC Cable
IRD 2 (Not supplied)IRD 1 (Not supplied) IRD 2 (Not supplied)IRD 1 (Not supplied)
RF 3
RF 4
RF 2
Multi switch
(Not supplied)
To Next Page
