Intellian i6 - Preparation for Transportation; Antenna Securing Procedures for Transport

75
1. Refer to the drawing on the right.
2. Rotate antenna left and right slowly until the limit switch is pressed.
3. Turn the antenna by 360° to the reverse direction.
4. Insert the shipping foams on both sides of the dish to secure the
pedestal in position with the bottom radome.
5. Cover upper part of radome. Be careful not to touch the reector
when assembling upper part of radome.
6. Pack Intellian i6/i6P/i6PE into the original package box.
Note: Don’t rotate it quickly, or you may damage the antenna limit
system.
Preparation for Transportation
The following procedures to secure the antenna shall be strictly observed to protect
it from being damaged during transportation.

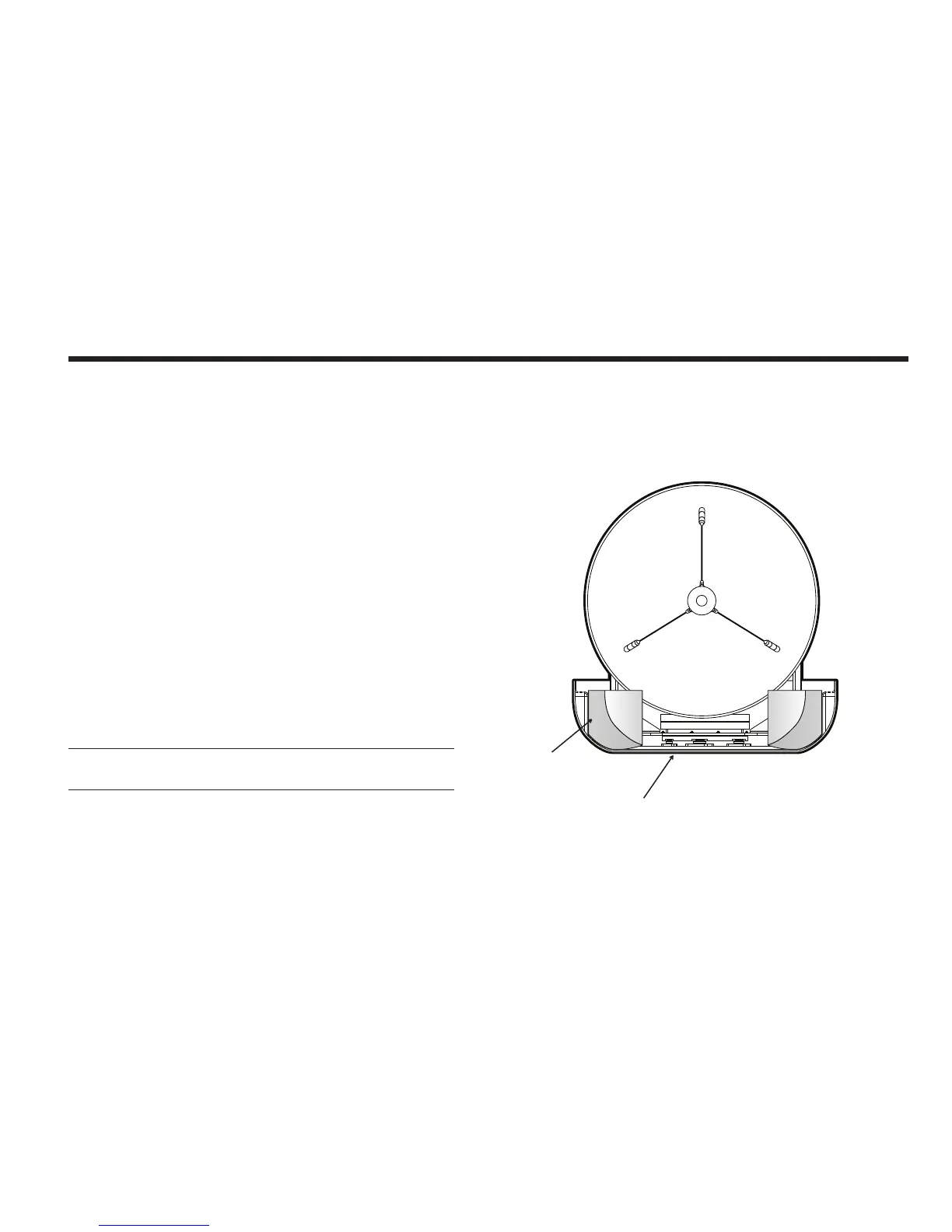

Figure 35 : Preparation for Transportation
Bottom of the radome
Shipping Foam
