DC OUT port
Intellian ACU provides DC OUT port for direct connection of MIM(Multi-
satellite Interface Multi-switch) or SDM (Shaw Decoder Module) which
requires DC power input. Intellian MIM or SDM can be connected to the
i-series ACU without AC-DC Adaptor.

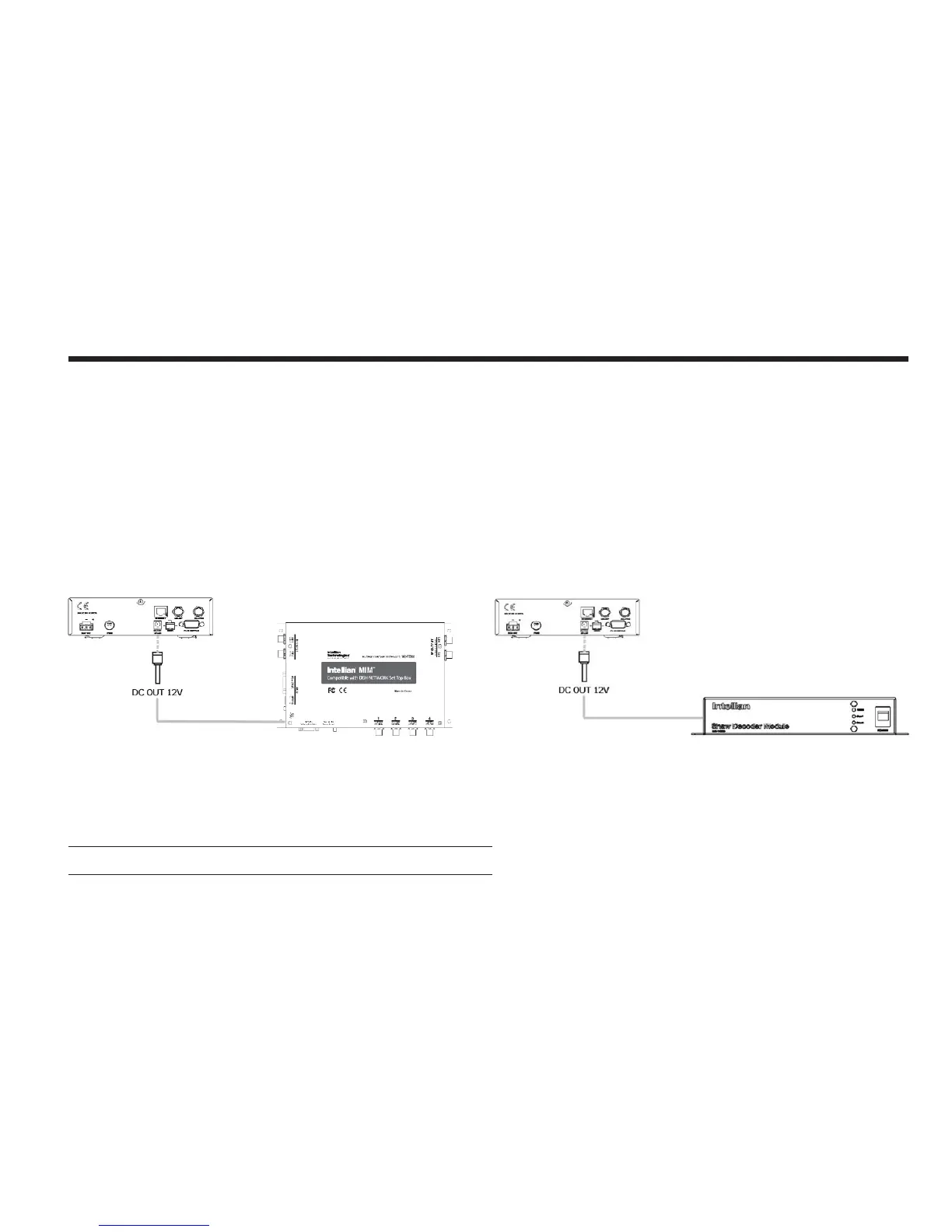

Figure 22 : DC out MIM Figure 23 : DC out SDM
Note: The DC power cable is included in the component list of MIM and SDM.
