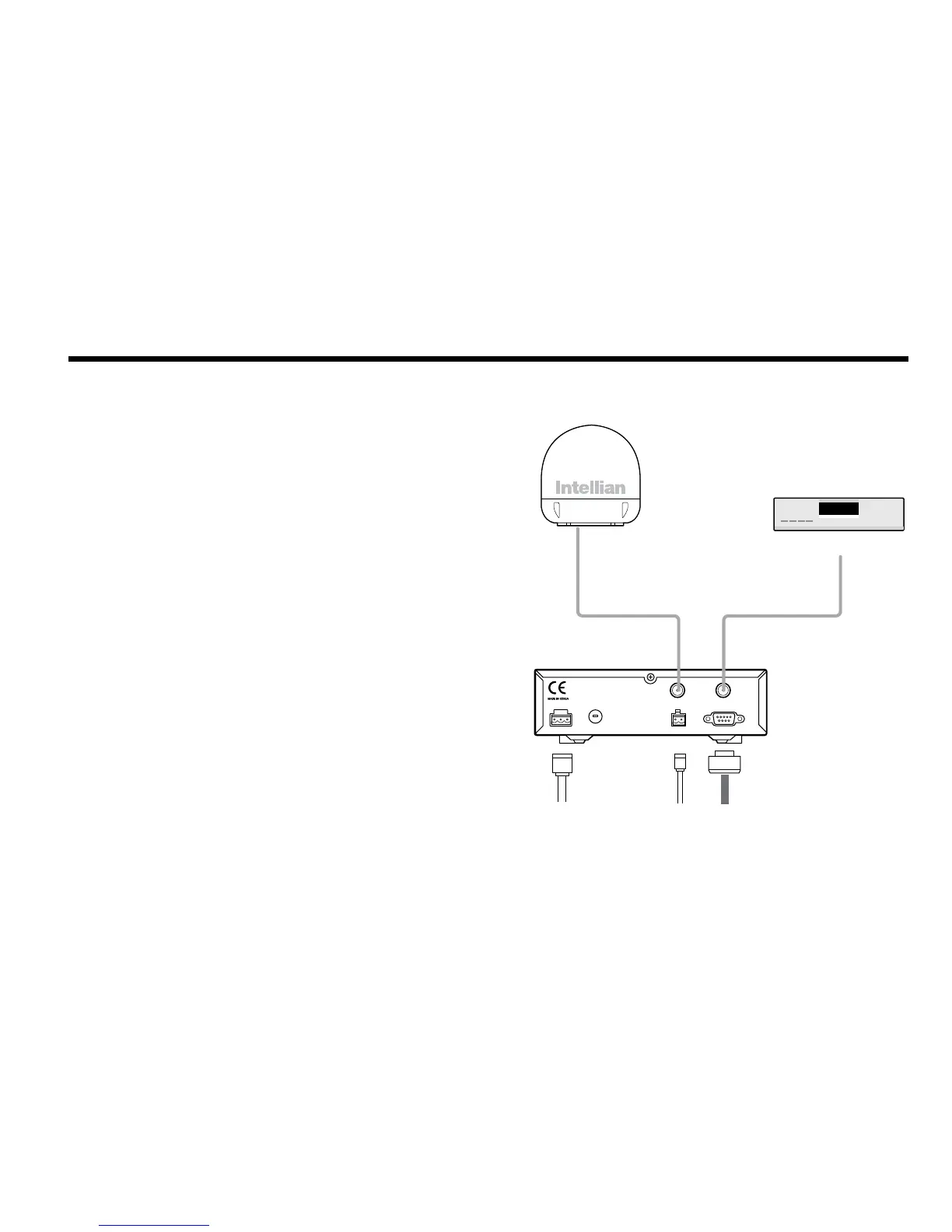

Figure 16 : Single Receiver Connection
Connecting the System Cables
After installation and xation of the antenna, connect the ACU to the
antenna. Refer the drawing below to connect cables.
Single Receiver Connection
• Connect the RF Cable (15m) from the RF 1 connector on the
antenna to the ANT. RF1 connector on the rear of ACU.
• Connect the ACU-IRD Cable (3m) from the RECEIVER connector
on the rear of the ACU to RF on the IRD.
• Connect the power cable (10m) from DC power connector on the
rear of ACU to a power source at 12V / 24V DC.
• Press the POWER ON switch in front of the ACU to start the
operation of the antenna system.
ACU
RF Cable
RF 1
Antenna
Receiver
ACU IRD Cable
DC Power Cable
NMEA GPS
PC Cable
IRD (Not supplied)
NMEA
ANT RF1 RECEIVER
FUSEDC 9 - 30 V PC INTERFACE
FG - +
+ -

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
