Intellian i6P Installation And Operation User Guide

50
Intellian Satellite TV Antenna Systems
Introduction
GUI Software of Intellian i6/i6P/i6PE has been created for the user to easily set up the antenna by using personal
computer. Using the GUI program enables the user to easily monitor and modify the information of antenna, satellite
and GPS. Additionally, detailed diagnostic methods of the antenna are provided by the GUI program.
To start this program,
1. Connect one end of PC serial cable to the serial port on the computer.
2. Connect the other end of the PC serial cable to the “PC INTERFACE” on the rear of ACU.
3. Execute GUI program by inserting the CD-ROM supplied by Intellian into a CD-ROM drive of the computer.

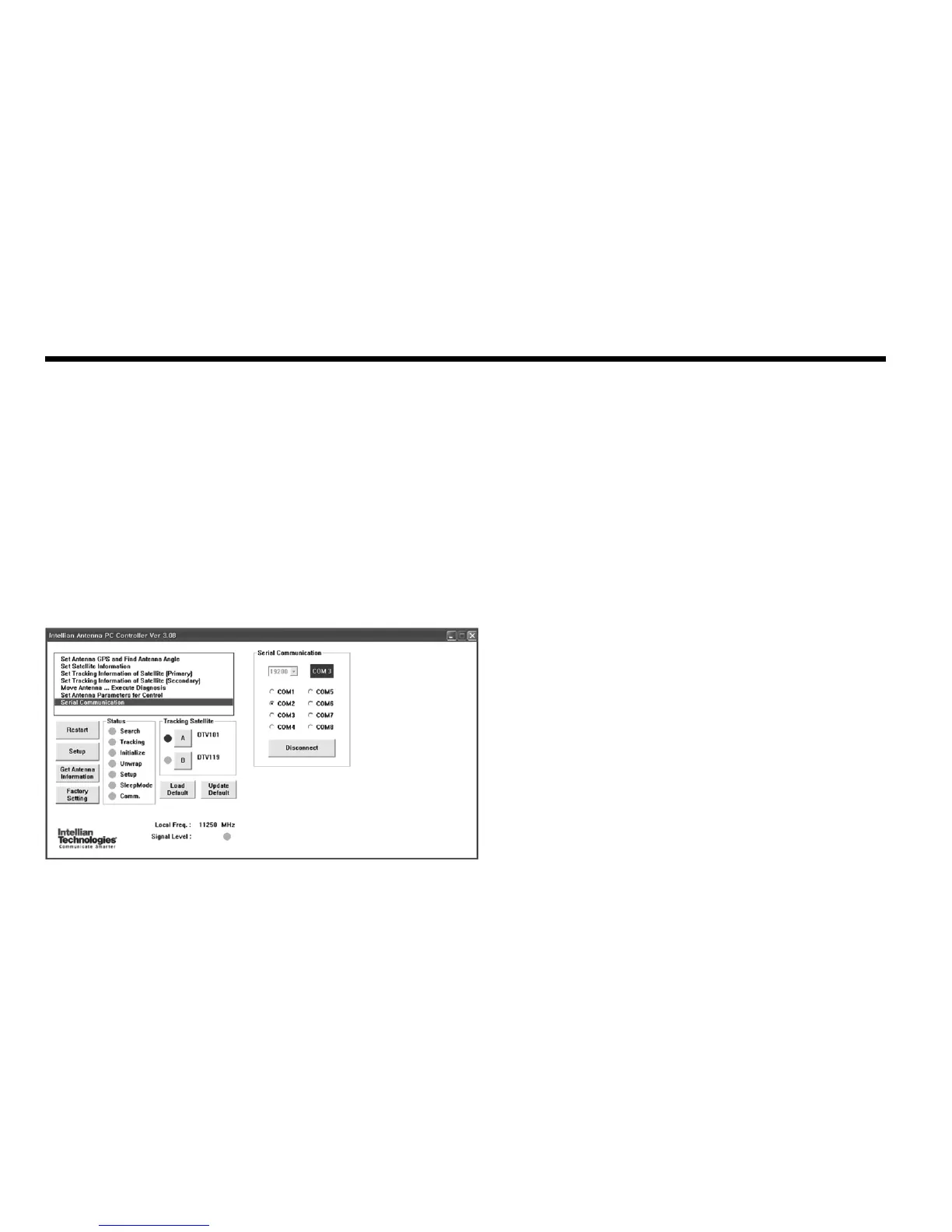

Figure 23 : Intellian Antenna PC Controller Program
Operation Using PC Controller Program

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
