Intellian i6P Installation And Operation User Guide

54
Intellian Satellite TV Antenna Systems
Controller Menus
Set Antenna GPS and Find Antenna Angle
Antenna makes use of GPS information to search satellite faster. More
precise the GPS information is, quicker the antenna is able to search
for a satellite. The method to input information into GPS is to push “Set
GPS” button after keying in the latitude and longitude information on “City
GPS”. Pushing “Add City” button stores the GPS information. By selecting
the stored region in the list box, the GPS information of each region is
displayed. The Intellian i6/i6P/i6PE satellite TV antenna system utilizes GPS
data to locate the satellite faster.
Command Buttons
•LoadGPSFiles–ReadsvariouscityinformationfromtheGPSles.
•AddCity–AddsthenameofcityanditsGPSinformationtoGPSles.
•DeleteCity–DeletesthenameofcityanditsGPSinformationfromtheGPSles.
•SetGPS–InputstheindicatedGPSinformationondisplaytoantenna.
•FindAngles&SkewAntennaGPS–Findsthecurrentantennaangleandskew
angle in relation to the longitude (orbit position) of satellite and antenna current
GPS.
•FindAngles&SkewCityGPS–Findsthecurrentantennaangleandskewanglein
relation to the longitude (orbit position) of satellite and city GPS.

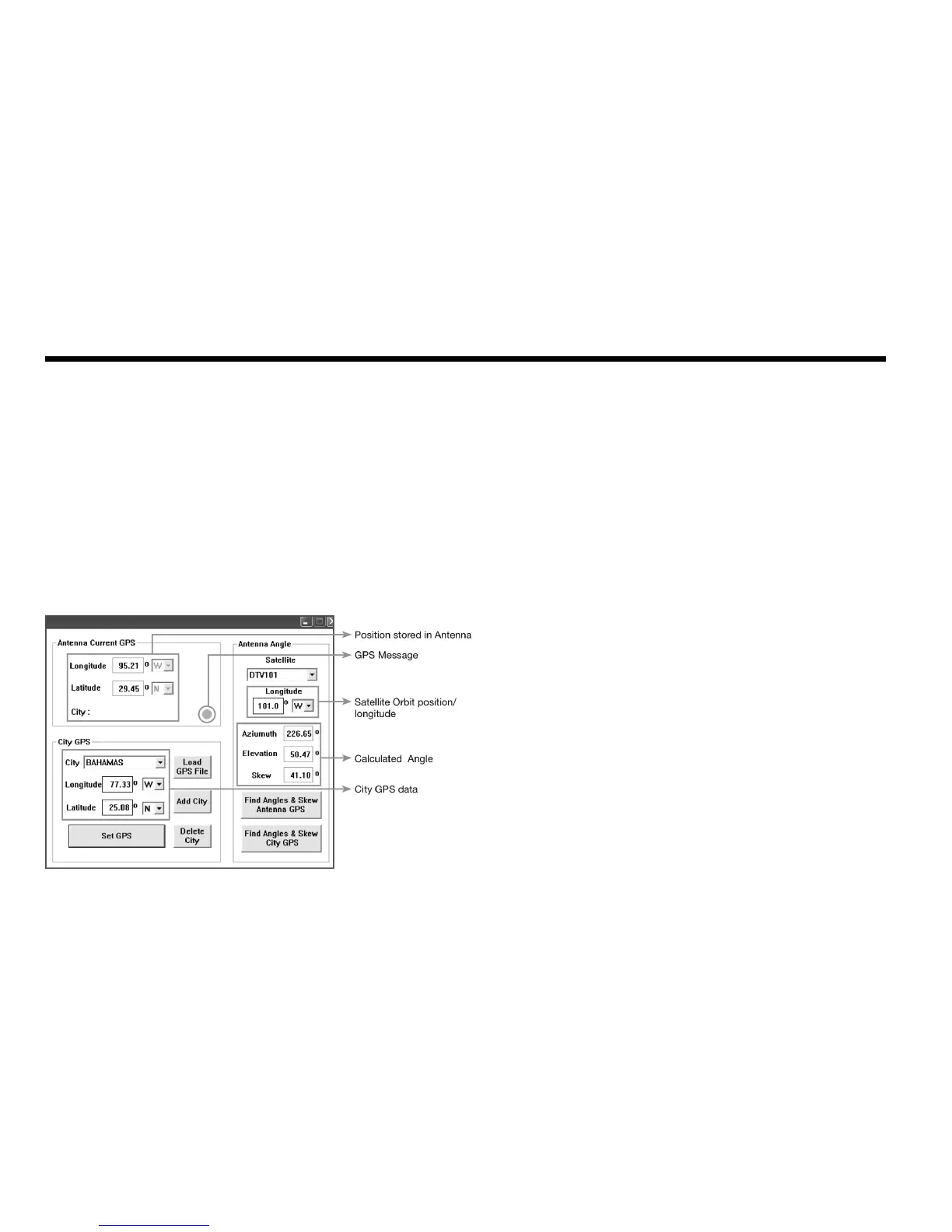

Figure 29 : Antenna Angle and GPS Information

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
