Intellian i6P Installation And Operation User Guide

51
Program Initialing and Serial Port Setup
The communication between the ACU and antenna must be established as the rst step in order to start setting your antenna.
Command Buttons
•BaudRateSetting–Todisplaydatacommunicationspeed.
•CommunicationStatusDisplay–TodisplaydatacommunicationbetweenACUandPC.
•SerialPortSetting–Toselectserialporttobeused.
•Connect/Disconnect–ToestablishconnectionbetweenACUandPC.

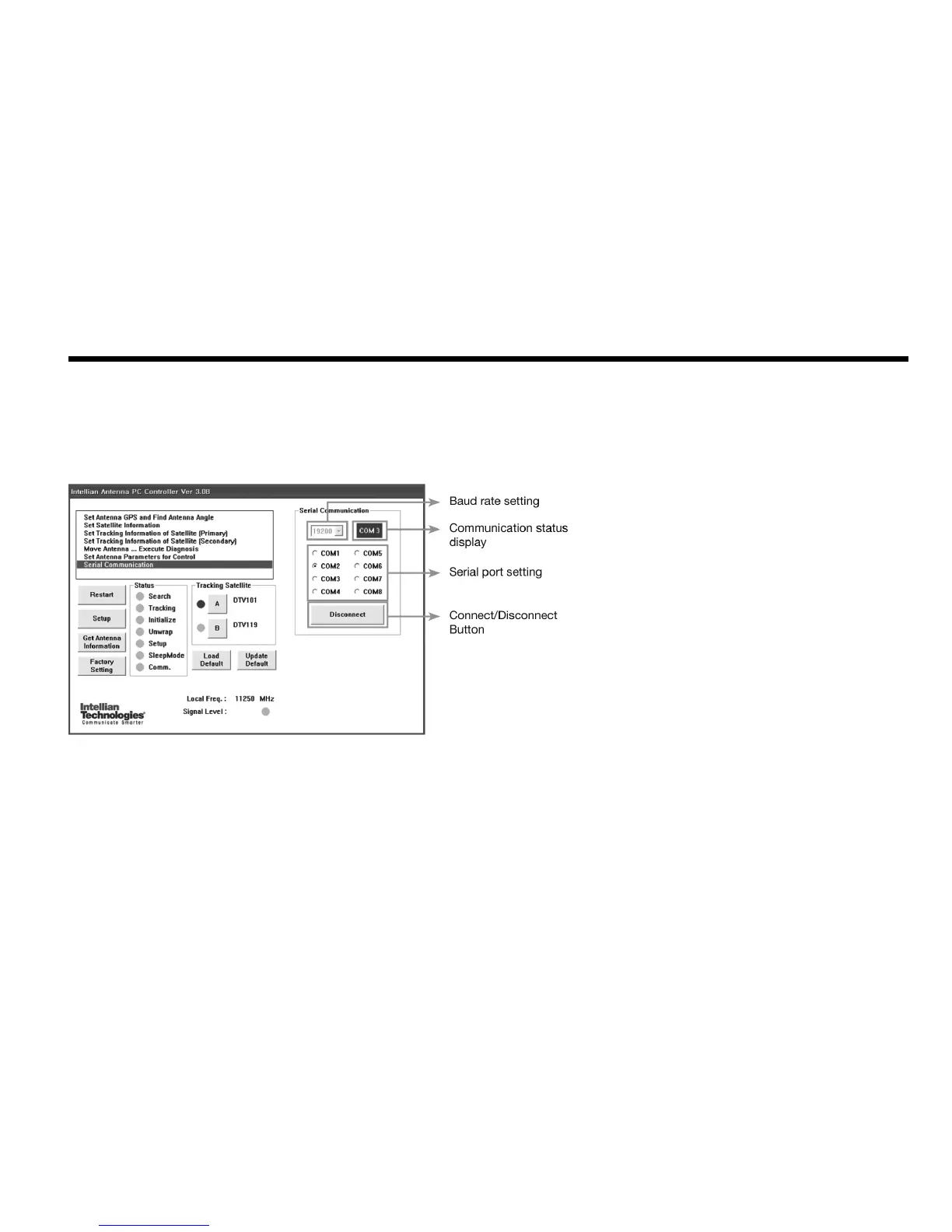

Figure 24 : Setup for Serial Communication

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
