Intellian i6P Installation And Operation User Guide

25

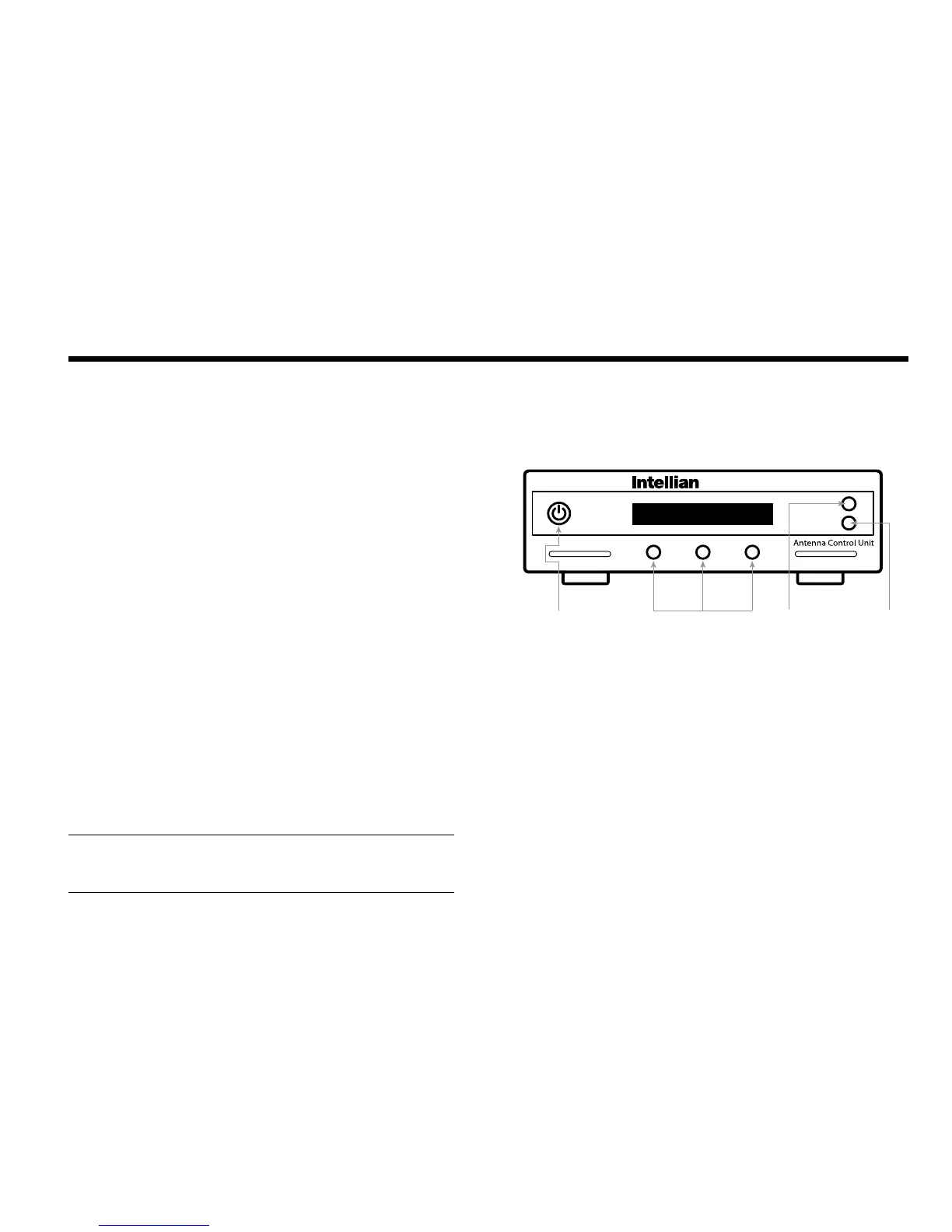

ACU Soft Keys
Press to select
On-screen option
BACK
ENTER
POWER
Figure 22 : ACU Soft Keys
Operating the ACU
Introduction
This section of the handbook describes how to setup your Satellite TV
System after installing the ACU. It includes the following functions:
• System startup
• Changing the default satellite
• Monitoring the antenna status
• Setting sleep mode
• Entering setup mode
• Setting the satellite pair
• Editing satellite information
• Setting the antenna parameter
• Setting GPS
• Setting the DiSEqC method
• Display versions
• Display power status
• Setting antenna go position
• Setting antenna move step
• Setting remote control
• Setting the factory default parameters
• Performing diagnostic tests
Note: Many of the listed functions will only be required only after initial
installation of your system. Refer to the Quick Installation Guide before
operating the system.
Operation Instruction

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
