Intellian i6P User Manual

20
Intellian Satellite TV Antenna Systems

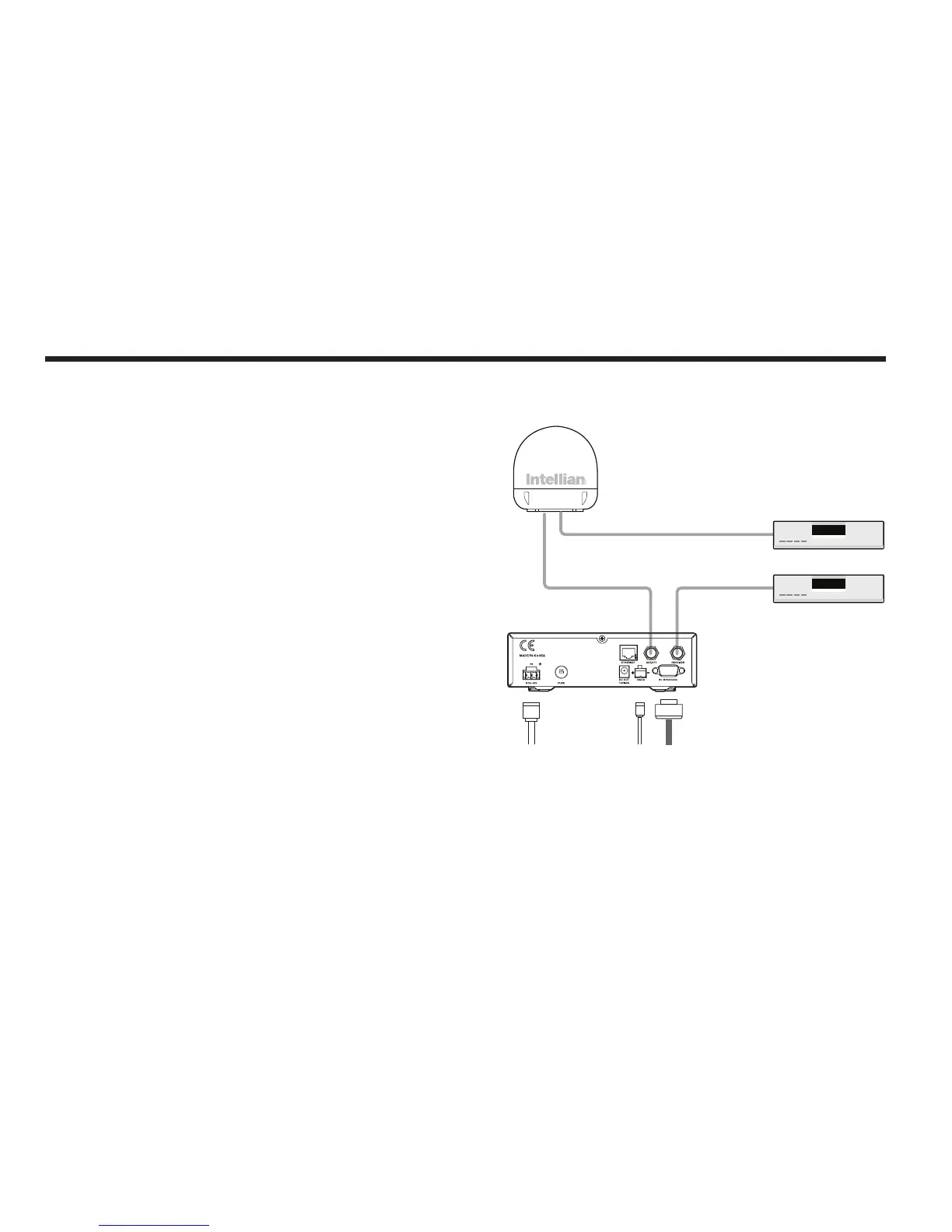

Figure 17 : Dual Receiver Connection
Dual Receiver Connection
You can connect two IRDs for your antenna as shown in the following
diagram. However, only one of the IRDs can be congured as a two
satellite receiver.
The other IRD needs to be congured as a single satellite receiver.
The two satellite receiver determines which satellite is tracked, while
the other receiver can watch any channel which is available from the
tracked satellite.
As in the single IRD option the RF cables from the antenna base plate
should be connected to ‘LNB’, ‘ANT’, or ‘Satellite In’ on the rear panel of
IRD.
ACU
RF Cable
RF 1 RF 2
Antenna
Receiver
ACU IRD Cable
DC Power Cable
NMEA GPS
PC Cable
IRD 2 (Not supplied)
IRD 1 (Not supplied)

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
