Intellian i6P User Manual

26
Intellian Satellite TV Antenna Systems
PC to ACU Communication Setup
You can establish data communication between a PC and the ACU using
one of the following methods.
Serial Connection
Connection through Serial Port
1. Connect a 9-pin Serial cable from the PC INTERFACE connector on the
ACU to the 9-pin serial port on your PC.
2. If there is not a 9-pin serial port on the PC, use a USB-Serial adapter.

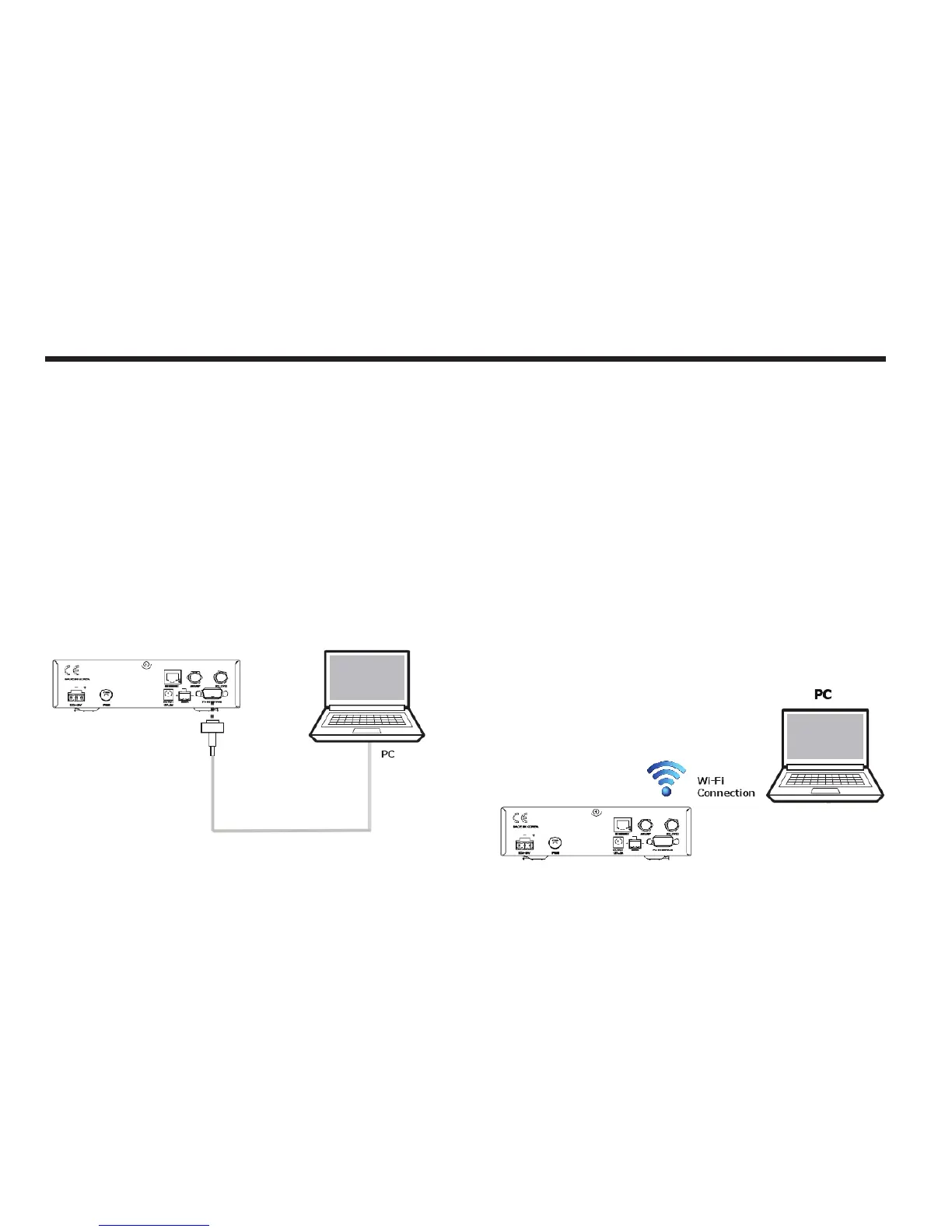

Figure 26 : Serial Connection
Wi-Fi Connection
Setup Wi-Fi Connection
• Setting up the PC in order to access Wi-Fi
1. Connect Wi-Fi.
After clicking on the Windows Wireless Connection icon,
click on i-AP(default).
2. By default, the connection security is opened.
3. Use the ACU’s IP address to access Intellian Aptus
®
• Default: 192.168.1.223
Figure 27 : ACU to PC Wi Connection

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
