Intellian i6P User Manual

32
Intellian Satellite TV Antenna Systems

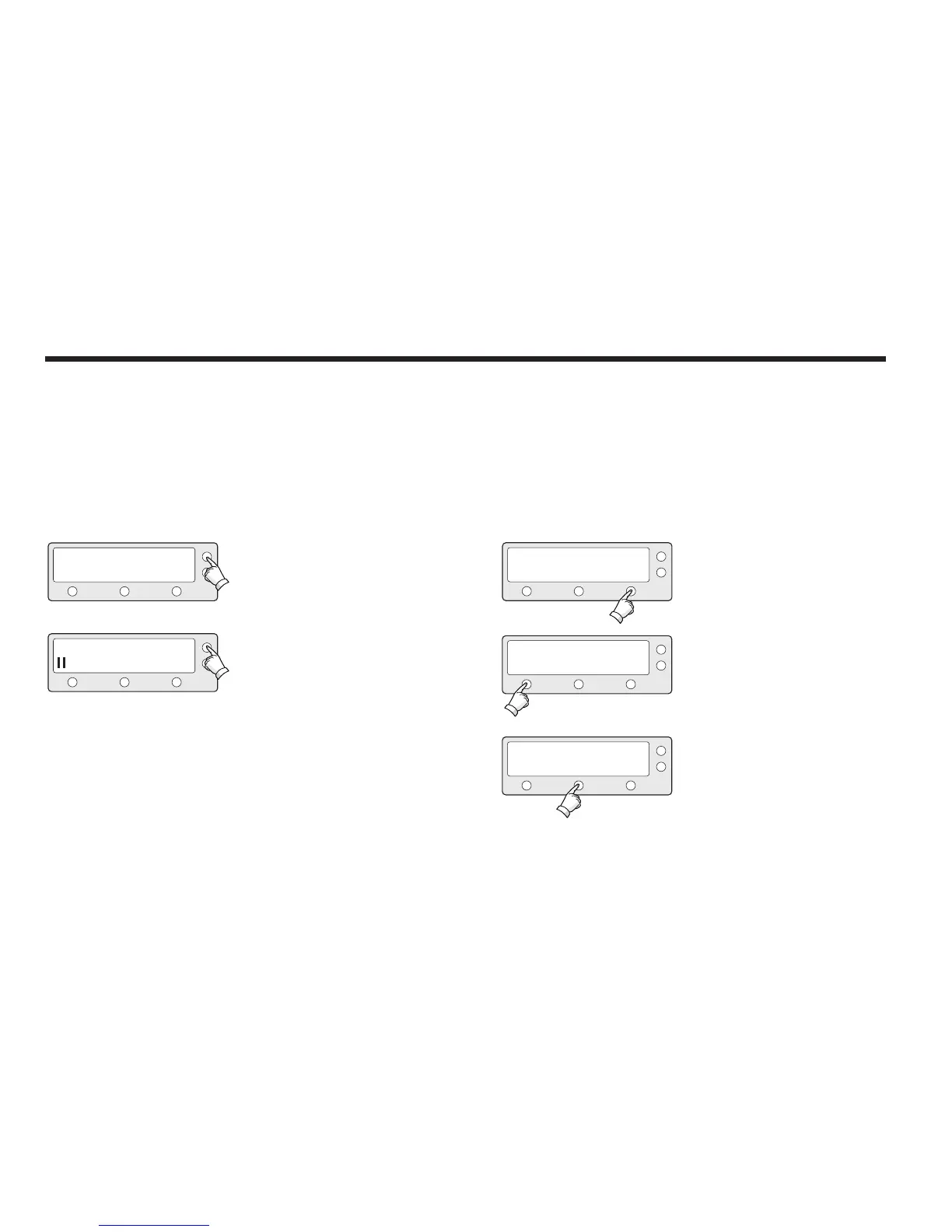

Setup Mode
Begin Setup Mode
To enter the Setup Mode simply follow the instructions below:
1. While the antenna is tracking press SETUP
2. Press YES to enter setup mode.
3. Press YES to set the satellite pair.
TRACKING A: DTV101
TRACKING A: DTV101
TRACKING A: DTV101
SETUP MODE ?
SET SAT PAIR ?
B:DTV119 SETUP
B:DTV119 SETUP
B:DTV119 SETUP
YES
PREV
NO
NEXTYES
Sleep Mode
If the antenna has lost the tracked satellite while in sleep mode, sleep
mode will be canceled.
1. Press BACK to enter sleep mode.
2. Press BACK again to exit sleep mode.

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
