Intellian i6P User Manual

61

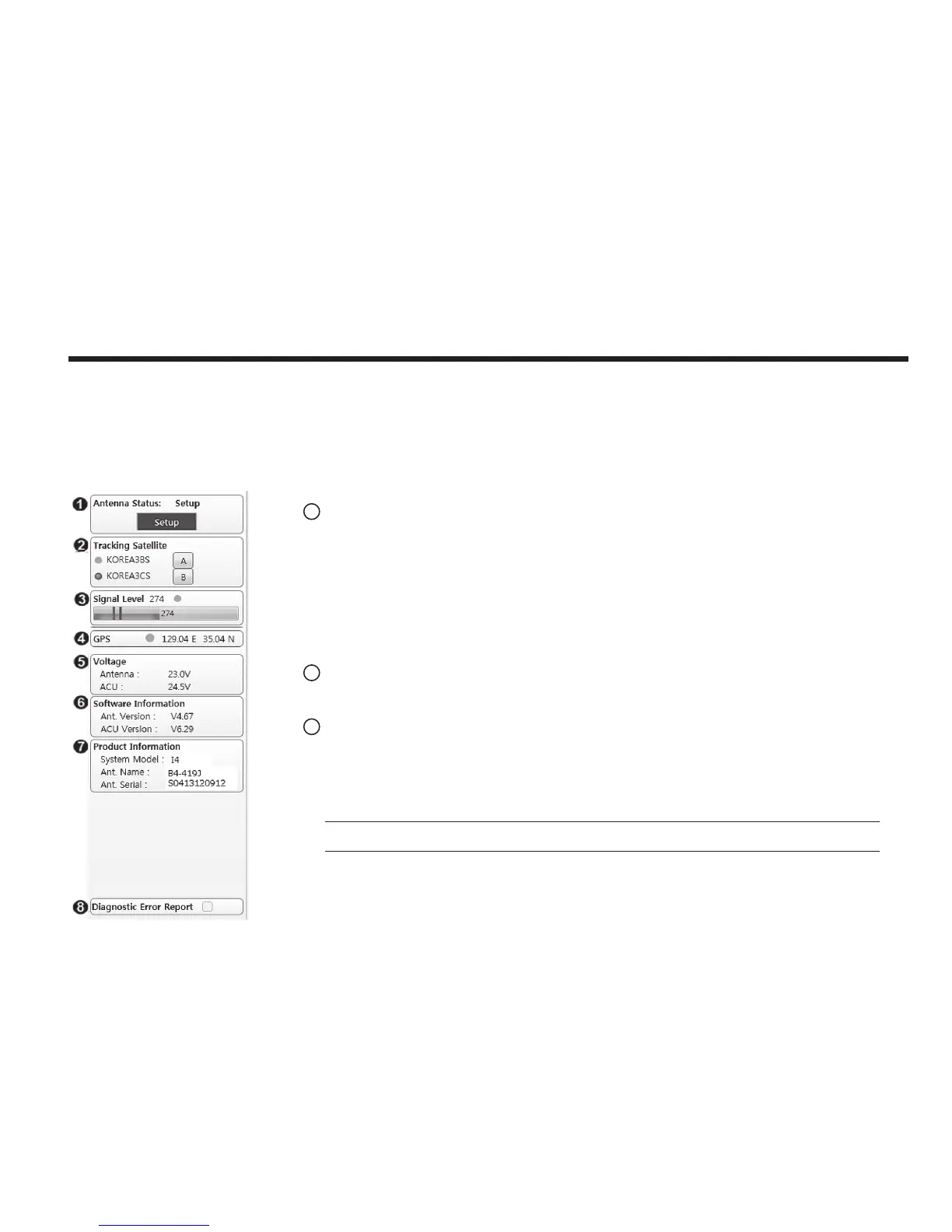

System Property Status Dashboard
The property status dashboard on the left pane of the screen provides the antenna status, the availability of TX transmission, signal level, GPS status,
software information, product information and error status to be monitored quickly.
1
2
3
Antenna Status: Displays the status of the current mode of the antenna.
- Search: Antenna is searching the selected satellite.
- Tracking: Antenna is tracking the target satellite.
- Initialize: Antenna or ACU is initializing.
- Setup: Antenna is in SETUP mode.
- Sleep: Antenna is in Sleep mode.
- Unwrap: Antenna is unwinding/winding the cable in the antenna.
Tracking Satellite
Display or set current tracking satellite and tracking information. Up to three satellites can be selected.
Signal Level
The “Red” line indicates the signal “Detect Level Threshold” and the “Orange” line indicates the signal
“Tracking Level Threshold”. If the signal level is higher than the tracking level threshold, the signal level bar
will display “Blue” color. If the signal level is lower than the tracking level threshold, the signal level bar will
display “Orange” color and the antenna will stay in searching mode.
Note: If the signal level is not higher than the tracking threshold, decrease the detect and tracking level.

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
