Intellian i6P User Manual

6
Intellian Satellite TV Antenna Systems

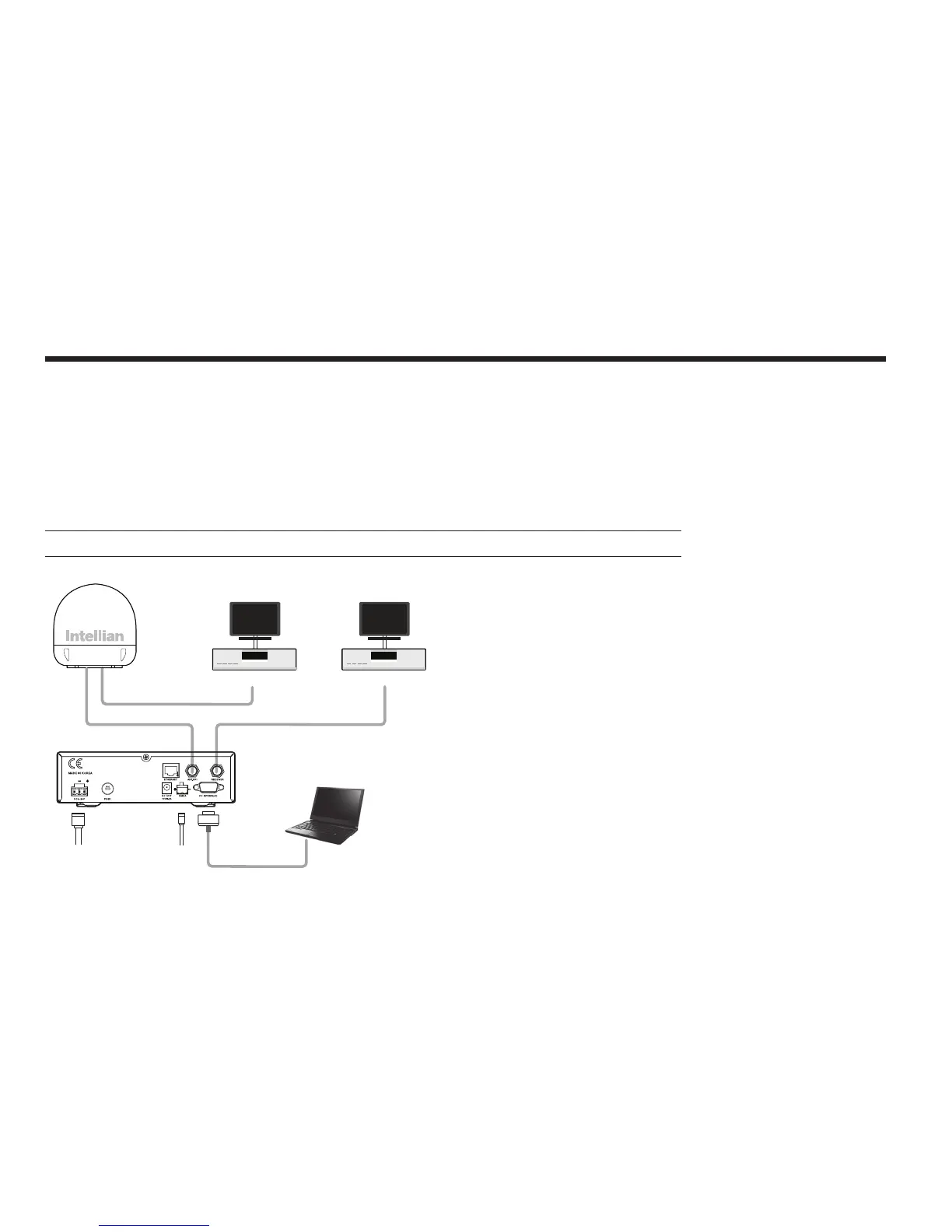

Figure 01 : Basic System Conguration
Basic System Congurations
For your satellite TV system to work properly, the system will have to be connected with all of the provided components
properly, as shown in the gure below (see the “Installation” section of this manual). Separate purchase of a satellite
receiver and a TV is required.
Note: Dish and Bell TV users please refer to the Intellian Dish MIM Installation and User Manual.
ACU
9-30V DC Power
NMEA GPS
PC Cable PC (Not supplied)
Satellite Receiver (Not supplied)
TV (Not supplied)
Satellite Receiver (Not supplied)
TV (Not supplied)

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
