Intellian i6P User Manual

33

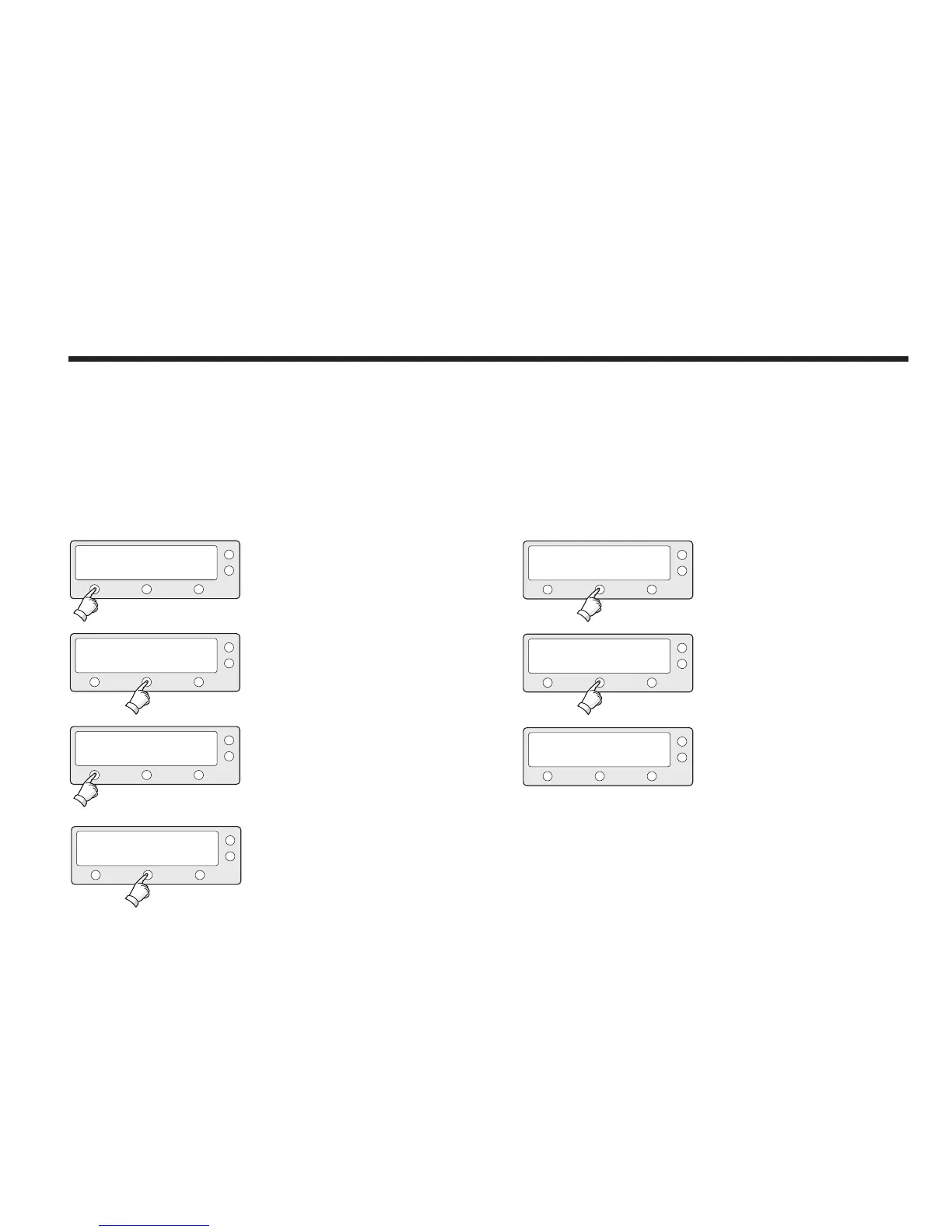

Setting the Satellite Pair
You can change the satellite pair if you decide to receive satellite television service
from a different service provider.
1. Press YES to enter setup mode.
2. Press YES to set satellite pair.
3. Press YES to set triple satellites.
SETUP MODE ?
SET SAT PAIR ?
SET TRIPLE SAT ?
YES
PREV
YES
NO
NEXT
NO
YES
5. Set satellite B
Press PREV to show previous satellite name.
Press SELECT to set chosen satellite to SAT B.
Press NEXT to show next satellite name.
6. Set satellite C
Press PREV to show previous satellite name.
Press SELECT to set chosen satellite to SAT C.
Press NEXT to show next satellite name.
7. Press YES to save selections.
Press NO to cancel and return to main setup
mode.
SAT B : DTV119
SAT C : DTV110#
SAVE ?
PREV
PREV
YES
NEXT
NEXT
NO
SELECT
SELECT
4. Set satellite A
Press PREV to show previous satellite name.
Press SELECT to set chosen satellite to SAT A.
Press NEXT to show next satellite name.
SAT A : DTV101
PREV NEXTSELECT

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
