Intellian i6P User Manual

34
Intellian Satellite TV Antenna Systems

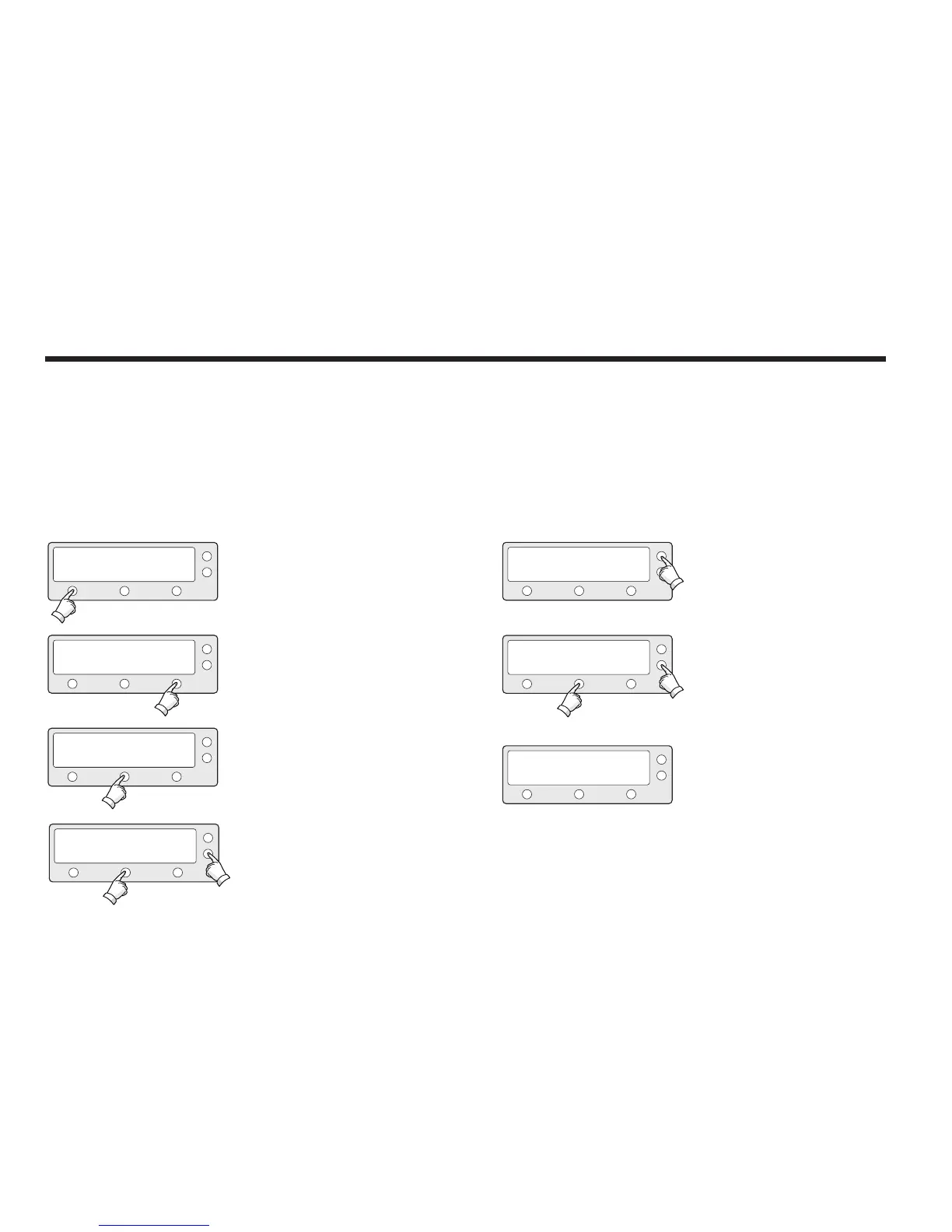

Setting the GPS
It is possible to set up and modify the GPS information, which enhances
the antenna functionality.
4. Input the longitude data.
+ increases the value. - decreases the value.
Change the underscored digit using the +/-
buttons.
Press INPUT to accept the value and move to
next digit. Press BACK to move to previous digit.
5. Press ENTER to move to next screen.
Press BACK to move to previous screen.
6. Input the latitude data.
+ increases the value. - decreases the value.
Change the underscored digit using the
+/- buttons.
Press INPUT to accept the value and move to
next digit.
Press BACK to move to previous digit.
7. Press YES to accept data.
Press NO to cancel and return to main setup
mode.
LONGITUDE ###.## E
LONGITUDE ###.## E
LATITUDE ##.## N
SAVE ?
-
-
-
YES
+
+
+
NO
INPUT
INPUT
INPUT
1. Press YES to enter setup mode.
2. Press NEXT to enter GPS setup
mode.
3. Press YES to set GPS.
SETUP MODE ?
SET SAT PAIR ?
SET GPS ?
YES
PREV
PREV
NO
NEXT
NEXT
YES
YES
X1

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
