Intellian i6P User Manual

31
AZ : ###.# EL : ##.#
SIGNAL : ### ● [VL]

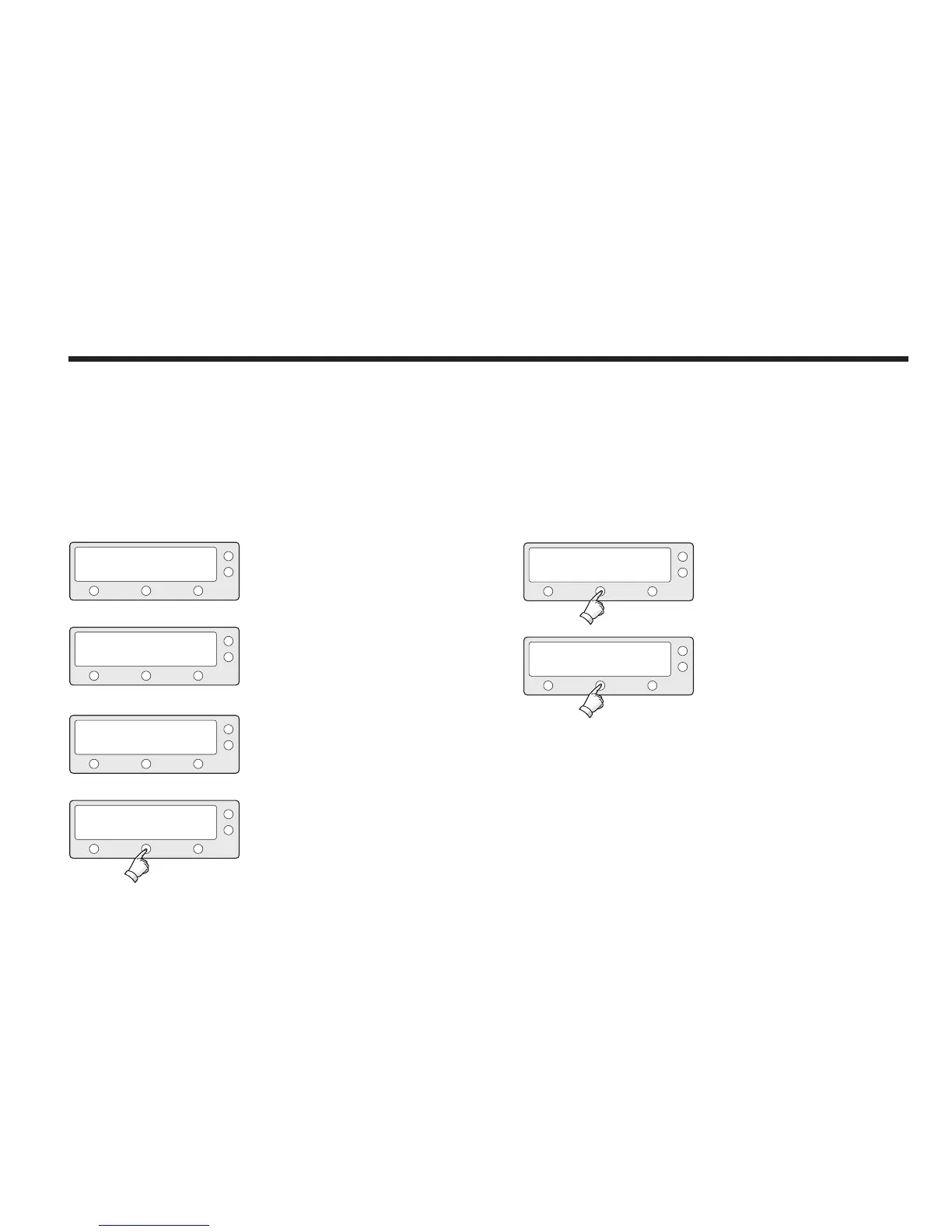

Monitoring Current Status
When powered on, ACU displays the status of the antenna.
The current status of the antenna is displayed as shown below.
1. The antenna is searching for satellite A. 5. Antenna position detail and signal strength are
displayed.
3. The antenna is unwrapping the cable.
2. The antenna is tracking satellite A.
4. The antenna is again tracking satellite A.
Press center soft key to display position detail.
SEARCH A: DTV101
ANTENNA IS UNWRAPPING
TRACKING A: DTV101
TRACKING A: DTV101
B:DTV119 SETUP
B:DTV119 SETUP
B:DTV119 SETUP
B:DTV119 SETUP
6. Press center soft key to display current GPS
information. Press center soft key to return
to main tracking mode.
###.##E ##.##N

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
