Intellian i6P User Manual

40
Intellian Satellite TV Antenna Systems
Setting the LNB Local Frequency
It is possible to select a local frequency from ACU. It is not recommended
for a novice satellite service user to use this mode.

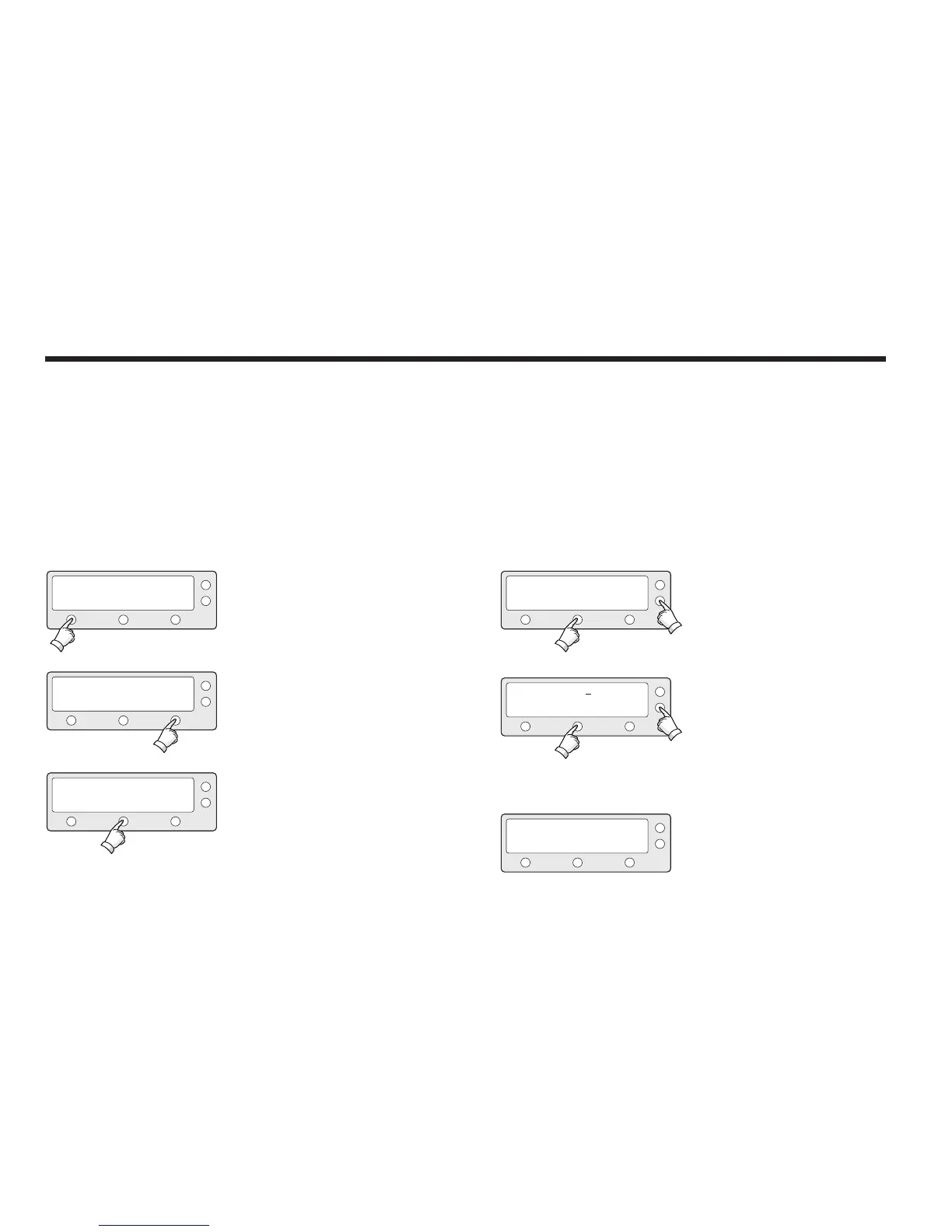

Case1. Single band LNB is used.
1. Press YES to enter setup mode.
2. Press NEXT four times to enter set local
frequency mode.
3. Press YES to set local frequency.
4. Select the LNB Type* - SINGLE.
PREV - Shows previous LNB type.
SELECT - Set the displayed LNB type.
NEXT - Shows next LNB type.
Press ENTER to move to next screen.
SETUP MODE ?
SET SAT PAIR ?
SET LOCAL FREQ ?
LNB TYPE : SINGLE
YES
PREV
PREV
PREVNO
NEXT
NEXT
NEXT
YES
YES
SELECT
X4
5. Input the local frequency of LNB.
+ increases the value. - decreases the value.
Change the underscored digit using the +/-
buttons.
Press INPUT to accept the value and move to
next digit.
Press BACK to move to previous digit.
Press ENTER to move to next screen.
6. Press YES to accept the data.
Press NO to cancel and return to main setup
mode.
LOCAL FREQ: #####MHz
SAVE ?
-
YES
+
NO
INPUT

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
