7. GUI

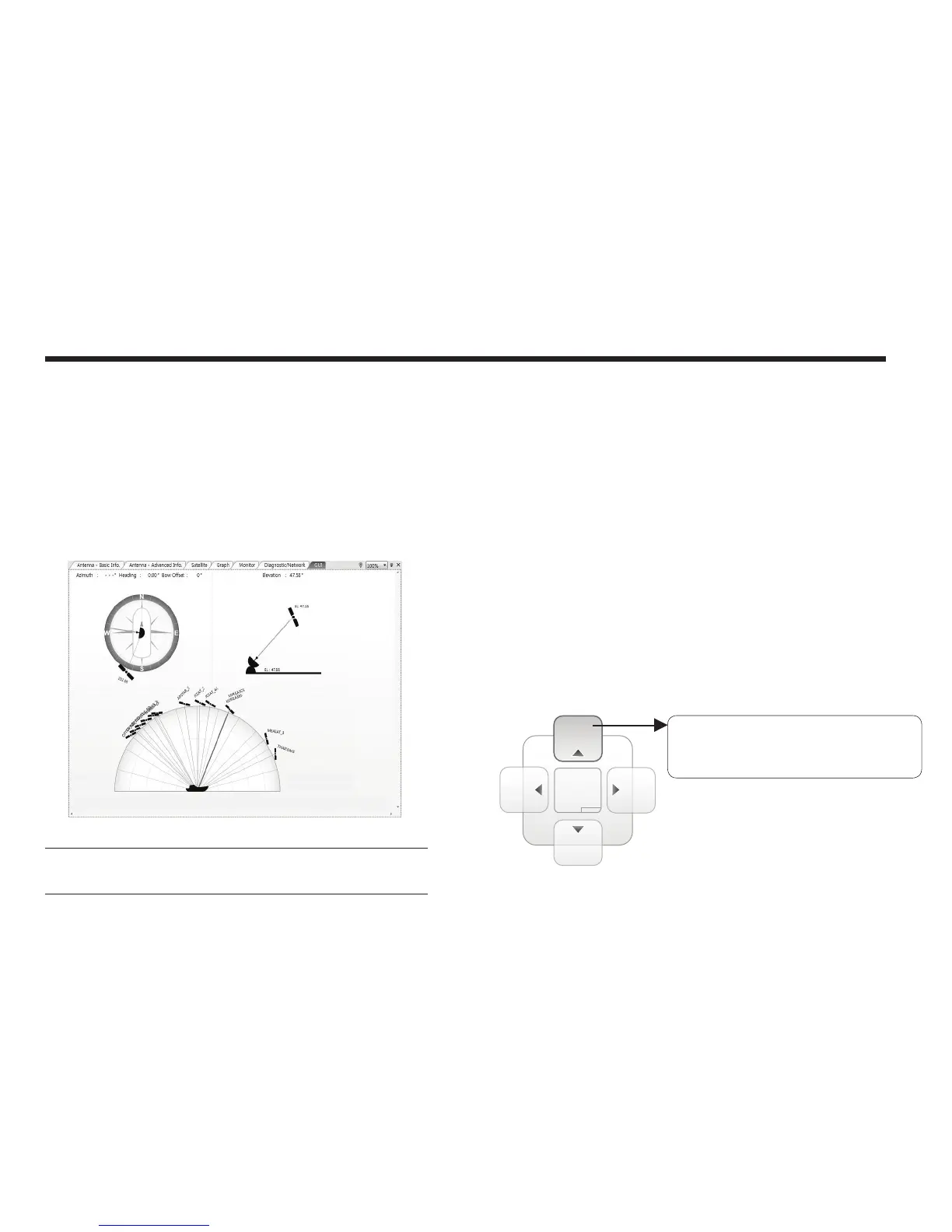

This view shows a graphical representation of the current antenna
position which allows you to easily identify whether or not the antenna
is aligned properly to the target satellite or is in a block zone. In addition,
this view shows the current satellite that the antenna is pointed towards
and the satellites that are located at a 180°arc on the horizon, according
to the current position.
8. Work View Functions
The seven Work View Tabs displayed in the Work View can be arranged
in customized layouts.
- Layout Formatting
• Each of the Work View Tab can be separated from the rest Tabs.
Click and hold the left mouse button on the Work View Tab’s header
and then drag a desired Tab out. When a Work View Tab is separated
from the rest of your Work View Tabs, again click and hold the left
mouse button on the Work View Tab’s header to display a cross-shaped
Navigator icon. While holding the mouse button, bring the selected Work
View Tab closer to the Navigator icon and release the mouse button at
your desired position (top, left, right or bottom arrow). This time, the
selected Tab will be moved to the desired position.
Note: Based on the satellite EIRP footprint and the size of the antenna,
you may not be able to track all the satellites visible in 180° arc.
Move the selected Work View Tab
to the top position of the Work View
layout.
