Intellian i6P User Manual

74
Intellian Satellite TV Antenna Systems

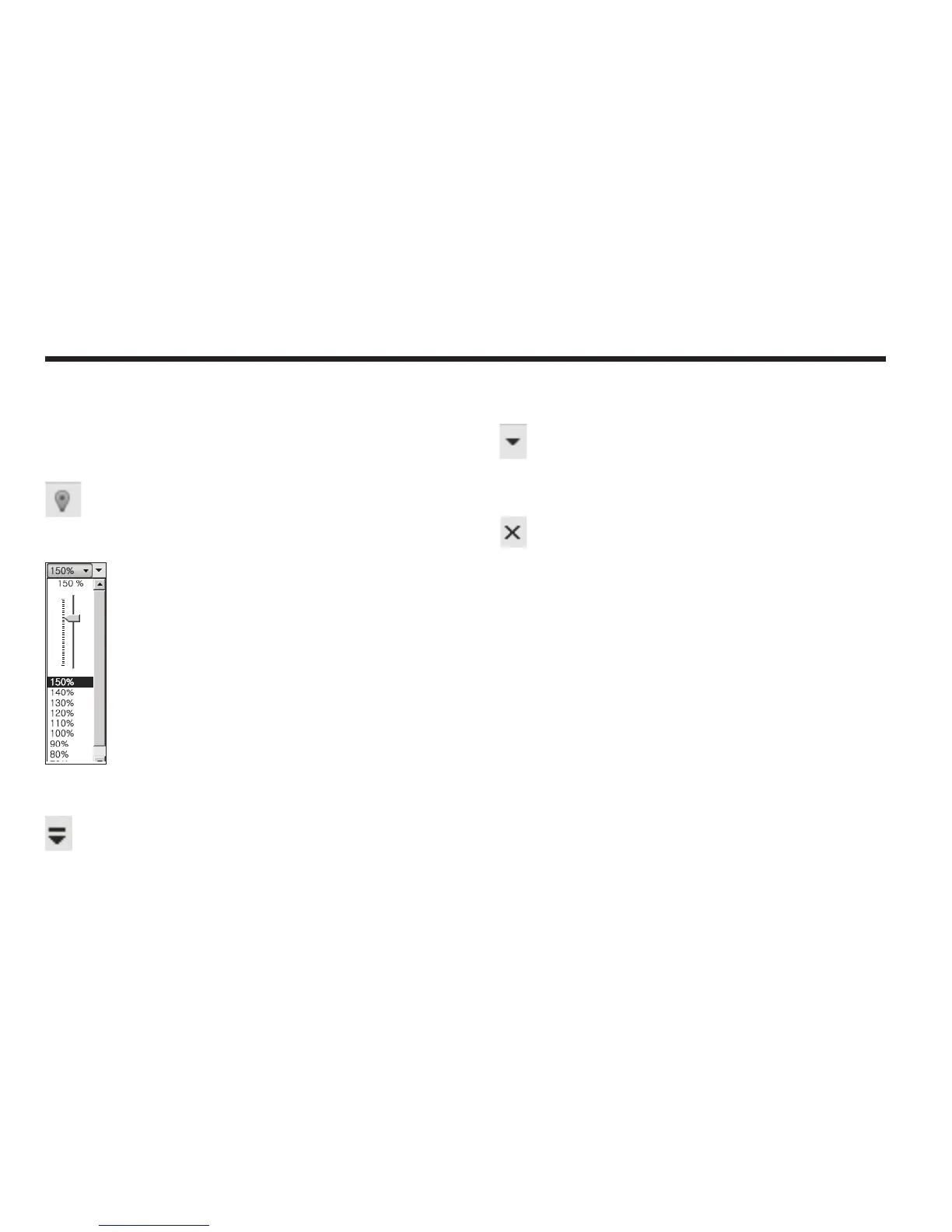

- Zoom Tool
Using the Zoom tool, you can easily select the magnication you want
by using Zoom In and Zoom Out bar, and Fit in Work View button.
Fit Work View Button: ts the current view to the Work View window
size. The button toggles between the t view and the previous view.
View Name Button: displays the current Work View name.
Close View Button: closes the current view.
Zoom In and Zoom Out Bar: zooms in and out to expand and reduce the
View to the desired size. (The zoom changes in 10% increments.)
View Switch Button: displays a list of the current views in a list.
Choosing one of these views will display the selected view in the Work
View window.

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
