Intellian i6P User Manual

9
Installation Kit
Contains the items required for securing the antenna unit and ACU to the vessel.
Other Components

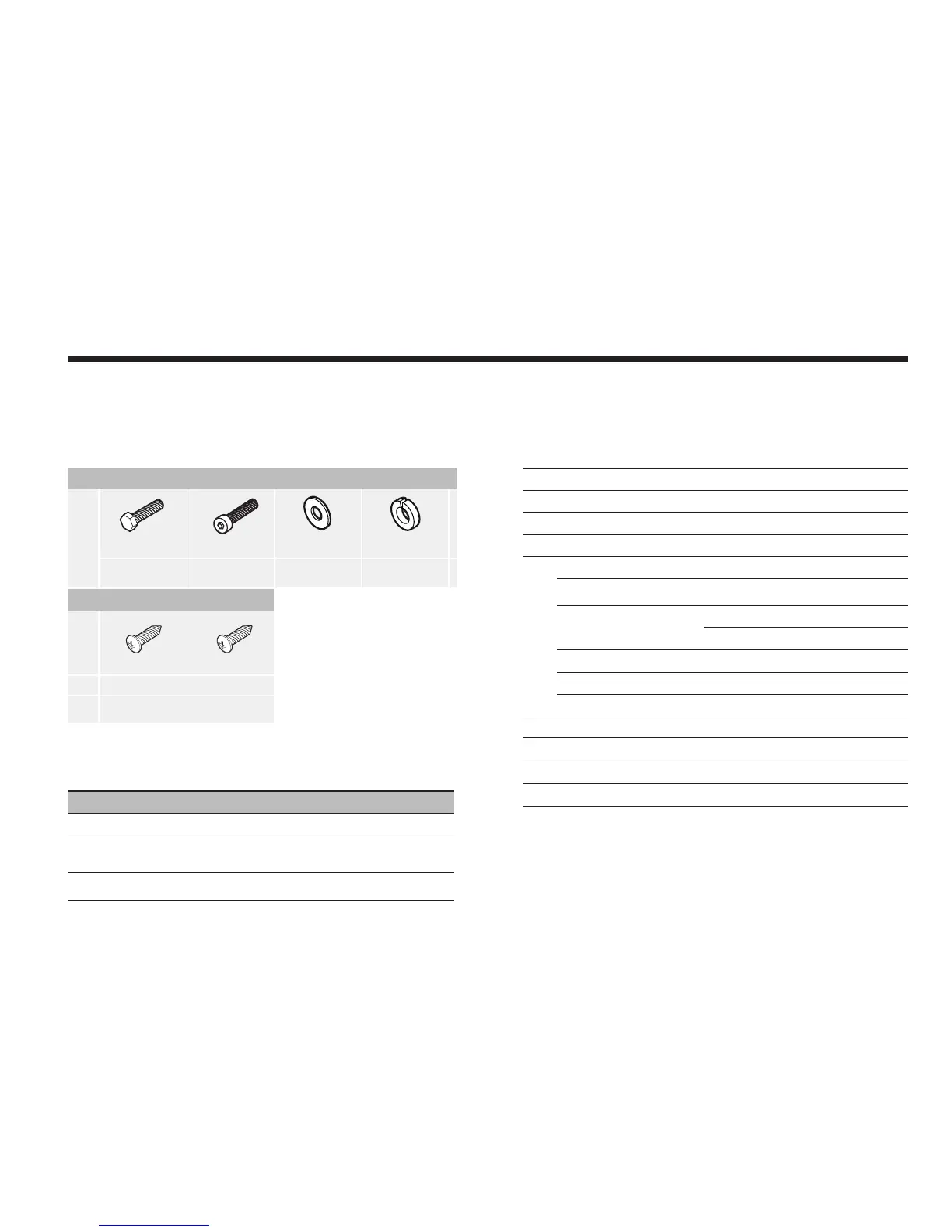

Figure 05 : List of the Supplied Parts
Figure 04 : Installation Bolt Kit
4 Power Cable 10m 1
5 PC Serial Cable 1.8m 1
6 NMEA Connector AK950-2 1
7 Power Connector AK950-3 1
8
Hex Bolt M8x50L 5
Hex Head Wrench Bolt
M6x35L 5
Self-Tapping Screw
ø4x16L 5
ø3x8L 5
Flat Washer M8 5
Spring Washer M8 5
Nut M8 5
9 Aptus CD - 1
10 Manual
- 1
11 Mounting Template
- 1
12 Quick Installation Guide
- 1
No Components Size Qty
1 ACU Bracket - 2
2 RG6
(Antenna - ACU RF Cable)
15m 1
3 RG6 (ACU - IRD Cable) 3m 1
Hex.Bolt
5
Hex.Head
Wrench Bolt
5
Flat Washer
5
Hex. Nut
5
Spring Washer
5
Antenna
Item
Qty
ACU
Item
Qty
Size
Self-Tapping Screw
5
(M4 X 16L)
Machine Screw
5
(M3 X 8L)

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
