v100 – Marine Satellite Communication System

Step 2.

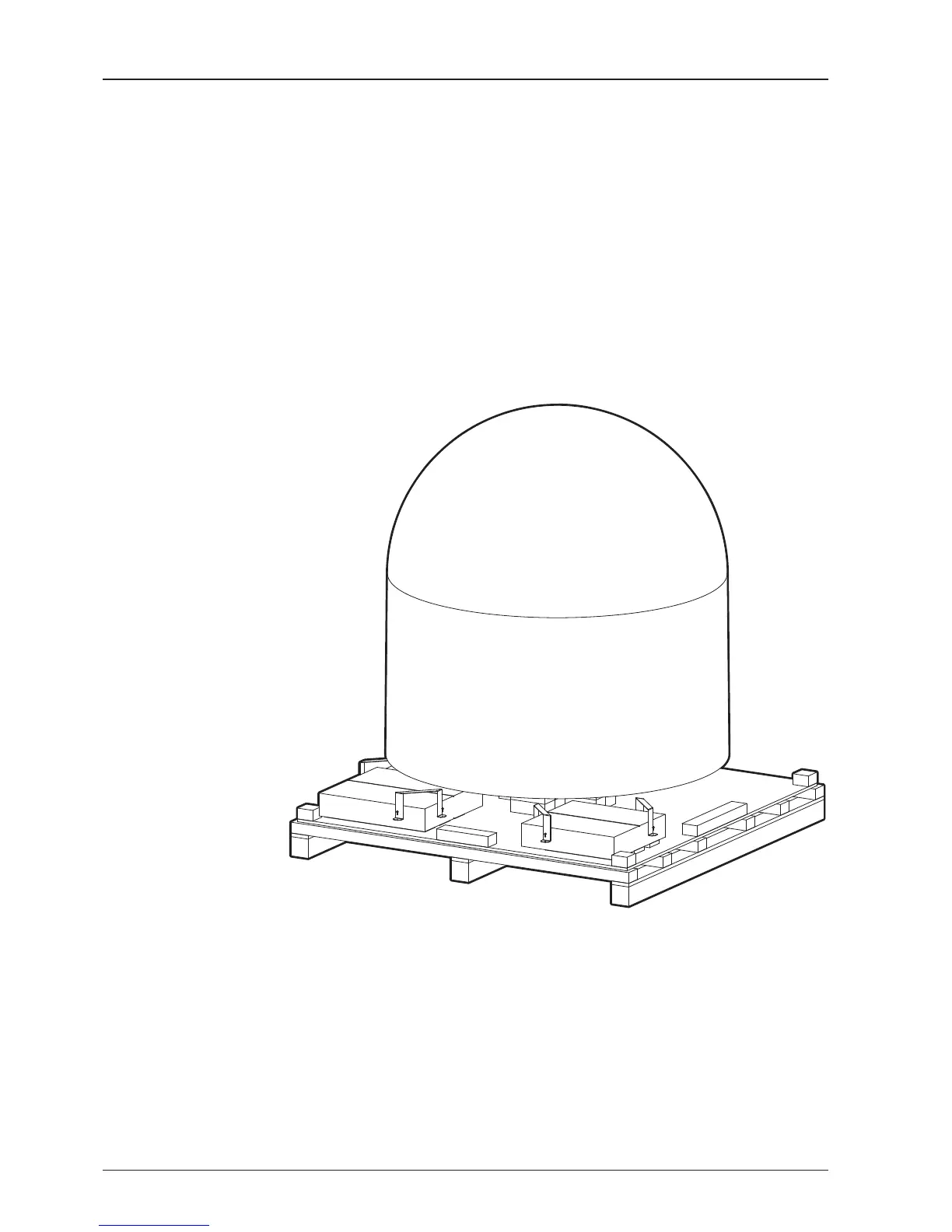

Remove 8 tapping screws that mount the ACU box and installation kit box to the pallet.
