v100 – Marine Satellite Communication System
26

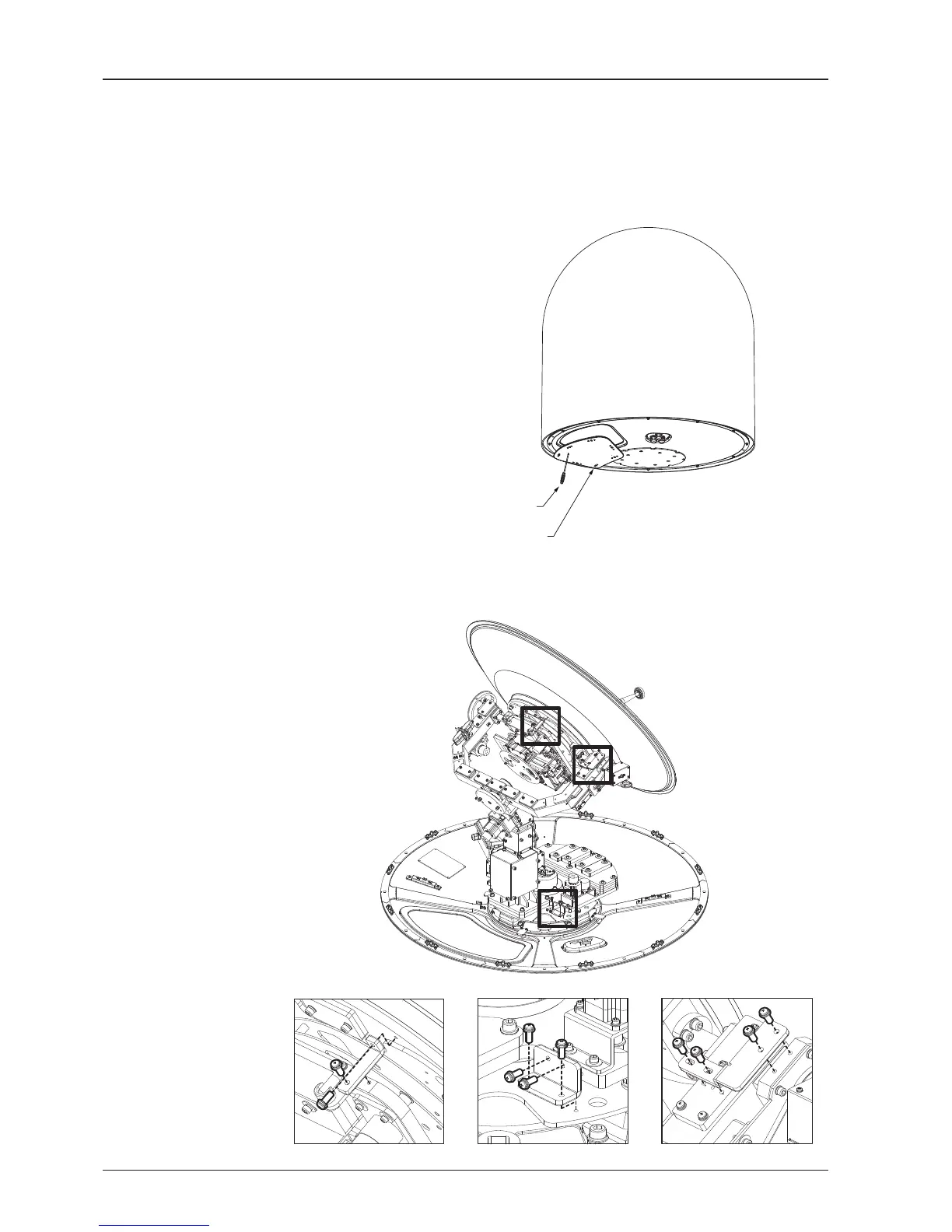

Step 5.
Open the top radome and remove the shipping restraints.
Step 4.
Open the radome hatch.
Flat-Head Screwdriver
(min 5mm)
Radome Hatch
A. Remove shipping brackets securing the Skew, AZ axis and EL axis.
1
2
3
1. Remove the Skew Shipping Bracket
2. Remove the AZ Shipping Bracket
3. Remove the EL Shipping Bracket
