36
V110 – Marine Satellite Communication System
GYRO TYPE BOW ADJUST MODEM PORT
▲ NMEA ▼ 000 ETHERNET
1
4
7
2
5
8
3
6
9
←
0
·

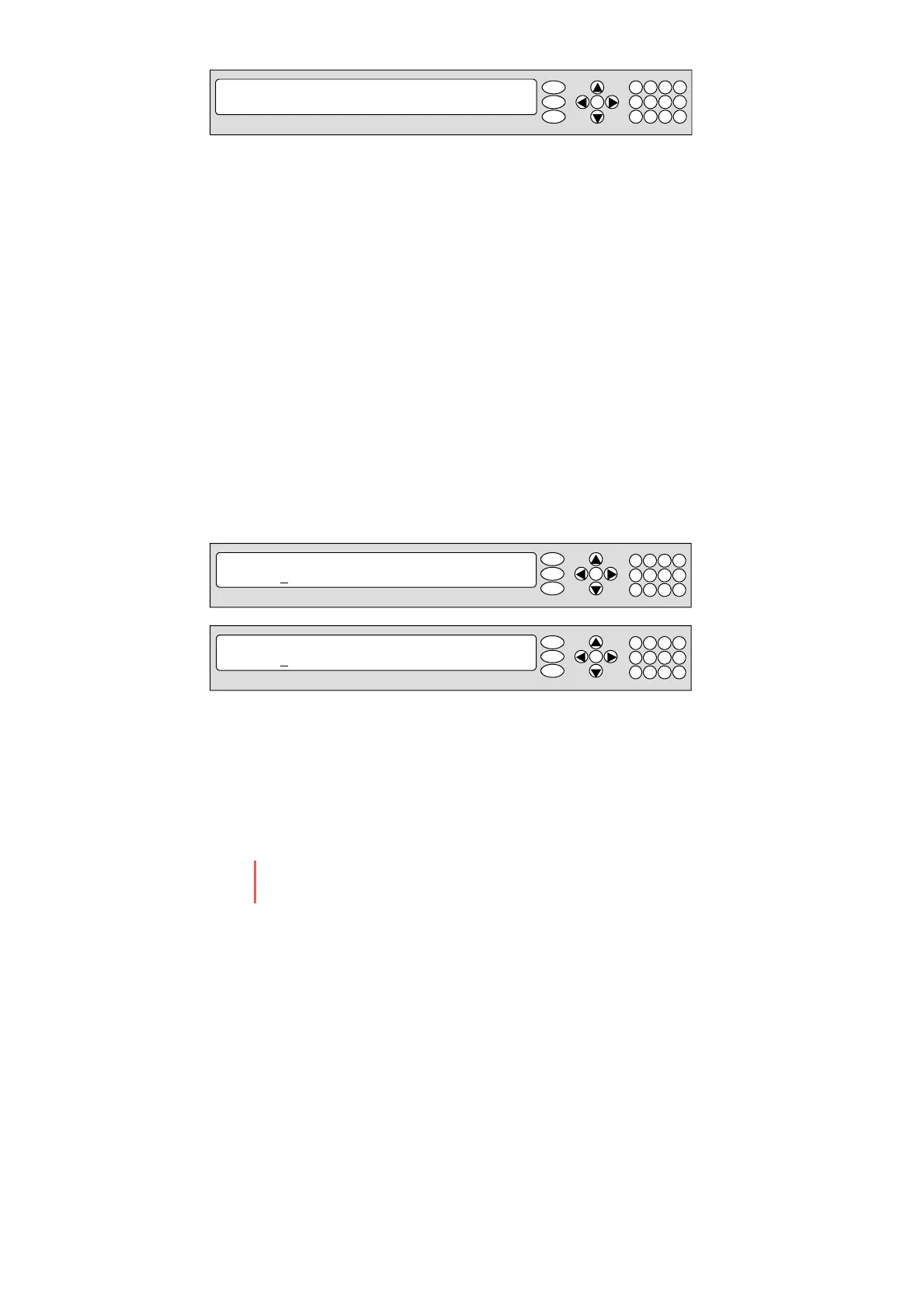

Antenna Control Unit
5. Set GYRO TYPE , BOW ADJUST and MODEM PORT
Gyro type is to determin e the type of gyro compass that is used on the ship.
Ensure that the Gyro Type1) is set correctly.
Bow adjust is to offset the angle difference between the antenna’s bow and
the ship’s bow. Variations from actual alignment can be compensated with this
parameter, so precise alignment is not required.
Modem port 2) is to determine the type of modem communication port on the antenna
con trol unit th at is used to interface with the satellite modem.
Press UP and DOWN arrow keys to select the correct parameter and press OK key
to set the parameter.
Gyro Type 1)
- None
-NMEA
- Synchro 1:1
- Synchro 36:1
- Synchro 90:1
- Synchro 360:1
Modem Port 2)
- Eth ernet
-RS422
-RS232
OK
M
R
F
6.Set the LNB local frequency for each voltage power. (13V+0KHz, 18V+0KHz,
13V+22KHz ,18V+22KHz)
Press LEFT and RIGHT arrow keys until the desired character is underscored
(selected). Press UP and DOWN arrow keys to increase or decrease the value.
Or press NUMBER keys to set the desired value directly.
13V+0KHz 18V+0KHZ
▲ 1
0000MHz ▼ 11300MHz
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
OK
M
R
F
13V+22KHz 18V+22KHz
▲ 1
1300MHz ▼ 09750MHz
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
OK
M
R
F
To Next Page
