46
V110 – Marine Satellite Communication System
ZONE 1 BLOCK
▲ ON ▼
1
4
7
2
5
8
3
6
9
←
0
·

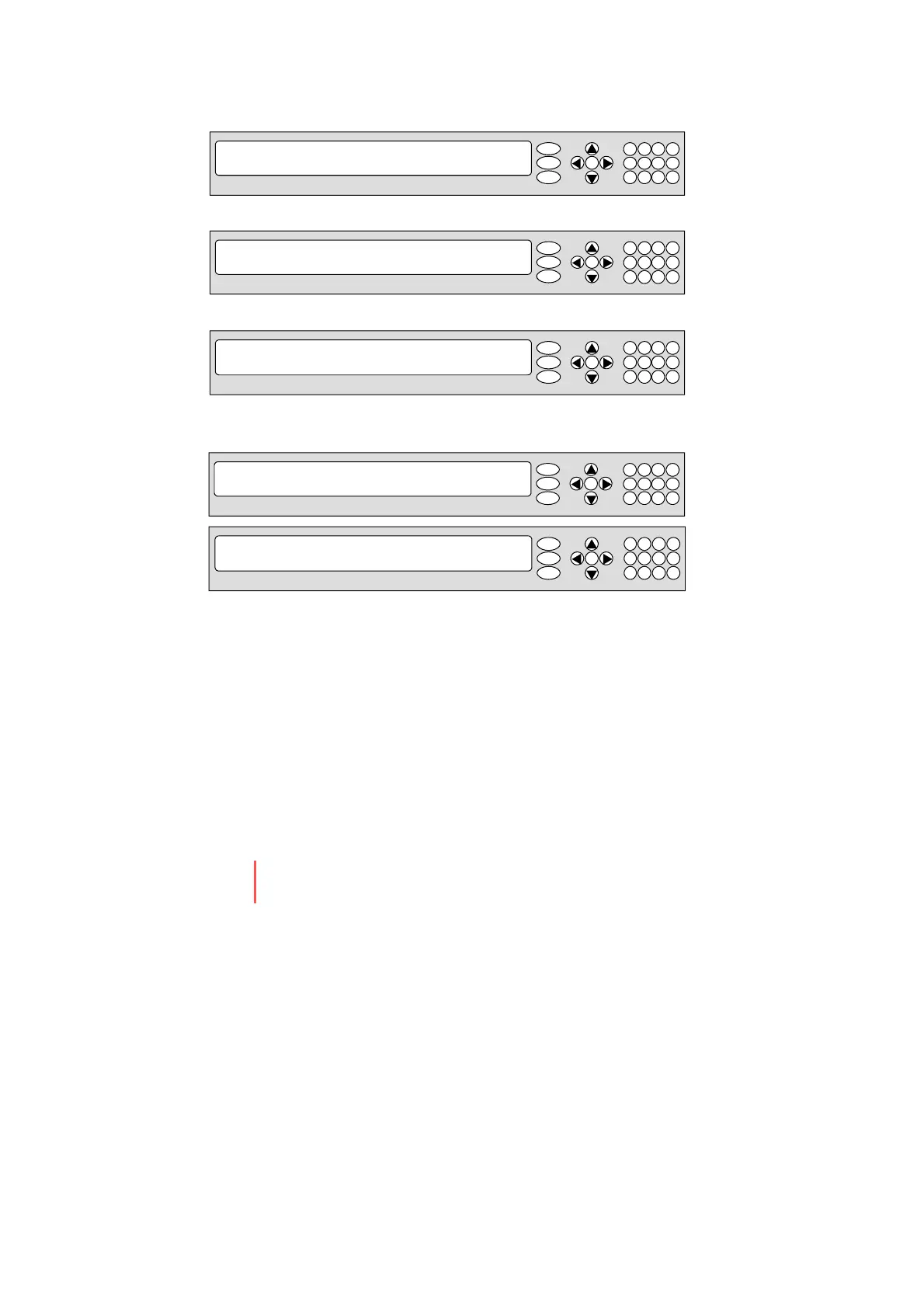

Antenna Control Unit
OK
M
R
F
4. Set ZONE 1 BLOCK
Press UP and DOWN arrow keys to select “ON” to use ZONE 1 BLOCK or “OFF” to n ot
use ZONE 1 BLOCK. Press OK key to use ZONE 1 BLOCK and set zone 1 block range.
Press RETURN key to select the parameter you wish to edit and press the
RETURN key again to save or abort and return to the main display.
Set the AZ.1 START, AZ. 1 END and EL.1 LIMIT when ZONE 1 BLOCK is ON.
This is the clockwise of the two points. AZ.1 START is where the relative
azimuth starts and AZ.1 END is where the relative azimuth ends (Range: 0- 360°).
EL.1 Limit is where the elevation starts (Range 0- 90°).
Press LEFT and RIGHT arrow keys until the desired character is underscored (selected).
Press UP and DOWN arrow keys to increase and decrease the selected character. Or
Press NUMBER keys to set the desired value directly. Press OK key to set the
parameter. Press RETURN key to select the parameter you wish to edit and press
RETURN key again to save or abort and return to the main display.
◀
→AZ.1 START AZ.1 END EL.1 LIMIT
▶
000 000 90
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
OK
M
R
F
Setting Block Zones
Up to 5 block or radiation hazard zones can be programmed with
relative azimuth and elevation sectors.
3. Press arrow keys to move cursor to BLOCK ZONE and press OK key to enter
BLOCK ZONE menu. Up to 5 block zones is allowed to be programmed.
◀
→+BLOCK ZONE +DIAGONOSIS
▶
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Cont rol Unit
SETUP MODE ?
→ YES NO
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Cont rol Unit
1. Press LEFT key to move cursor to YES and press OK key to enter setup mode.
→+ANTENNA +SATELLITE
+SYSTEM +INSTALLATION
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Cont rol Unit
2. Press OK key to enter ANTENNA menu.
OK
M
R
F
OK
M
R
F
OK
M
R
F
To Next Page
