Communication Information
Antenna Status
Search 2: The search range corresponds to the Search Pattern 2. Once
the signal is located, the antenna will enter to Search 3 mode
Search 3: The antenna is detecting the satellite signal which is above
current tracking level threshold. The search range corresponds to the
Search Pattern 3. Once the signal is located, the antenna will enter to
Tracking mode.
Tracking: Antenna is tracking the selected satellite.
Initialize: Antenna or the ACU is initializing.
Setup: Antenna is in setup mode.
Comm: Antenna is able to be communicated.

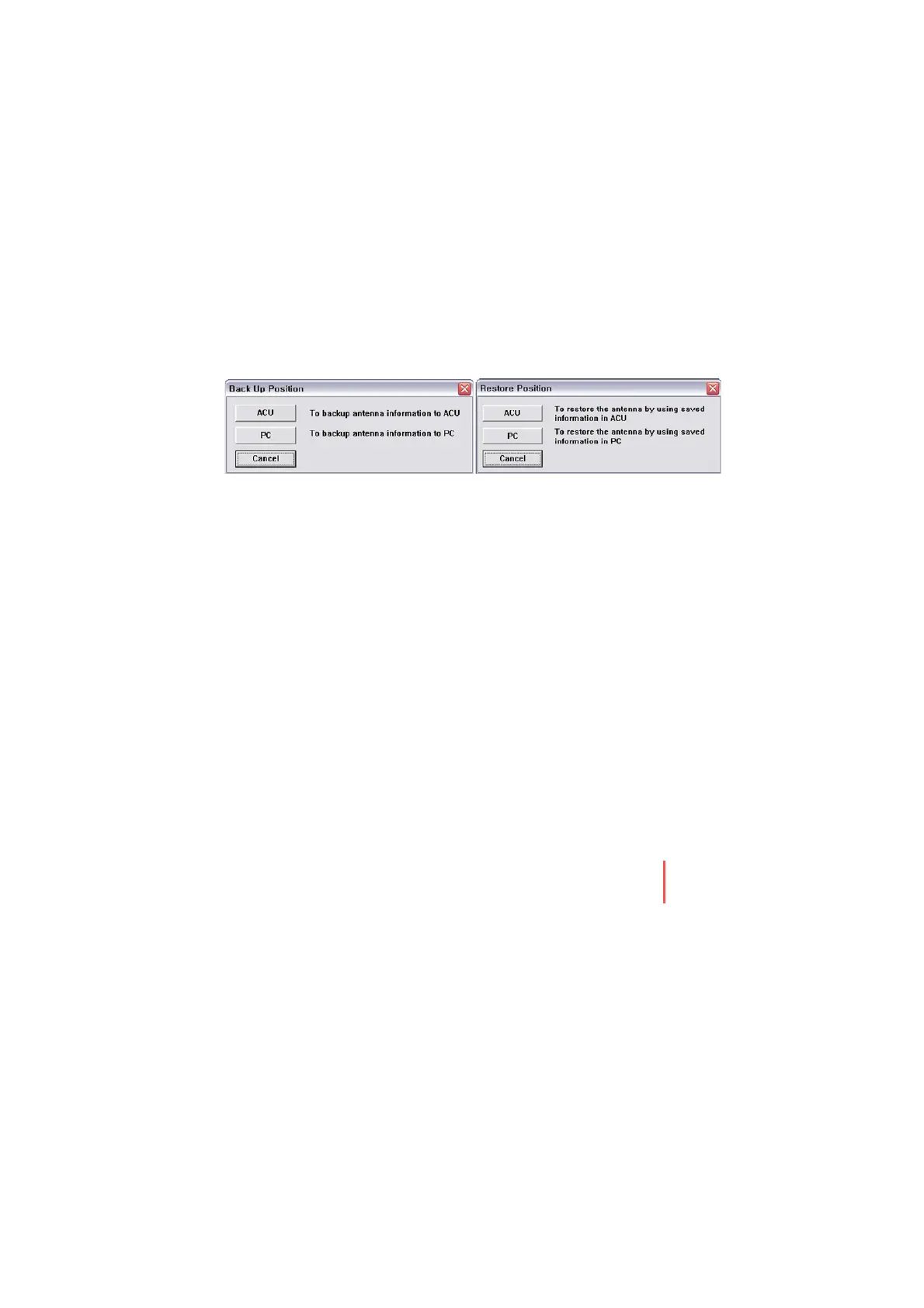

In the “Setup mode”, the “Back Up Position” or “Restore Position”
message will pop up if the “Backup” or “Restore” button is pressed.
The “Backup File (*.ibf)” will be generated on the PC if the “Back Up to
PC” button is pressed. In addition, you can also restore the settings by
using a saved “backup” file on the PC. These functions are only applied
to ACU 1.07 version or above.
Satellite Modem and Antenna Status
TX Enable: TX function is being enabled.
Enable Mode: Enable mode is activated.
Blockage: Antenna is facing the pre-defined block zones.
Pointing: Antenna is pointing to the target satellite.
Modem Lock: Satellite modem is sending a logic input to the ACU to
identify when the antenna tracks on the correct satellite.
LNB Rotate: LNB is rotating.
Other Information:
Local Freq: To display LNB local frequency.
PC Controller Program
