Mixed Wiring
By making clever use of both series and parallel
wiring, it is often possible to wire a larger number of
speakers to build a network with 4Ω total
impedance.

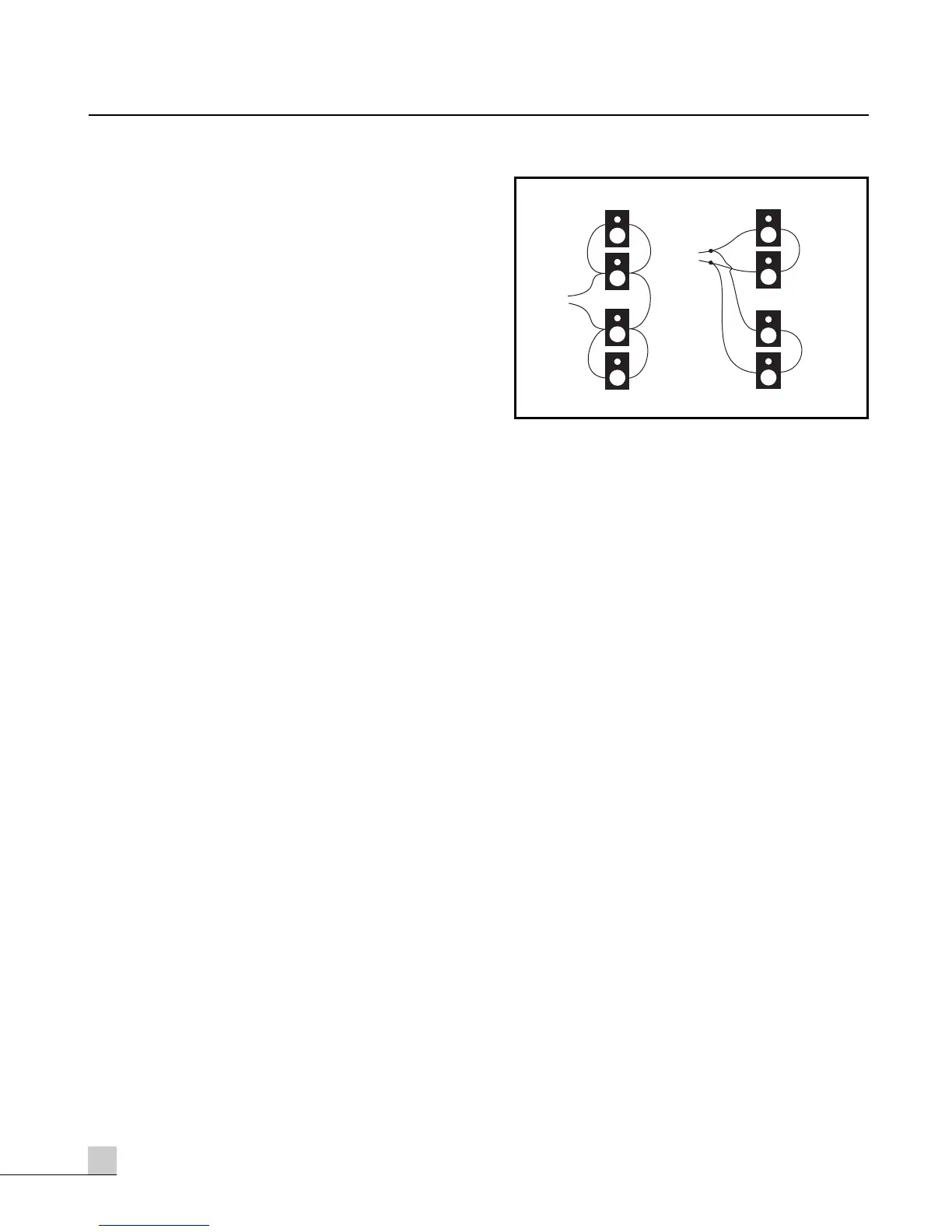

If you want to use four identical speakers per
channel, you can use one of the sample networks
shown on the right. Both networks are wired so that
the resulting total impedance equals the individual
speaker impedance.
If, for example, 4Ω speakers are used, the total impedance will also be 4Ω, which perfectly matches the EMI-
300 amplifiers.
-+
-+
+-
-+
-+
+-
+-
+
-
+
-
+-
