EMI-300
7-CHANNEL 2 X 150W MIXING AMPLIFIER

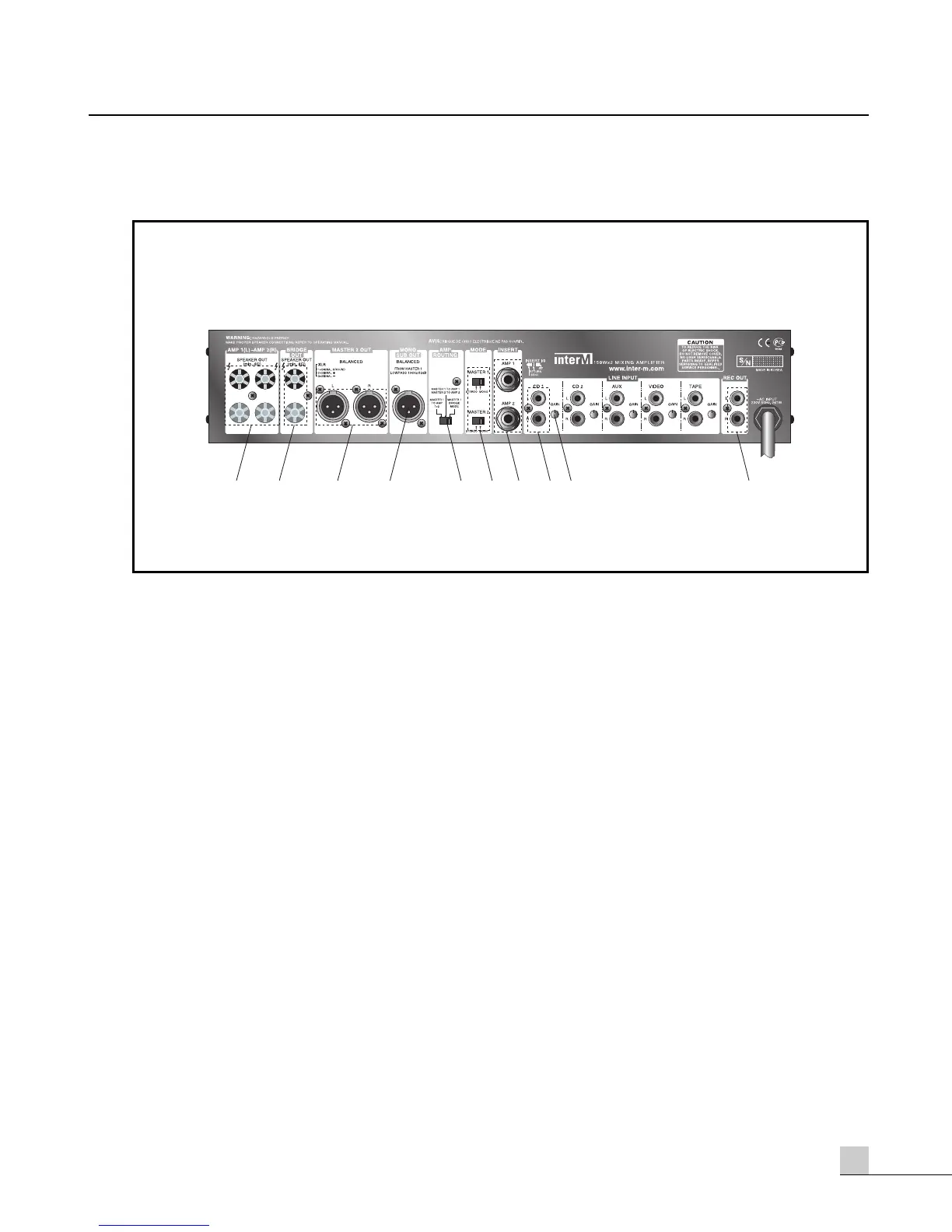

Rear Panel
Rear Panel
18. AMP1/AMP2 SPEAKER OUT
The EMI-300 contains a two-channel power amp. The two channels can be used independently to supply
150W+150W, or bridged to provide 300W output power.
If the channels are used independently, two speakers may be connected to the AMP 1 and AMP 2 outputs.
When used in bridged mode, connect speakers only to the Bridged Speaker Out (19).
19. BRIDGED SPEAKER OUT
If the channels are used in Bridged mode, a single speaker may be connected to the BRIDGED SPEAKER OUT
connectors only. When connecting a speaker to the BRIDGED SPEAKER OUT, use an 8Ω to 16Ω speaker (do
not connect a speaker that is less than 8Ω). In this case, be careful not to connect the speaker to the AMP 1
or AMP 2 outputs.
20. MASTER 2 OUT
The signal at this output is identical to the signal sent to AMP 1 and AMP 2 when the EMI-300 is in stereo
mode. Connect these balanced +4dB XLR outputs to an additional power amp or powered speakers for
additional power or monitoring capability, or to a two-track tape recorder. The output level of MASTER 2
OUT is controlled by the Master 2 Volume Control (8).
21. MONO SUB OUT
The MONO SUB OUT signal is a mono version of the signal controlled by Master 1, and is sent through a
lowpass filter with a 100Hz cutoff at 12dB/octave. Connect this balanced +4dB XLR output to your powered
subwoofer speaker. The MONO SUB OUT level is adjusted using the Master 1 Volume Control.
