Interacoustics AA222 User Manual

AA222 Instructions for Use – US Page 83

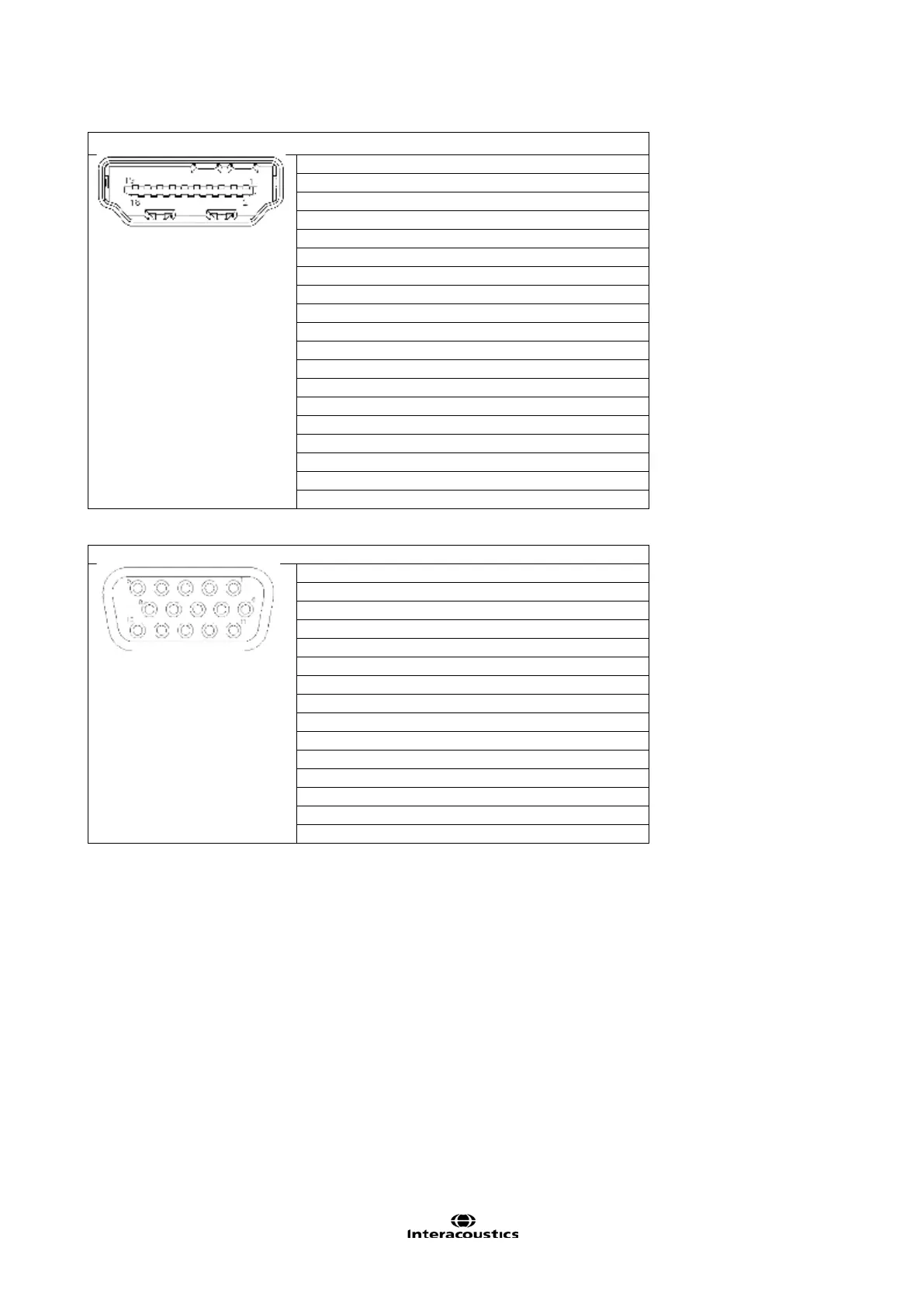

HDMI
1. TMDS Data2+
2. TMDS Data2 Shield
3. TMDS Data2-
4. TMDS Data1+
5. TMDS Data1 Shield
6. TMDS Data1-
7. TMDS Data0+
8. TMDS Data0 Shield
9. TMDS Data0-
10. TMDS Data Clock+
11. TMDS Data ClockShield
12. TMDS Data Clock-
13. CEC
14. Reversed
15. SCL
16. SDA
17. DDC/CEC/HEC Ground
18. +5V
19. Hot Plug Detect
Probe system
1. DSP I2C Interrupt
2. GND
3. IPSI out
4. GND contra
5. GND probe mic.
6. DSP I2C SCLK
7. GND
8. GND ipsi
9. Probe tone out
10. Mic – in
11. DSP I2C data
12. +5V probe
13. Contra out
14. GND probe tone
15. Mic + in
