Intercomp PT300 - Cables; 4 Scale Interconnect

PT300 Users Manual
Rev E, April 1999
12
Cables
The following diagrams show the different types of cables that can be used with PT 300
scales. Cables can be ordered consisting of 2-6 connectors so you can match the
number of scales your system has. The following diagrams illustrate a 4 scale system.
4 Scale Interconnect

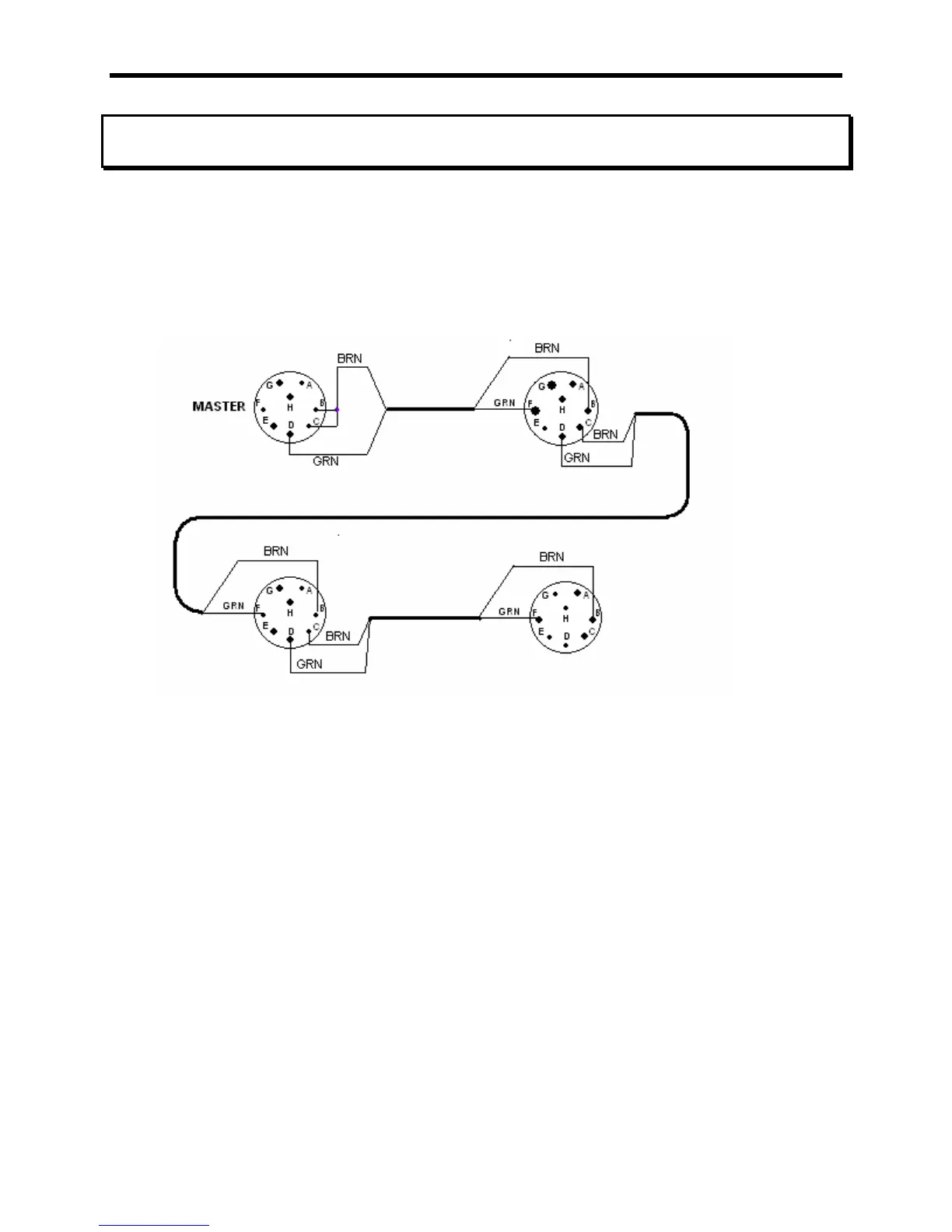

Cabling for 4 scales and a printer with the PT 300 supplying the 20 mA current.
