Intercomp PT300 - Current Loop Output to Display; PT Connector Pin Designations

PT300 Users Manual
Rev E, April 1999
16

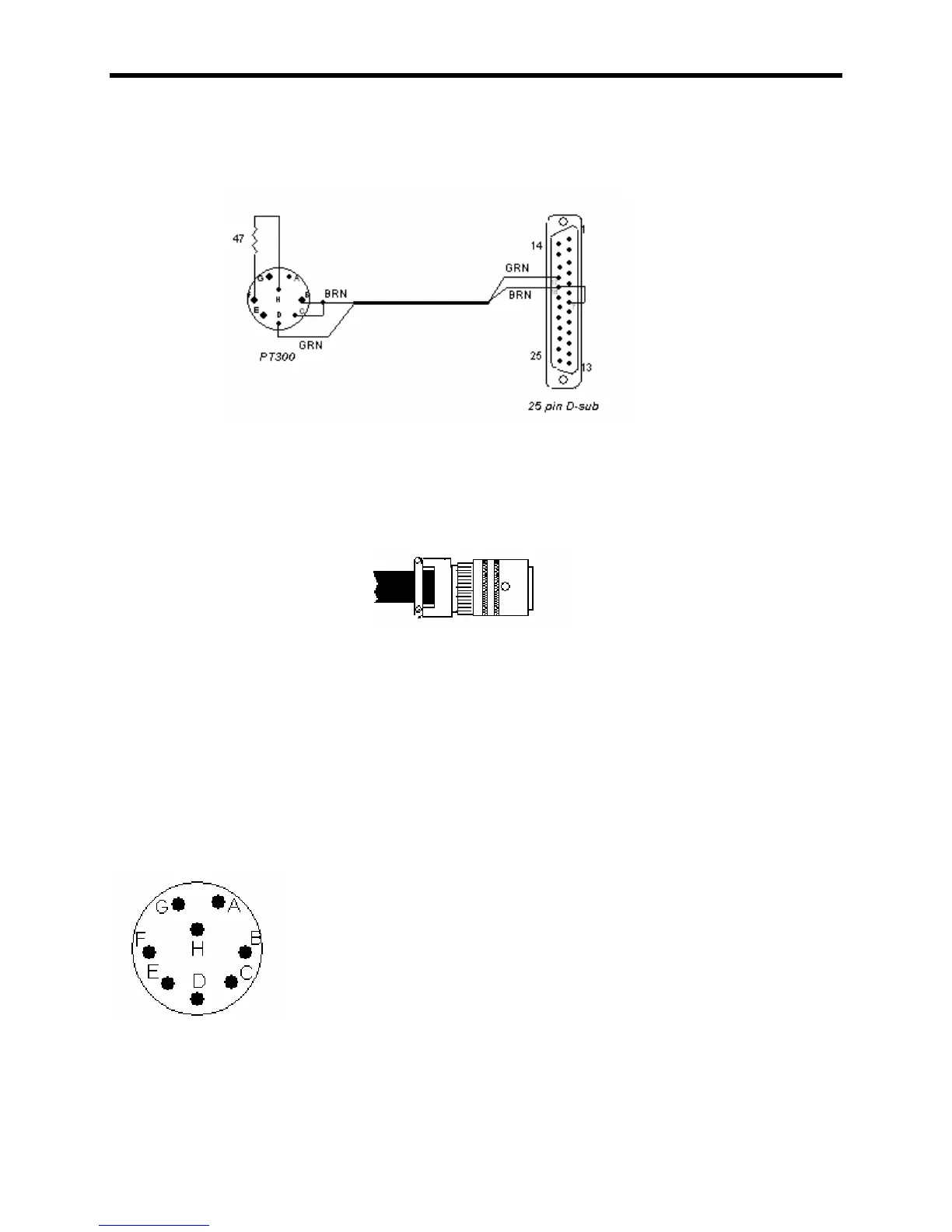

Current Loop Output to an Intercomp S400 Display:
PT Connector Pin Designations:
PT Connector
A: Reserved for future use.
B: - Input
C: Ground (- Charging Voltage)
D: - Output
E: +Charging Voltage
F: + Input
G: Reserved for future use.
H: + Output
