USB Port
The USB port is located on the back of the smart dock.

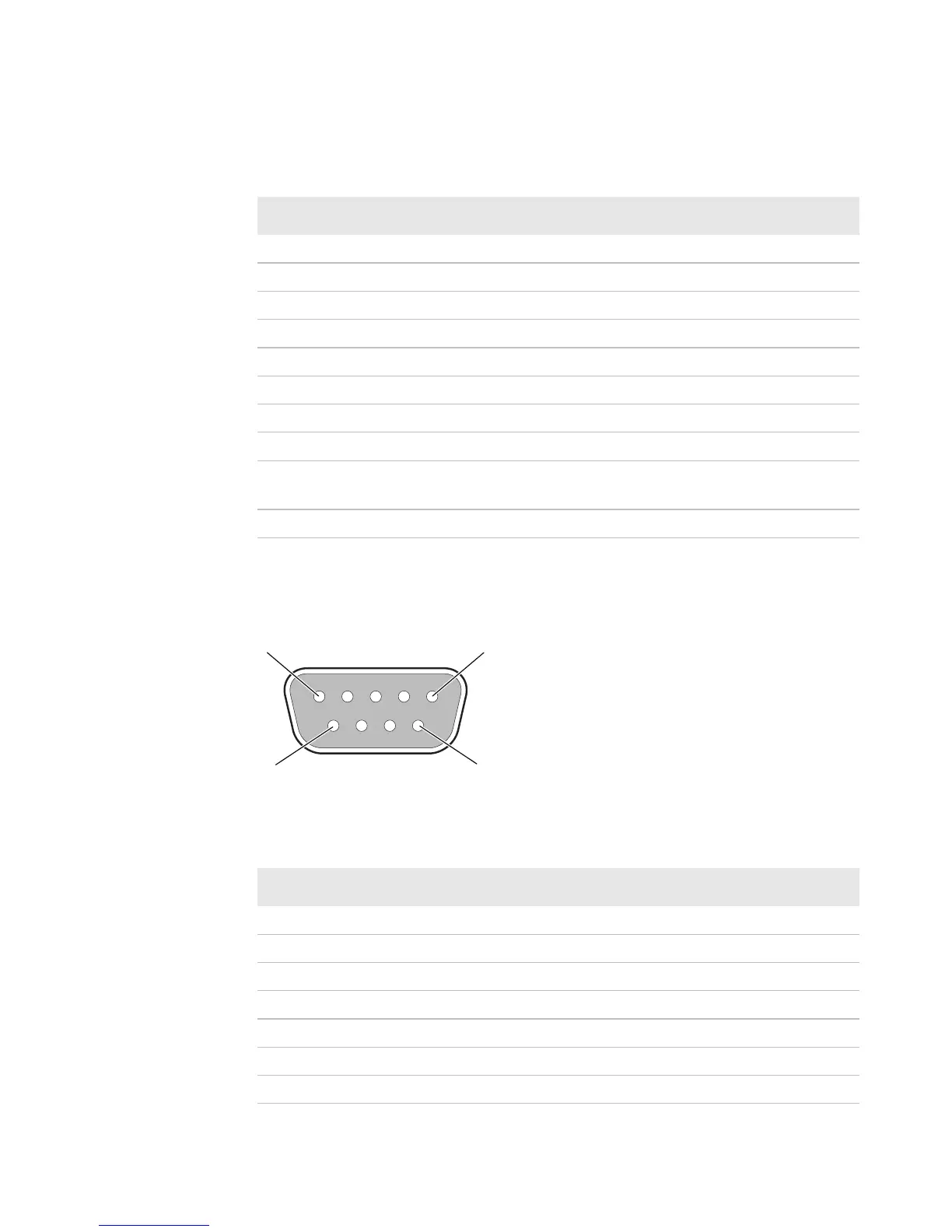

COM 1 and COM 2 Port Pin Assignments
Pin Signal Description
1 DCD Data carrier detect (input)
2 RXD Receive data (input)
3 TXD Transmit data (output)
4 DTR Data terminal ready (output)
5 GND Signal/power ground
6DSRData set ready (input)
7 RTS Request to send (output)
8 CTS Clear to send (input)
9 +5 VDC or RI Bar code scanner power (500 mA max) or
Ring indicator (input)
Shell CGND Chassis ground
USB Port
Pin Signal Description
1 GND Common ground
2 USBC_D+ USB client data signal
3 USBC_D- USN client data signal
4 USB_H1_PWR USB host 1 (5 V output power)
5 GND Common ground
6 GND Common ground
7 USB_H1_D+ USB host 1 data signal
5
9
6
1
