Optimizing Printer Performance
5-7
5
Adjusting the Label Mark Sensor
3XXXU.040
Label mark
sensor
(The label mark sensor
can be positioned no
more than 1" from the
inboard edge.)

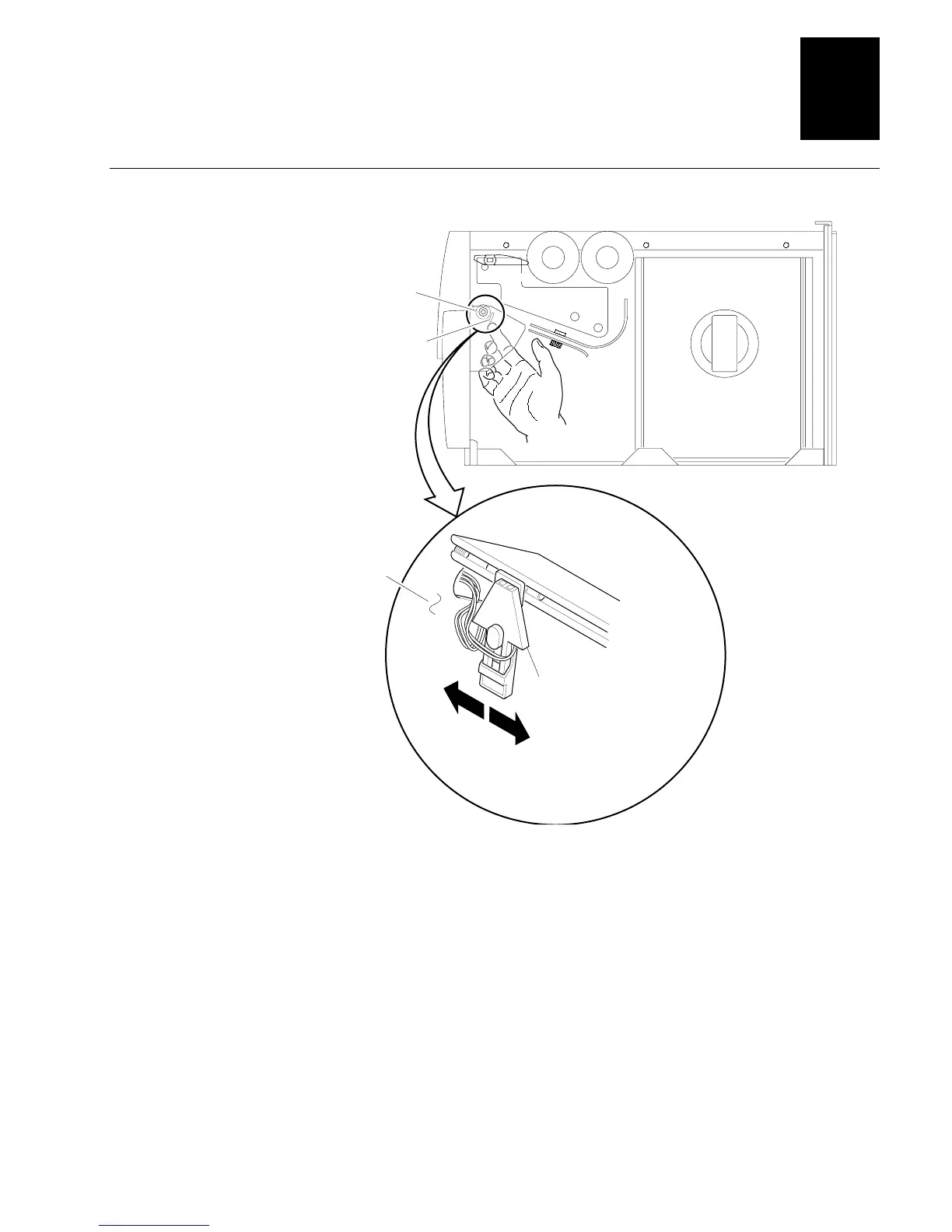

Locate the label mark sensor
behind the platen roller near
the inboard edge of the printer.
Use your index finger to adjust
the label mark sensor.
Platen
roller
Inboard edge
of printer.
The platen roller
is not shown
for clarity only.
