Intermec PM43 User Manual

Chapter 6 — Maintain the Printer
PM23c, PM43, and PM43c Mid-Range Printer User Manual 103

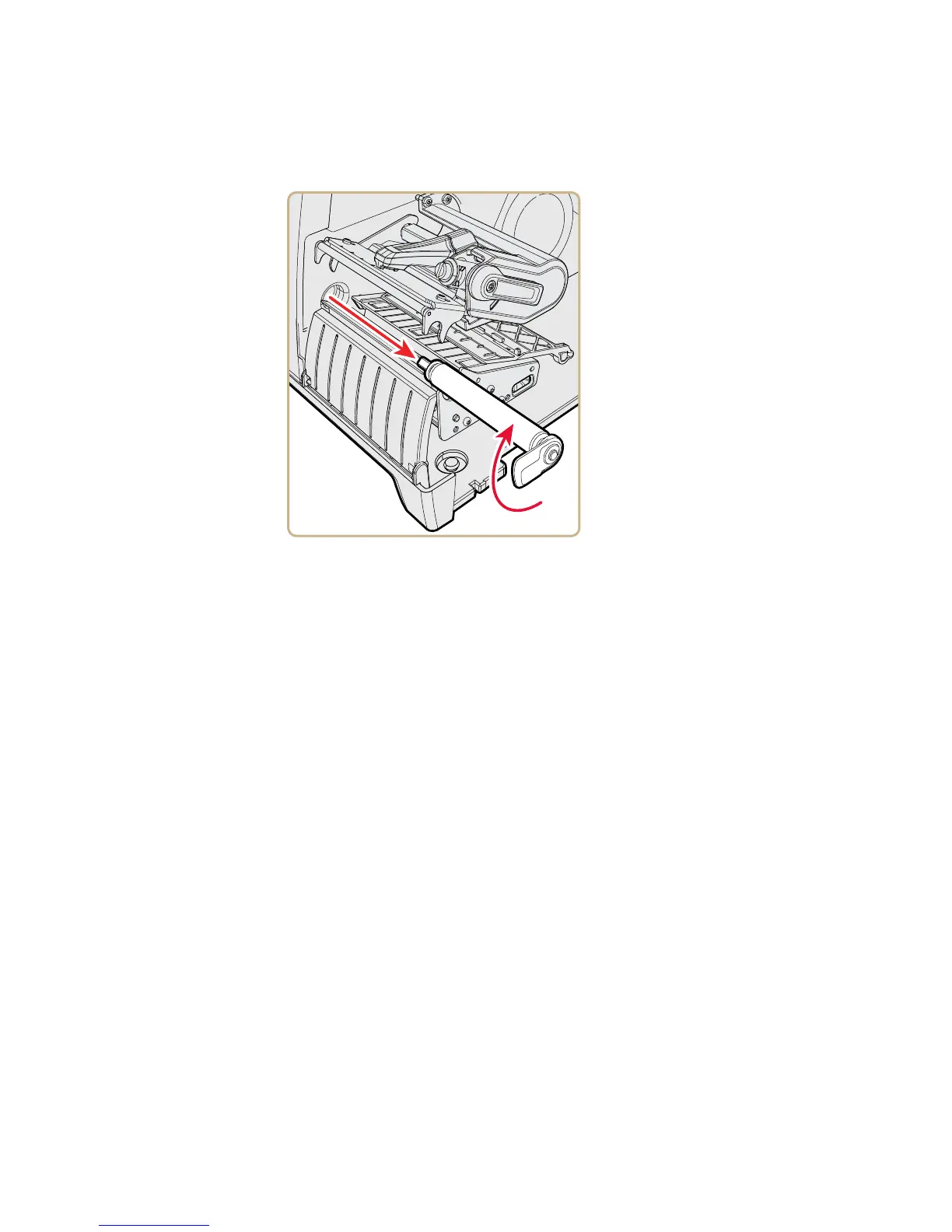

5 Rotate the platen roller latch clockwise to detach it from the
printer and pull the platen roller away from the printer.
6 Insert the new platen roller into the printer and secure it by turning
the latch counterclockwise.
7 Reload media and turn the printhead lift lever clockwise to lower it.
8 Close the media cover, reconnect power, and turn on the printer.
How to Adjust the Printer
You may need to adjust your printer to accommodate how you are
printing or to improve printer performance. You can make these
adjustments on the printer:
• Ribbon wrinkling
• Printhead balance
• Printhead pressure
• Label taken sensor
• Label gap sensor and label mark sensor

Intermec PM43 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	108 mm
Ethernet LAN	Yes
Optional connectivity	Bluetooth, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Certification	RoHS, CE (EN55022 Class A), FCC Class A, UL/cUL, D Mark and CCC
Internal memory	128 MB
Built-in barcodes	1D, 2D
Image formats supported	BMP, GIF, PCX, PNG
Page description languages	DP, DPL, IPL, XML, ZPL II
Display	LCD
Control type	Touch
Product color	Gray
PC connection	RS-232
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
AC input frequency	45 - 65 Hz
Power consumption (standby)	9 W
Media thickness	3 - 10.4 mm
Maximum label width	114 mm
Maximum roll diameter	80 mm
Languages support	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, KOR, POR, RUS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	483.54 mm
Width	284.2 mm
Height	294.61 mm
Weight	15820 g
