Intermec PM43 User Manual

Chapter 1 — About the Printer
PM23c, PM43, and PM43c Mid-Range Printer User Manual 9
About the Full Touch Display Front Panel
The full touch display front panel contains a 3.5-inch touch panel and
a keypad for entering information or navigating through the user
interface.

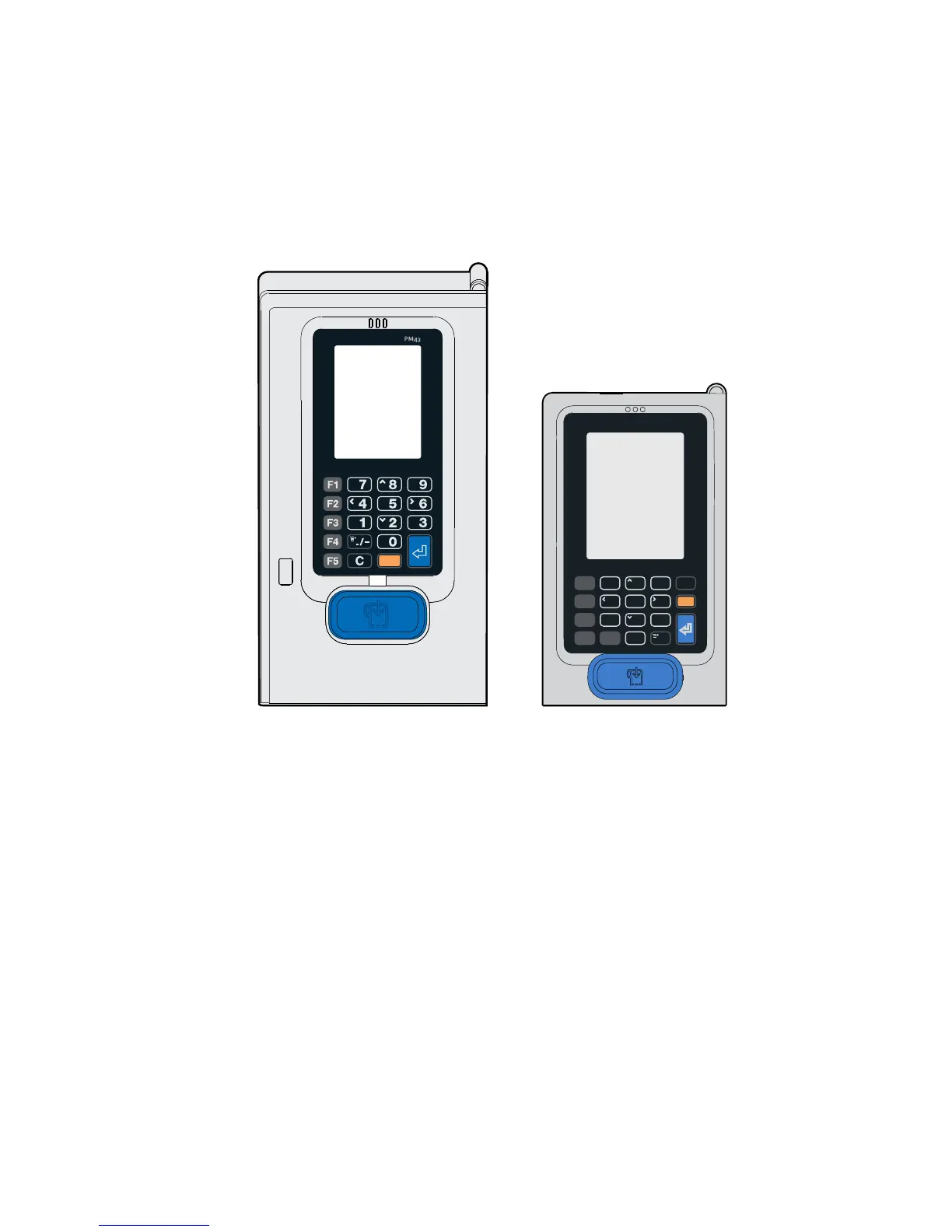

The Full Touch Display Front Panel on a PM43 and PM23c Printer
The full touch screen is a resistive touch panel that supports touch
input with fingers, gloved hands, or a stylus. You only need to touch
the screen once to make a selection.
Use the keys on the front panel to enter information into the screen or
to navigate the Main Menu if the touch screen is not working properly.
All of the full touch display printers contain these keys on the front
panel: 0 to 9, Enter, . (period), - (minus), Clear, F1 to F5, and an Orange
(Shift) key.
789
456
12
0
3
C
F1
F2
F3
F4 F5
-
./
1.
D

Intermec PM43 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	108 mm
Ethernet LAN	Yes
Optional connectivity	Bluetooth, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Certification	RoHS, CE (EN55022 Class A), FCC Class A, UL/cUL, D Mark and CCC
Internal memory	128 MB
Built-in barcodes	1D, 2D
Image formats supported	BMP, GIF, PCX, PNG
Page description languages	DP, DPL, IPL, XML, ZPL II
Display	LCD
Control type	Touch
Product color	Gray
PC connection	RS-232
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
AC input frequency	45 - 65 Hz
Power consumption (standby)	9 W
Media thickness	3 - 10.4 mm
Maximum label width	114 mm
Maximum roll diameter	80 mm
Languages support	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, KOR, POR, RUS
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	483.54 mm
Width	284.2 mm
Height	294.61 mm
Weight	15820 g
