Intermec SR61T1D

Chapter 1 — Introducing the SR61T
4 SR61T Tethered Scanner User’s Guide
Connecting the Interface Cable
The cable you use depends on the interface and host device. However
all cables are connected to the scanner in the same way.

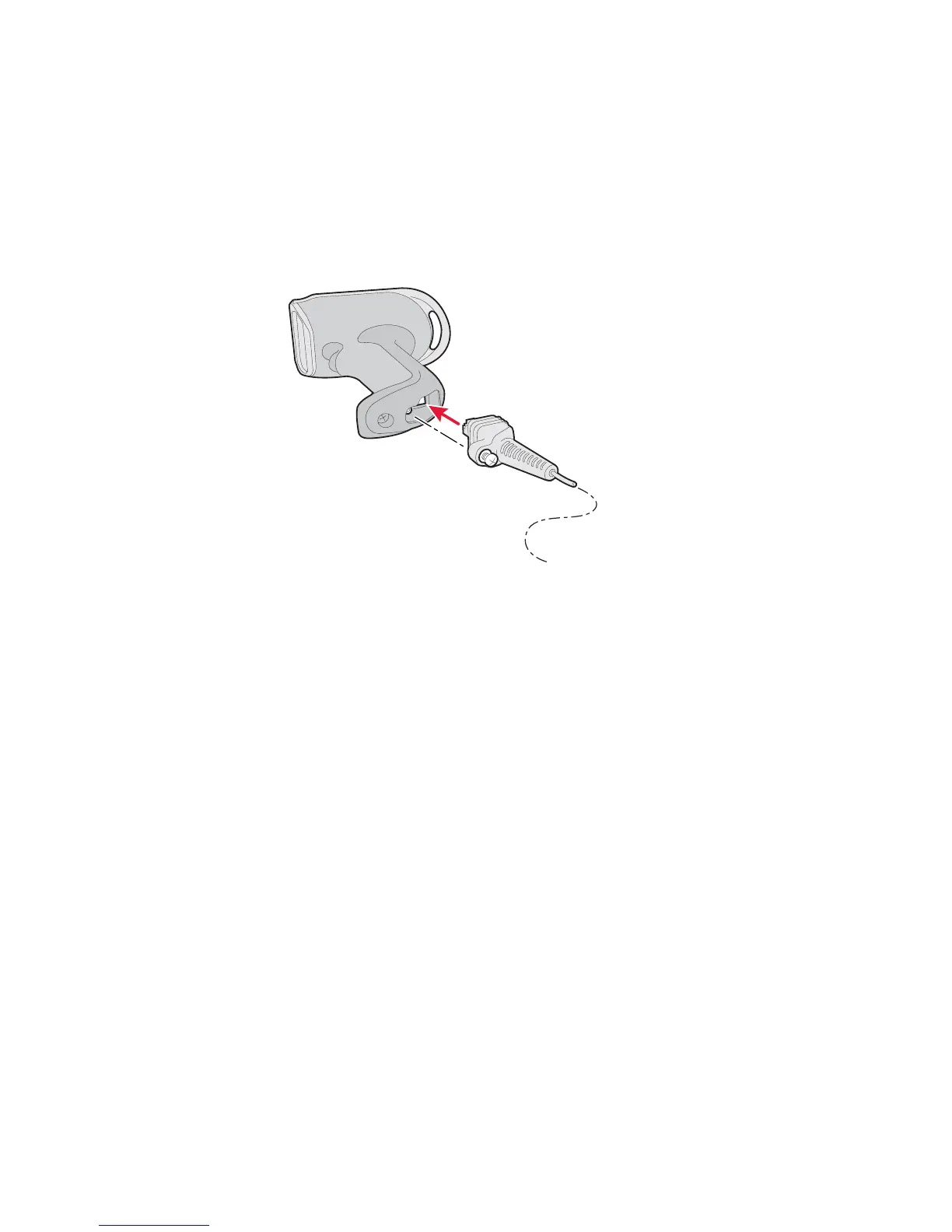

1 Insert cable. Press firmly until inserted all the way.
2 Tighten the screw on the cable to secure it.
Removing the Interface Cable
To remove the cable follow these steps:
1 Loosen the screw on the cable.
2 Pull out the cable.
