Chapter 5 — Troubleshooting and Maintaining the SR61T
SR61T Tethered Scanner User’s Guide
43
7

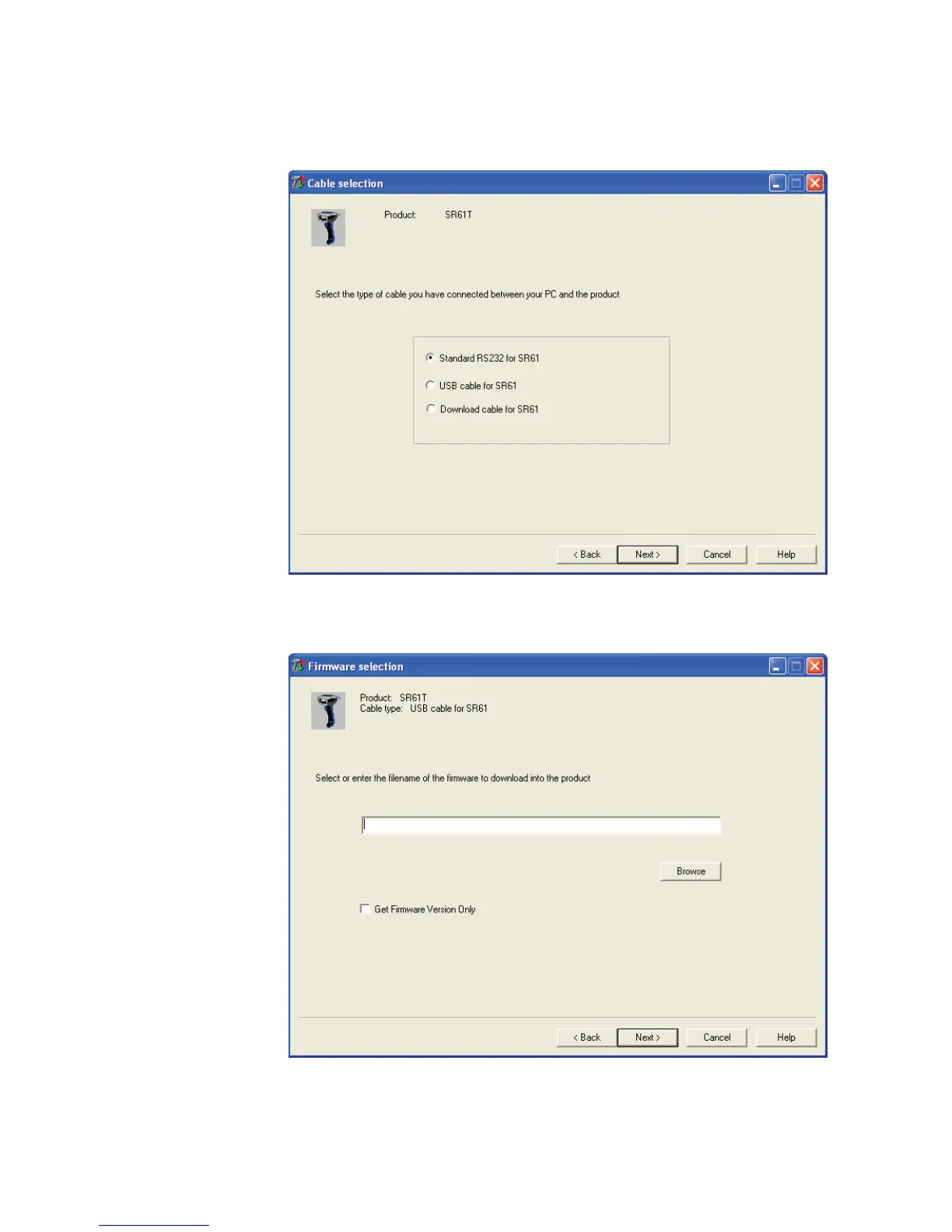

Select the cable and click
Ne
x
t
.
8
Use
Browse
to bro
wse to the location of the f
irmwa
re upgrade f
ile
(.bin), select the f
ile, and
click
Open
. Click
Nex
t
.
54
56
