FILTER PUMP STATIONARY MOUNTING OPTION
Flip outward the two mounting hole flaps located under the pump base. These holes are
provided because various country’s regulations, especially in the European community,
require the filter pump to be secured to the ground or to a base in a permanent upright
position.
The filter pump can be mounted on a cement base or onto a wooden structure to prevent

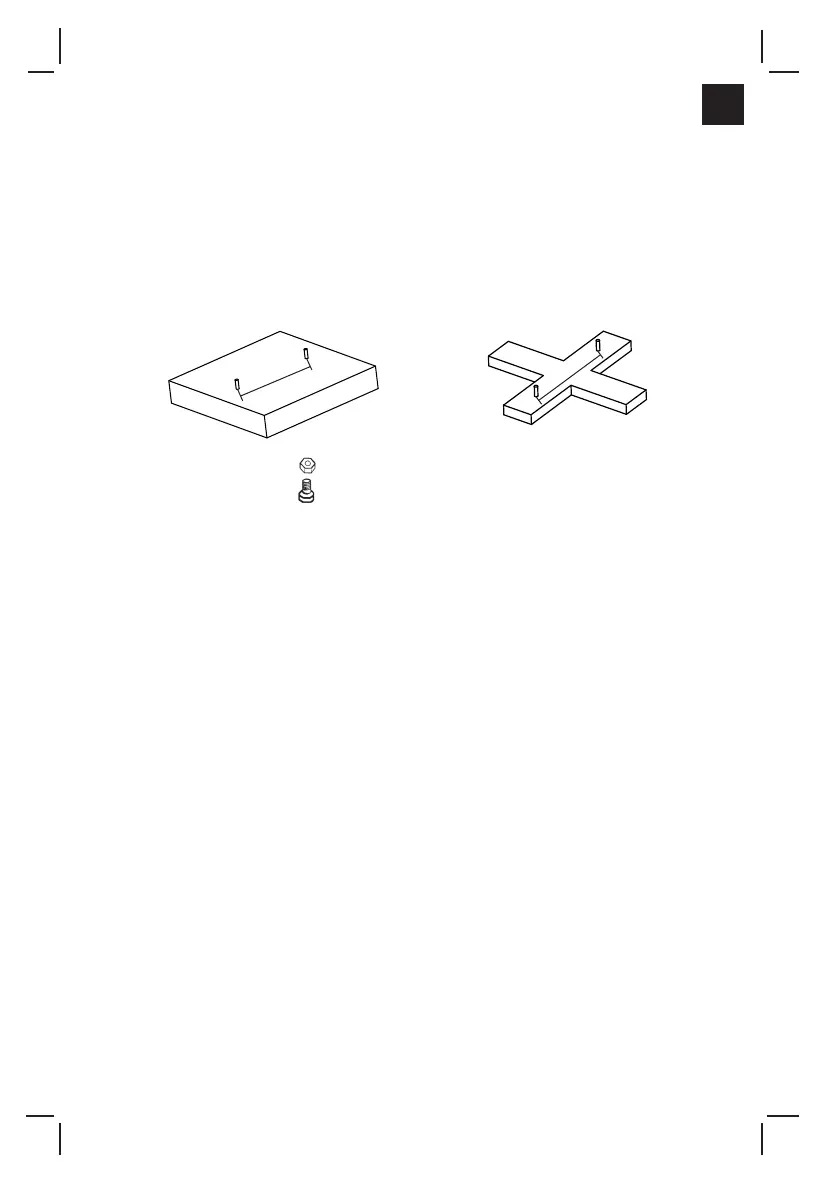

accidental falling over. Total assembly must exceed 18kg. The drawings on the following
show two possible ways of upright mounting. Lock nuts and bolts are not included.
-- (2) x M6 HEXAGON LOCK-NUTS
-- (2) x M6 HEXAGON HEAD BOLTS
It is recommended that the lter cartridge be replaced at least every 2 weeks. Regularly
monitor the lter clogging level.
1.
 Makesurelterpumpisnotoperating.Disconnectlinecord.
2.
To prevent water from escaping the pool, unscrew the pool inlet nozzle
(10)
and strainer
grid
(11)
from the strainer connectors and insert the hat-like plugs into the strainer
connectors.
3.
 Inacounter-clockwisemotion,removethelterhousingcollar
(12)
and threaded cover
(3)
.
Be careful not to lose the cover seal
(4)
.
4.
 Removeltercartridge
(5)
tocleanit.Theltermaybecleanedfromthesprayfroma
water hose.
5.
Use judgement as to whether cartridge needs to be replaced. Only use the original Intex
cartridge for replacement. See “Parts Reference” section for detail.
6.
 Returncartridgetolteringposition.
7.
Return the seal
(4)
and threaded cover
(3)
to their original positions and in a clockwise
direction rescrew the housing collar
(12)
ontothelterhousing.
8.
After service, open the air release valve, remove the plugs, allow any air to escape
through the valve before tightening the valve again and replace the pool inlet nozzle
(10)
and strainer grid
(11)
. The pump is now primed with water again and may be turned on.
9.
Check the inlet and outlet openings regularly to ensure they are not obstructed thus
 preventingagoodltration.
10.
Thedisposalofanyusedltermediashouldbeinaccordancewithapplicablelocal
regulation and legislation.
CLEANING OR REPLACING FILTER CARTRIDGE
