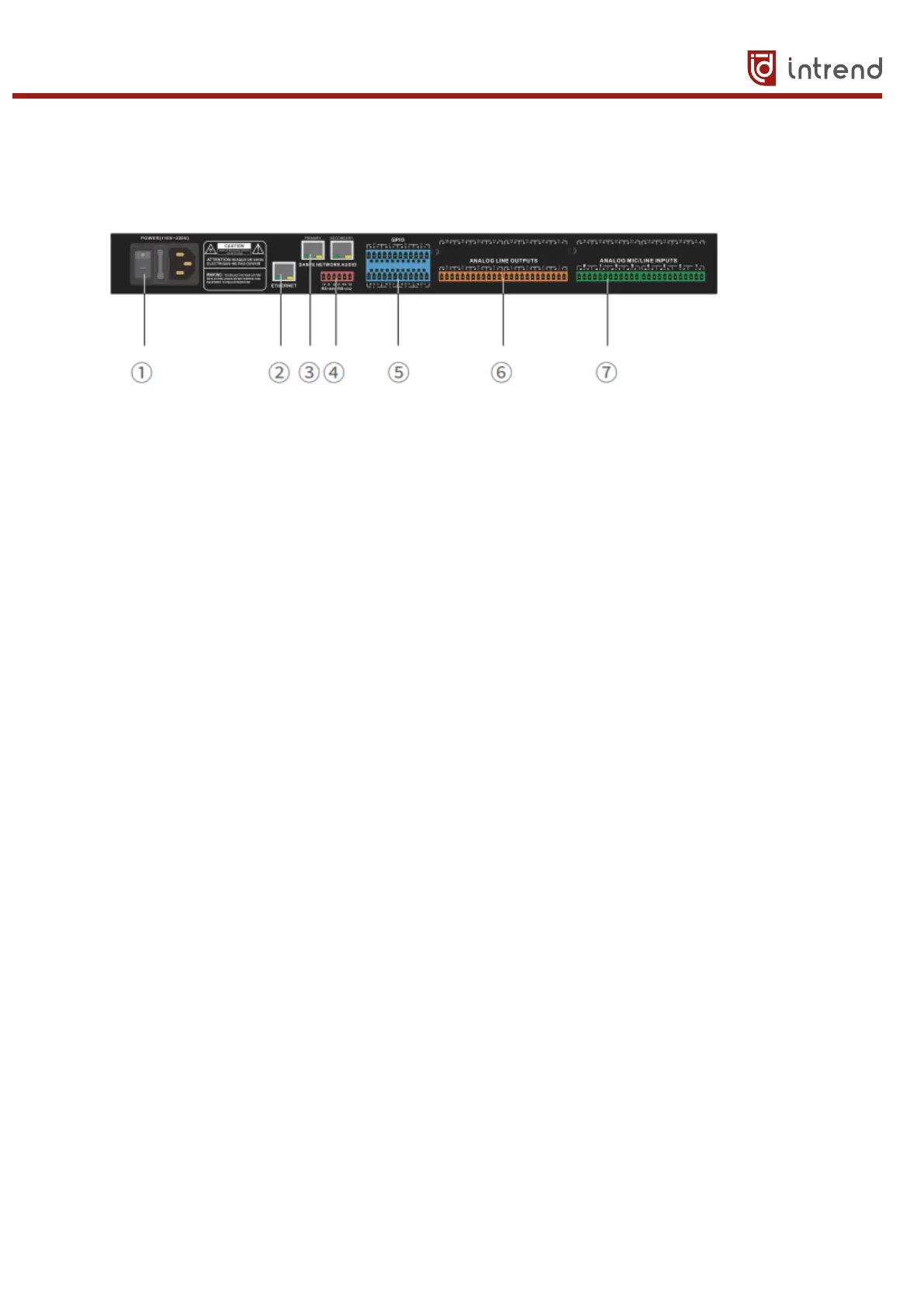

2.6 Rear Panel
① POWER power interface: connect to 110V- 240V AC power supply, and the rocker switch
controls the power supply of the processor.
② ETHERNET network control interface: By connecting this network port, the client computer
can debug and monitor the equipment.
③ Dante network interface: used to connect Dante audio network.
④ RS232+RS485 interface: connect to the control terminal or central control equipment.
⑤ GPIO interface: Eight definable input/output logic level control ports, driven by the contro
l
mo
dule in the device design. It can be set in the software to meet the output level (0V or 5V)
after internal conditions trigger; Or input level triggering (0V or 5V) to control corresponding
internal functions.
⑥ OUTPUT analog signal output interface: can be connected to power amplifiers, active
speakers and other equipment.
⑦
I
NPUT analog signal input interface: can connect microphone, DVD and other devices.
