Operating Manual for Digital Sound Processor (DSP) V3.0
WWW.INTREND-AV.RU
44

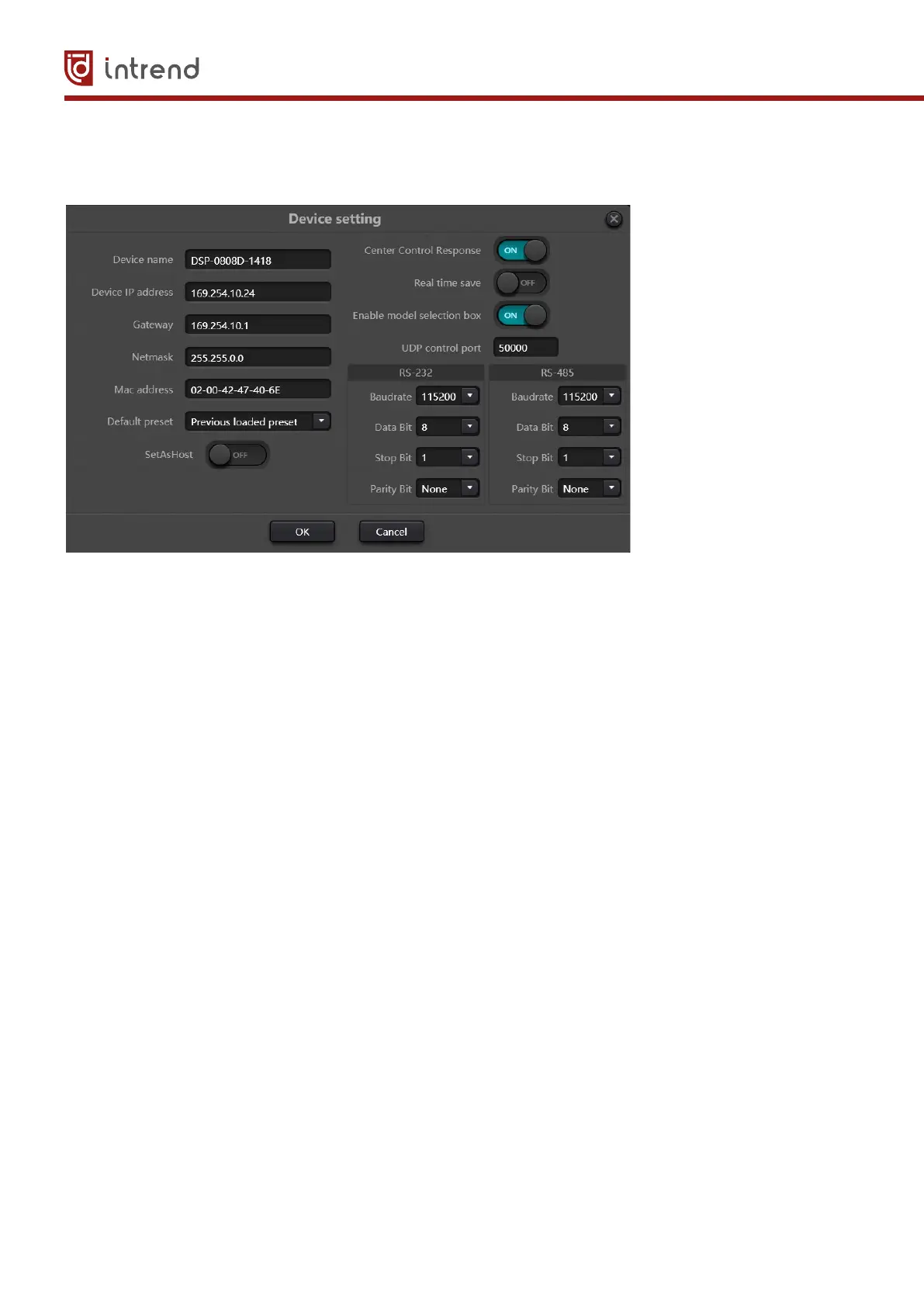

3.5.2 Device Setting
I
nformation like device name, network address and SERBAUD can be set on device setting. The
maximum length of the device name is 16 characters or 5 Chinese characters.
Default startup: Two startup preset modes are available for selection. One is any preset from 16
presets acting as startup preset. Each boot will start with it. Another is selecting previous upload
preset and taking the last preset before power outage as the preset of next startup.
3.5.3 GPIO Setting
Open the software interface of GPIO settings. The device has total 8 GPIOs that allow independent
input or output configuration.
Input GPIOs have preset, router, gain, mute, command, analog-to digital gain for selection.
Output GPIOs have preset, level, mute and command for selection
