Operating Manual for Digital Sound Processor (DSP) V3.0
WWW.INTREND-AV.RU
51
I

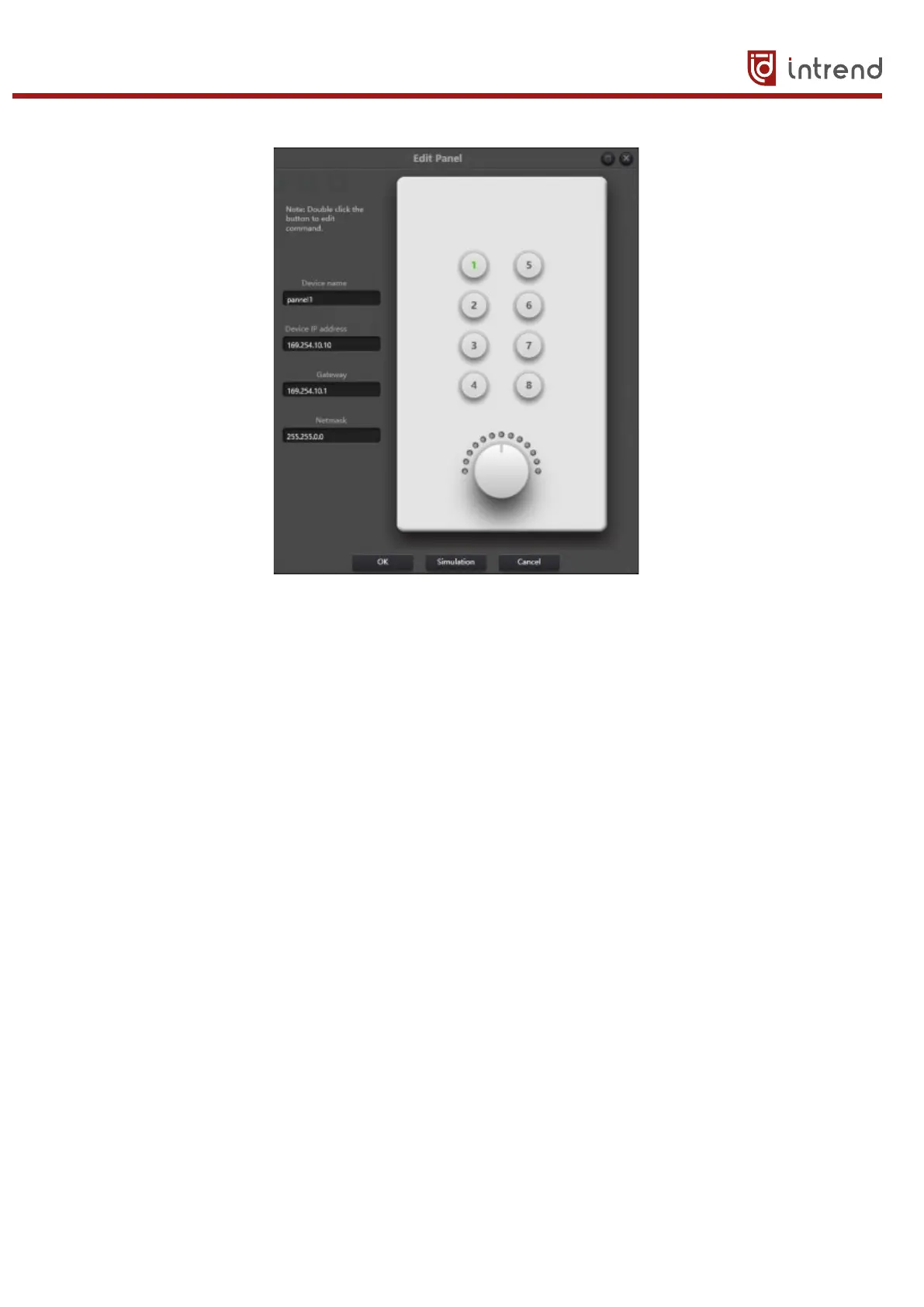

nstructions for panel operation indicators
1. Key indicator stays on, which indicates the key is configured with mute function.
2
. Ke
y indicator keeps flashing, which indicate the key is configured with gain function. The configured
knob also uses and adjusts gain of the channel. 13 indicators around the knob indicate gains. They
are on or off with gain size. All 13 indicators off indicates gain of -72dB while all on indicates gain of
12dB.
3.
A
sudden flash happens when pressing the key indicator indicates the key is configured with preset
or command function.
Command function: The command data come from central control command. Please refer to section
5.
3.5.6 Dante Setting
Note: Before Dante setting, please check whether the computer network card has been inserted into
Dante network. If it is needed to set up a device lock or to check the signal indicators of Ultimo, virtual
soundcard and other devices, please use DanteController. On this software interface, you can only
check the signal indicator of Brooklyn.
Dante routing setting interface is similar to that of DanteController. It provides routing, channel
information, network setting and other information. Dante device's receiving channels are displayed
To Next Page
