4.2 Dante Requirements
CAT6 cables are used for all inner connections of Dante.
If flow control is conducted in the same network, then 30% of available broadband shall be reserved.
When using the reservation method, a 100Mbit link may process channels as more as 48x48. A 1Gbps
link may process channels as more as 512x512 when sampling rate is 48kHz.
Daisy chain and uplink shall be Gbps.
Repeater not supported.
Commercial-type managed switches shall be used when over 10 local units or units over 100 meters
away connect. Switches must support following functions.
1. Q
oS with four queues.
2. DSCP with strict priority.
4.3 Dante Network Design
There are two network designs can be used for typical Dante network topology.
10 or less non-redundant units

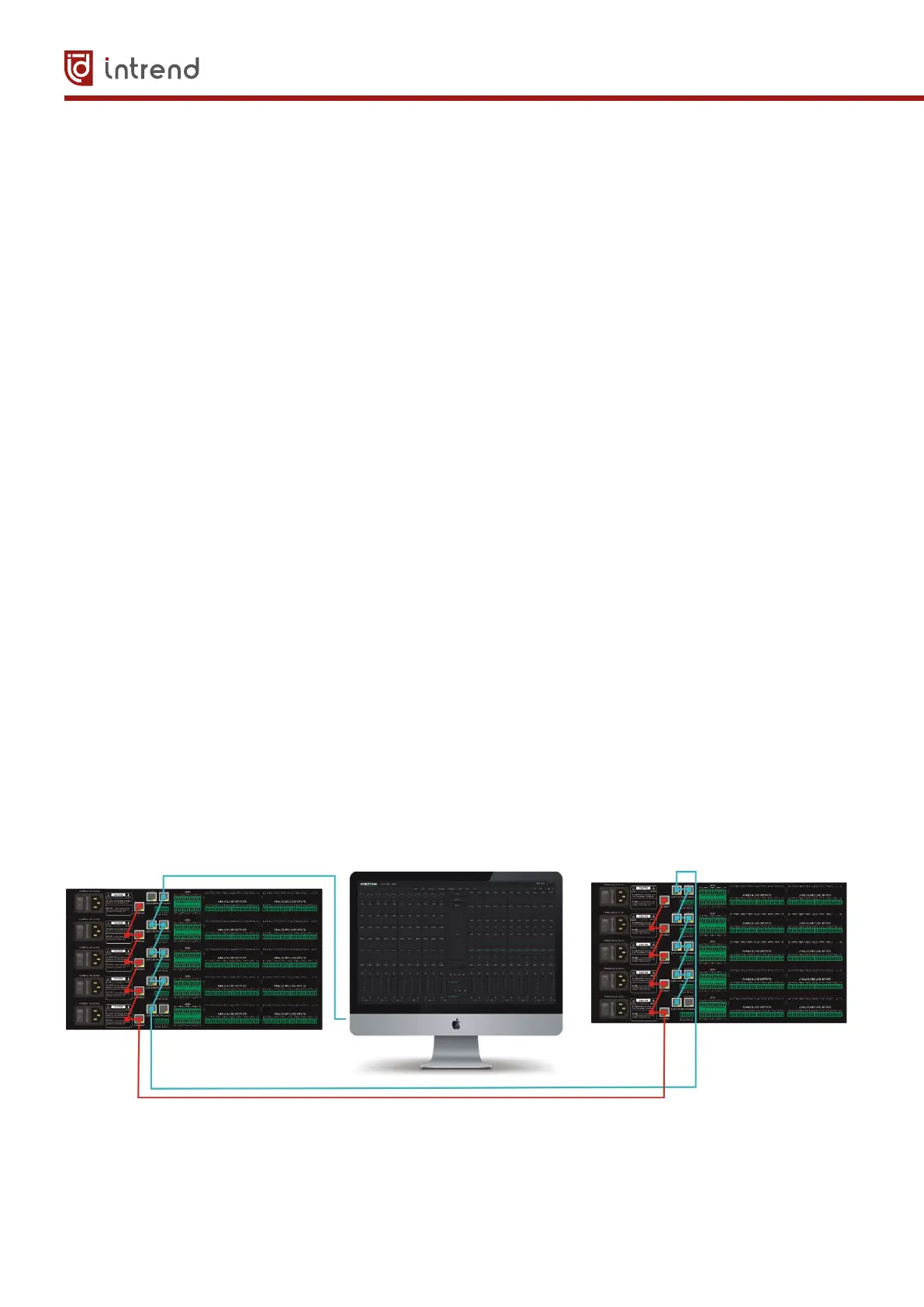

For systems configured maximum 10 non-redundant units, please connect your pc to Ethernet port,
connect remaining Ethernet ports with daisy chains, and then connect Dante ports with same daisy
chains without specially using Dante switch or configuration. All units shall run under switched port
mode.
M
ore than 10 units or their distance between is over 100 meters
