on the left part of the device, while Dante device's sending channels are displayed on the right part
of the device.

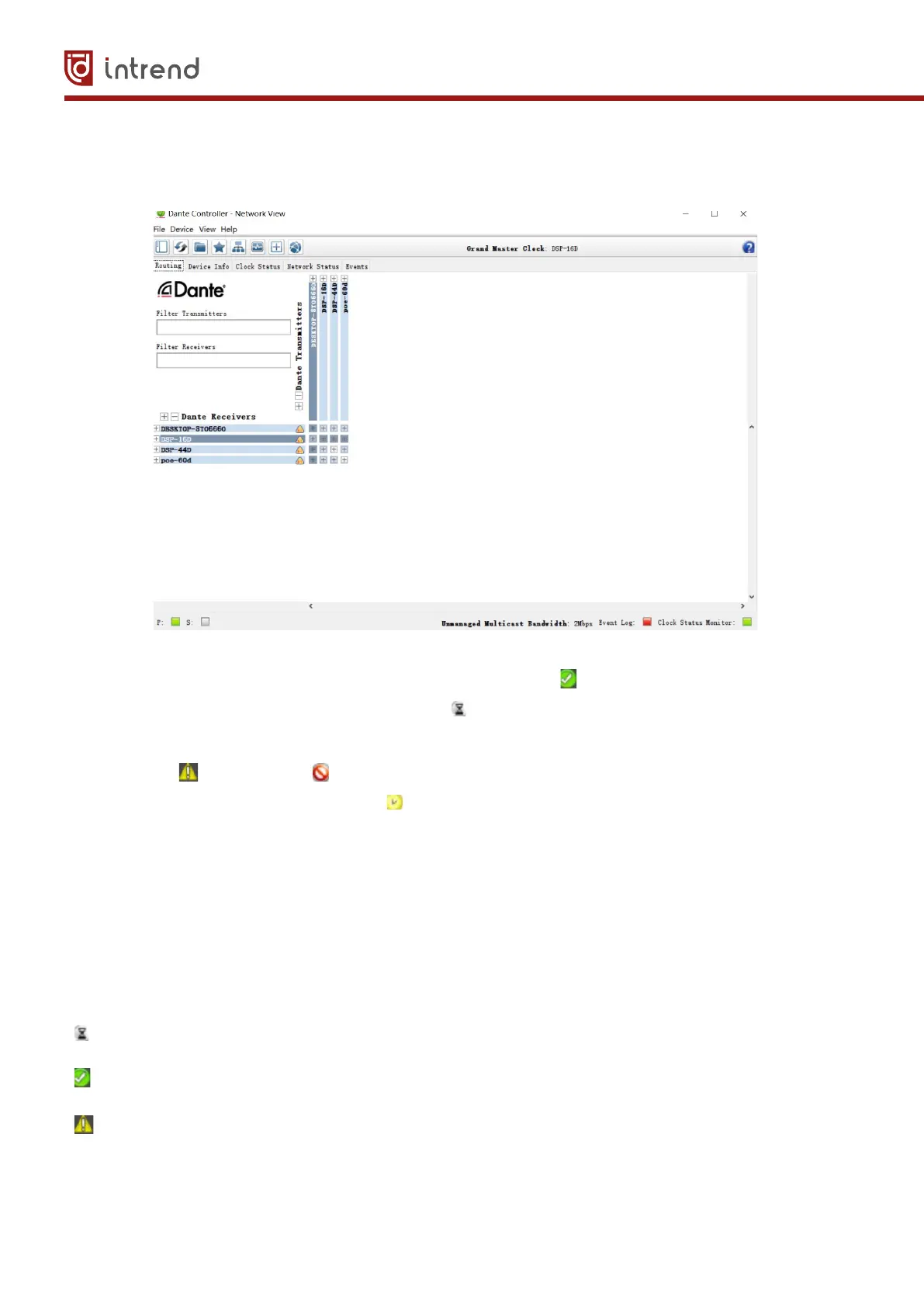

On the routing interface, the small boxes at the intersection of sending and receiving channels
indicate that routing relationship can be created. Green icon will appear at the intersection of
matrix after single click. Users may see a grey icon for a very short time period at the very beginning,
which indicates that routing is in process.
Warning icon or error icon will appear if there is a routing problem. If several devices are
subscribed at the same time, yellow icon may appear temporarily.
Note: Route and locked devices can’t be created, but existed route can be deleted or replaced.
Cancel Audio Subscriptions
Users may click subscribed intersections to cancel audio subscriptions. Subscribing icons will be
removed and restore original small boxes.
Subscription Status
Pr
ocessing Subscription is in processing
Sub
scribed Connection established
W
arning Subscription is not processed normally because sending device is
invisible on network
