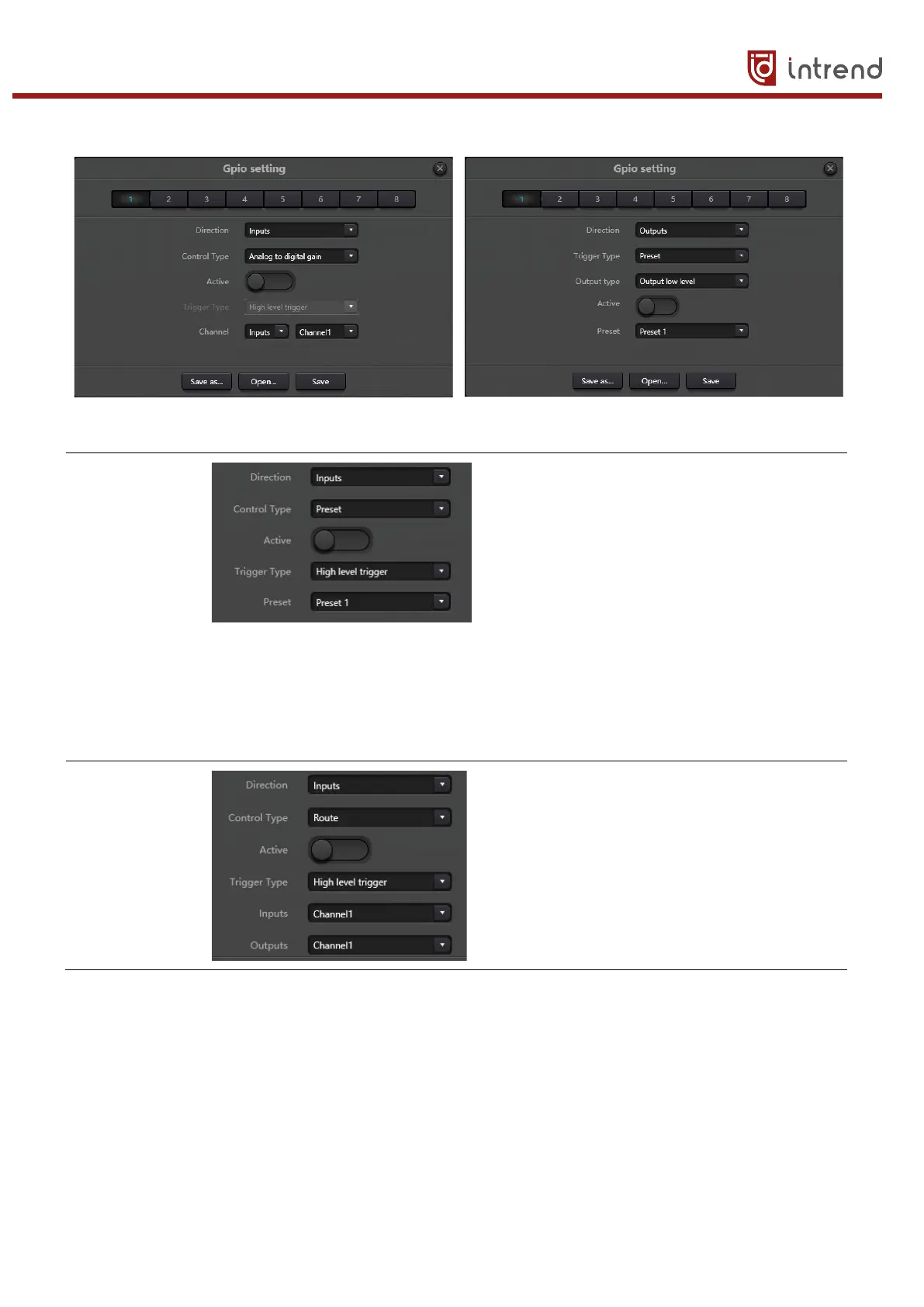

Input GPIO Setting
Preset
Trigger types: high level trigger/low level
trigger/high level trigger, low level
cancellation/low level trigger, high level
cancellation, i.e., rising edge/falling edge
trigger/rising edge trigger, falling edge
cancellation/falling edge trigger, rising edge
cancellation
P
reset: It will change to preset when jump
type of hardware GPIO port and trigger type
of software setting are consistent.
Routing Trigger types: same as above
Input & output: select input channel mixing
corresponding to output channel.
Carry out mixing/cancel mixing action when
the trigger condition is satisfied.
