Section 3: Operation

3.4 Config Port Status Display/Messages

Current operation status can be monitored by connecting to the Config Port on the front panel

using the Data/Power cable and a PC with a terminal application such as HyperTerminal.

Connect to the Config Port and configure the terminal application as explained in Section 2 –

Accessing the Configuration Menu. When the unit is powered up, it will begin operation as

explained in Section 3.2 – Startup Sequence. The current status of the unit is output as

ASCII text on Config Port. A number of different possible messages may appear as they

become applicable.

Status Messages include:

• Status of the Cellular Modem connection to the Internet.

• Status of the TCP socket connection to the server (or NTRIP Caster).

• Status of the GPS Positional Messages – whether or not they are being sent – and if

so, the actual message.

• Status of data received from the server or NTRIP Caster, and its broadcast on the

wireless network.

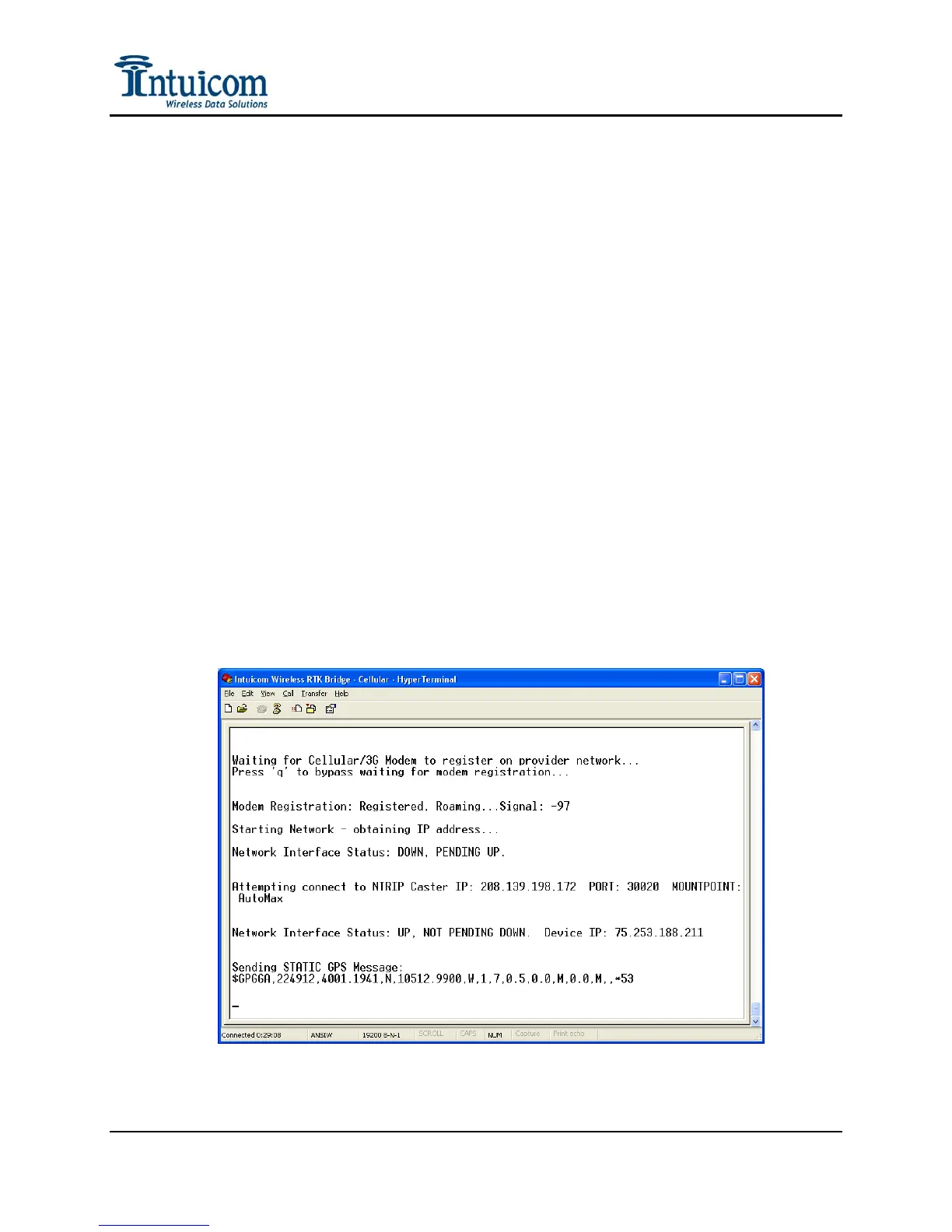

The following screenshots provide example status messages:

Figure 3-5: Example status message output on Config Port
