Invacare®CarrollCSSeries™

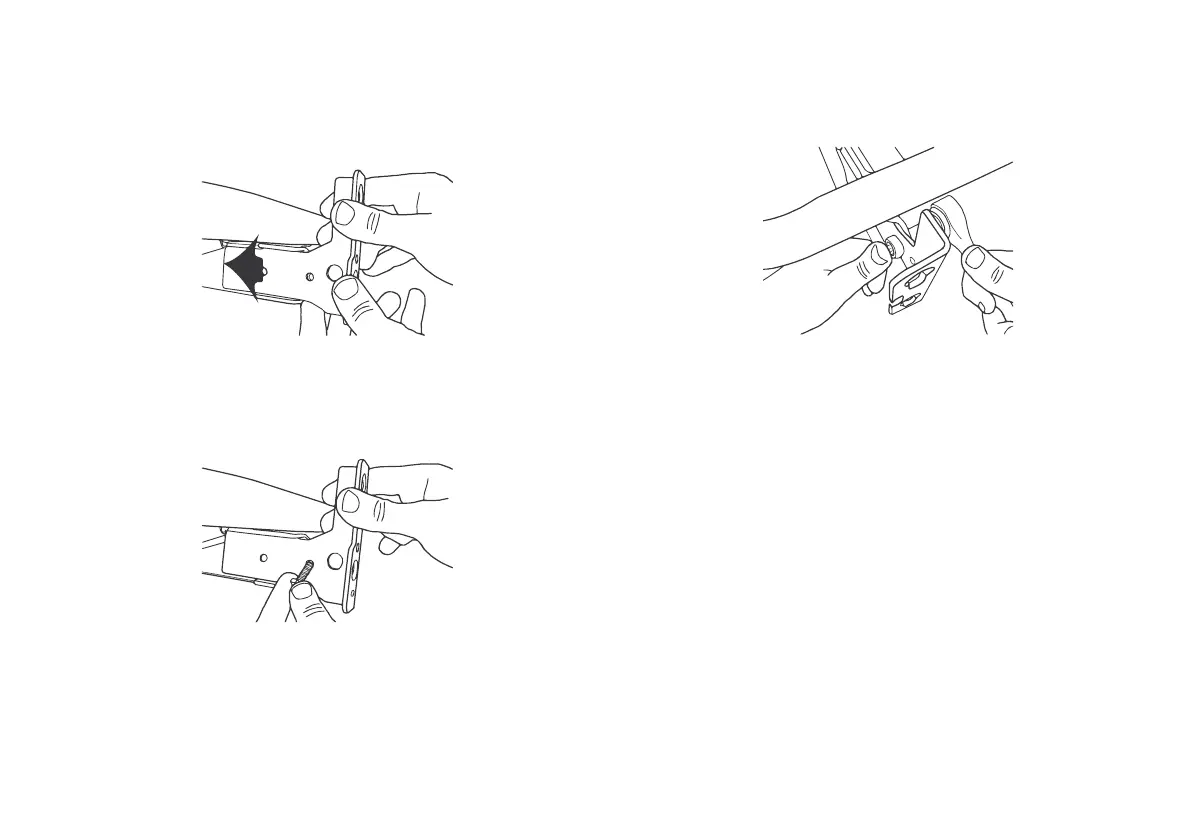

6.76inchBedOnly-Slidethebedendbracketinthe
mountingchannel.Aligntheholeinthebracketwith
thechannelhole.
Fig.4-18
7.76inchBedOnly-Reinsertthebedendbracket
fasteners.
Fig.4-19
8.76inchBedOnly-Tightenthefastenerswithtwo7/16
inchwrenches.Repositiontheotherthreebracketsand
reapplytheends.
32
1153410-Q
