Invacare Carroll CS Series User Manual

OptionalAccessories
5.Tightentheknobtosecuretheadjustabledeckwing.
6.Adjusttheheadboardwidth.Referto6.7.2Adjusting
theHeadBoardWidthforCS9FX600,page53.
7.Repeatsteps1to6foreachsectionuntiltheyareall
adjustedtothesamewidth.

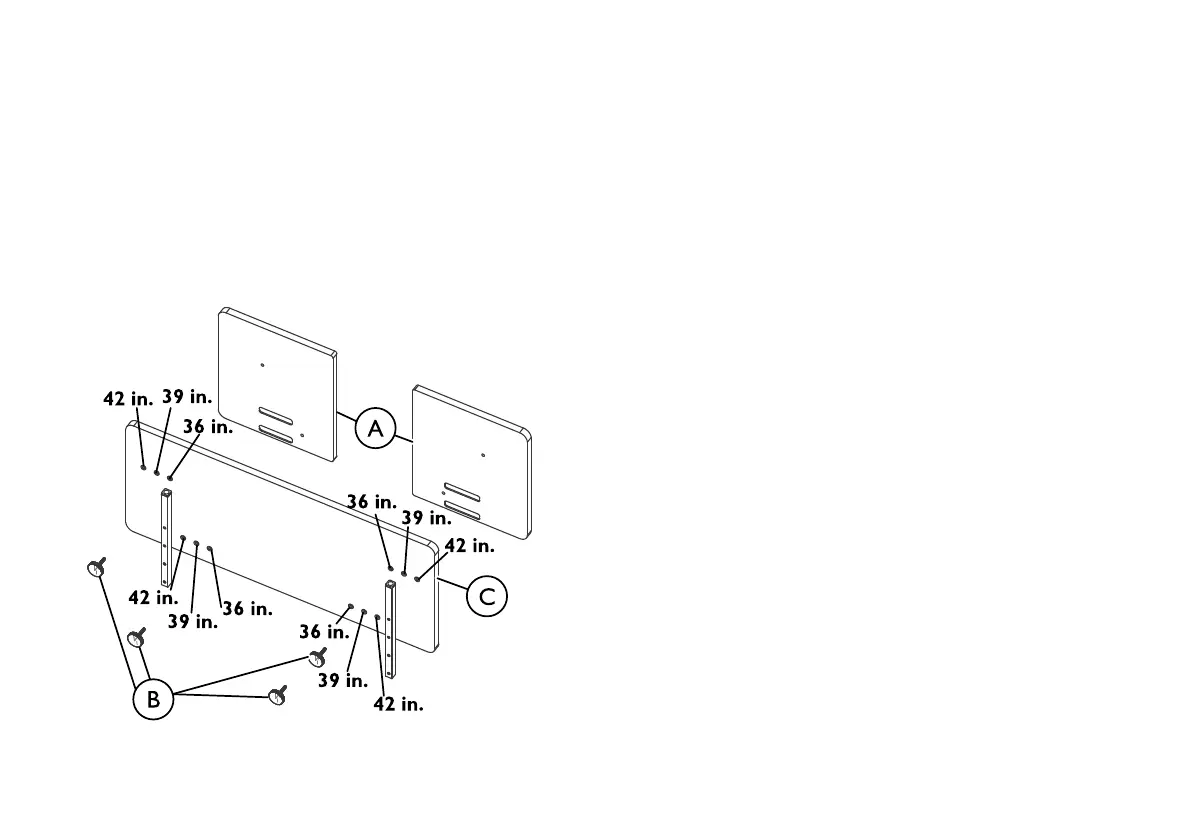

6.7.2AdjustingtheHeadBoardWidthforCS9FX600
BedendmodelIHBEADJisintendedforuseonbedmodel
CS9FX600.Theheadboardisadjustableandshipsinthe
positionfora36inwidebed.
1.FirmlygrasponeoftheboardwingsA.
2.Whileholdingtheboardwing,removetheknobsB
securingthatwingstothecentersectionC.
3.Movetheboardwinguntilthemountingholeslineup
withthedesiredadjustmentholesinthecentersection.
4.Installtheknobstosecuretheboardwinginthedesired
position.Tightensecurely
5.Repeatsteps1-4fortheremainingboardwing.
1153410-Q
53
