SERVICE MANUAL
Invacare
®
- Comet
36

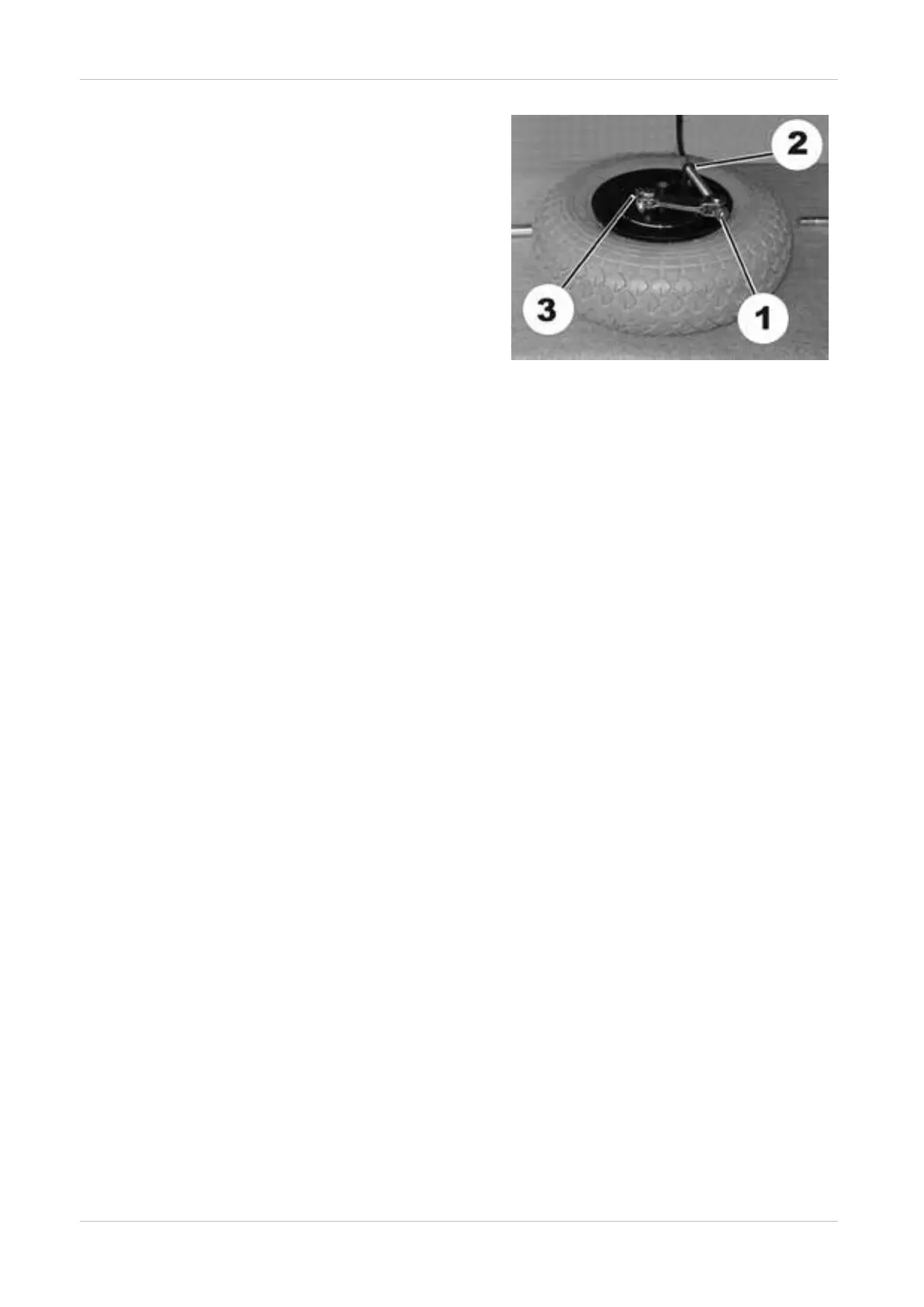

• Reassemble wheel and brake.
• Push wheel and brake onto shaft, or push
axle through.
• Apply brake so that brake shoes can align.
• Reassembly of the brake takes place in
reverse order
• Adjust braking force on wheel using brake
lever setting screw.
• Check braking function while pushing.
