Invacare Perfecto2 IRC5PO2AW Service Manual

Service
7.DisconnectbrassnutDfromcompressor.
IRC5PO2AWIRC5PO2VAW

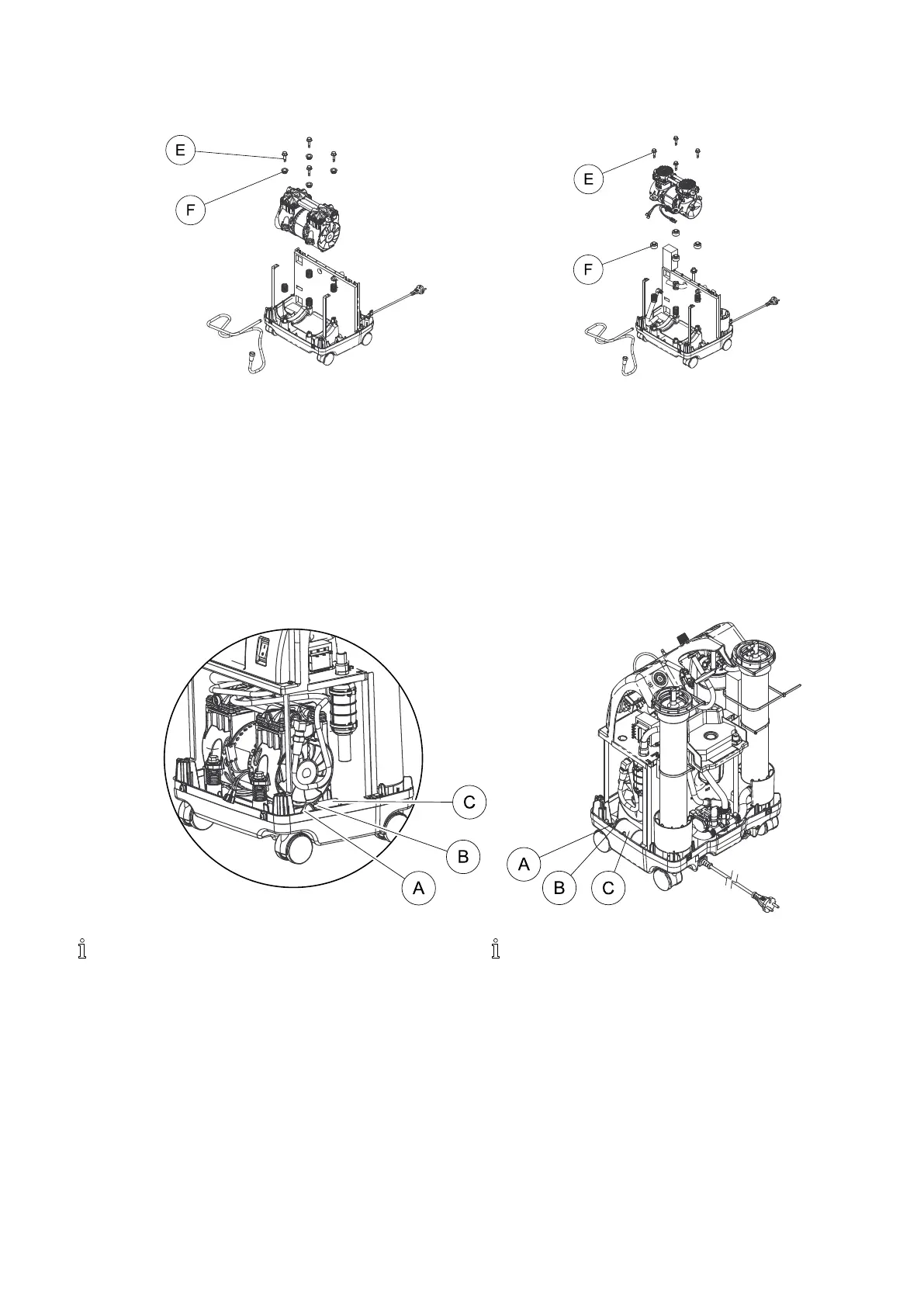

8.RemovethefourmountingscrewsEandgrommetsFthatsecurethecompressortothebaseassembly.Leavespringsonpostsinthebase.
9.Tiltcompressorassemblyforwardandliftout.
10.Reversesteps3-8toinstallnewcompressorassembly.Torquescrewsto30+/-5in-lbswhenassemblingthefourmountingscrewsinSTEP8.
11.Rununitandinspectforleaks.Referto8.1LeakTest,page41.
12.Ifnoleaksdetected,turnpowerOff(O)andunplugtheunit.
13.Reinstallthecabinet.Referto6.1RemovingCabinet,page17andreverseallsteps.
6.3ReplacingCapacitor
6.3.1ReplacingCapacitorBeforeSeptember2015
AWMODELVAWMODEL
PEvalvenotshown. FilterandPEvalvenotshown.
1.TurnpowerOff(O)andunplugtheunit.
2.Removethecabinet.Referto6.1RemovingCabinet,page17.
3.Usingneedlenosepliers,disconnectthespadeconnectorsfromthecapacitorterminalsA.
4.CutthetiewrapBthatsecuresthecapacitorCtothebaseoftheconcentrator.
5.Removethecapacitorfromtheconcentratorbase.
6.InstallnewcapacitorbyreversingSTEPS3-5.
7.Rununitandinspectforleaks.Referto8.1LeakTest,page41.
8.Ifnoleaksdetected,turnpowerOff(O)andunplugtheunit.
9.Reinstallthecabinet.Referto6.1RemovingCabinet,page17andreverseallsteps.
1154245-F-02
21

Invacare Perfecto2 IRC5PO2AW Specifications

General

Flow Rate	0.5 to 5 LPM
Warranty	3 years limited
Operating Environment	10°C to 35°C; up to 95% relative humidity
Power Requirements	120 VAC, 60 Hz
Sound Level	≤45 dB(A)
Dimensions	23 in (H) x 13 in (W) x 12 in (D) (58.4 cm (H) x 33 cm (W) x 30.5 cm (D))
