Invacare Perfecto2 IRC5PO2AW Service Manual

Service
6.15ReplacingFlowmeter
DANGER!
RiskofDeath,Injury,orDamage
Topreventelectricalshock
–ALWAYSdisconnectconcentratorfromelectricaloutletbeforeservicing.
A
C
B

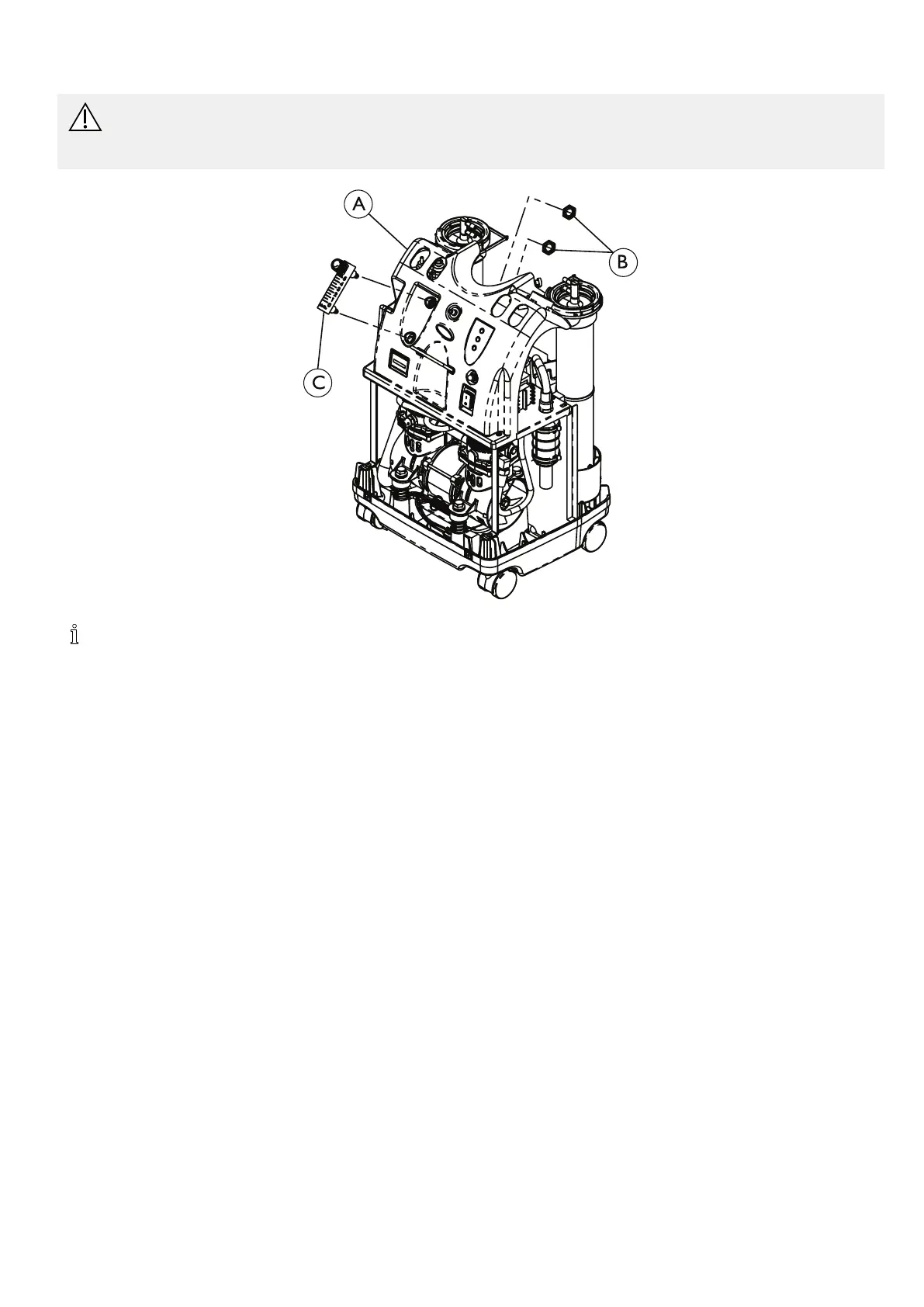

PEvalvenotshown.
OnlyVAWmodelisshown.FlowmeterfortheAWmodelreplacesinthesamemanner.
1.TurnpowerOff(O)andunplugtheunit..
2.Removecabinet.Referto6.1RemovingCabinet,page17.
3.Notethelocationofthetubingforaccuratereplacementafternewflowmeterisinstalled.
4.RemovecontrolpanelA.Referto6.10.2ReplacingtheControlPanel,page30.
5.RemovepalnutsBthatsecureflowmeterCtothecontrolpanel.
6.Removeflowmeterfromfrontofcontrolpanelanddiscard.
7.InstallnewflowmeterreversingSTEPS5-6.
8.Reinstallcontrolpanel.Referto6.10.2ReplacingtheControlPanel,page30.
9.Rununitandcheckforleakswhere¼-inchtubingengagesflowmeterbarbedfittingsD.Referto8.1LeakTest,page41andreverseALLsteps.
10.Reinstallcabinet.Referto6.1RemovingCabinet,page17andreverseallsteps.
1154245-F-0235

Invacare Perfecto2 IRC5PO2AW Specifications

General

Flow Rate	0.5 to 5 LPM
Warranty	3 years limited
Operating Environment	10°C to 35°C; up to 95% relative humidity
Power Requirements	120 VAC, 60 Hz
Sound Level	≤45 dB(A)
Dimensions	23 in (H) x 13 in (W) x 12 in (D) (58.4 cm (H) x 33 cm (W) x 30.5 cm (D))
