Invacare Perfecto2 IRC5PO2AW Service Manual

Service
6.5.2ReplacingSieveBeds(IRC5PO2VAW)
DANGER!
RiskofDeath,Injury,orDamage
Topreventelectricalshock
–ALWAYSdisconnectconcentratorfromelectricaloutletbeforeservicing.

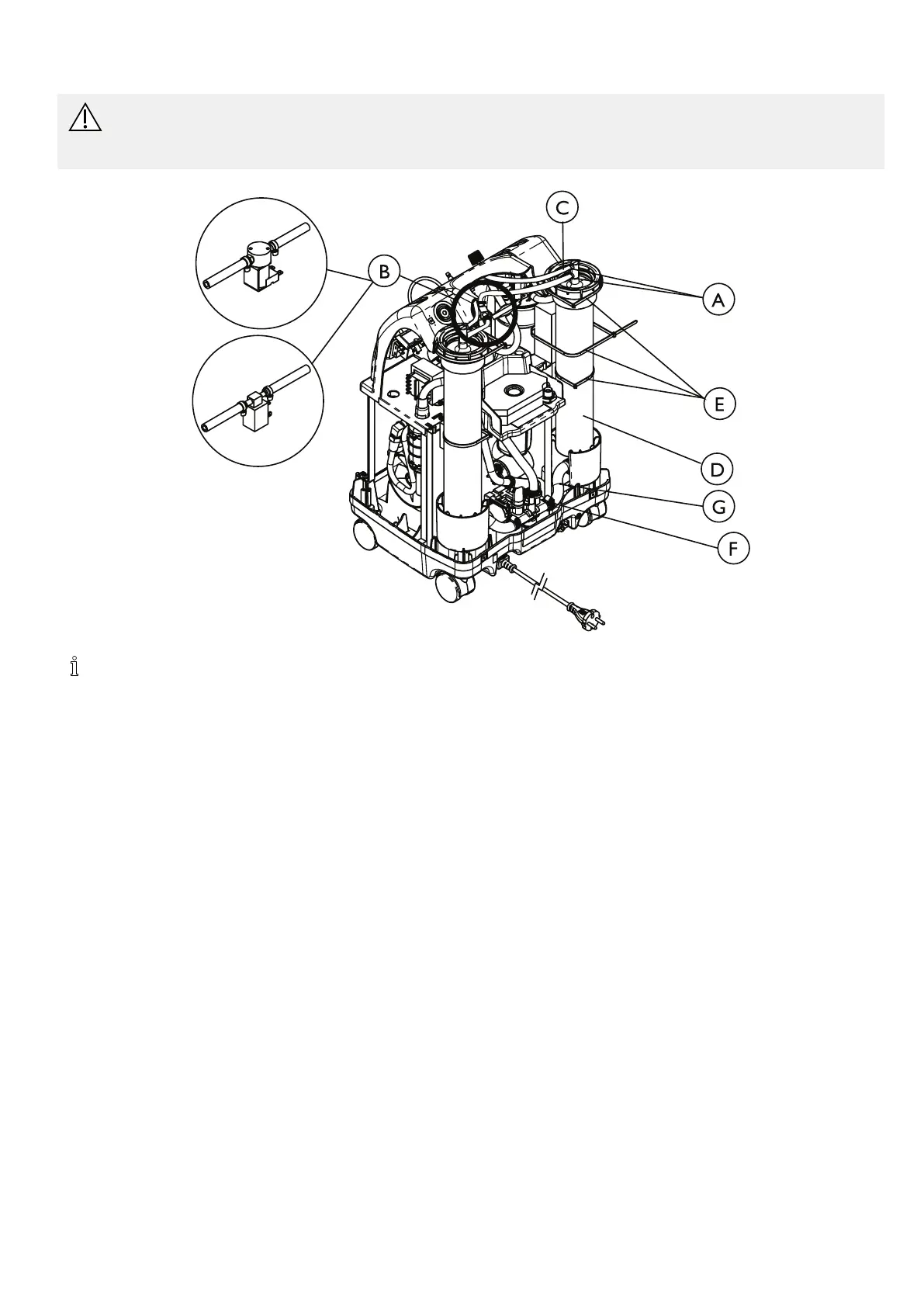

A
B
C
D
E
F
G
ALWAYSreplacesievebedsinpairstoensurethatbothbedsareinoptimumcondition.
TherearetwoconfigurationsofthePEvalveassembly,acircularshapePEvalveassembly(ItemB)andarectangularshapePEvalve
assembly(ItemB).OnlythecircularshapePEvalveassemblyisshownintheunit.
Dependingondateofmanufacture,thecircularshapePEvalveassemblywilleitherbelocatedinthemiddleofthetwosievebeds
orshiftedclosertotheleftsievebedasshown.
TherectangularshapeofthePEvalveassemblywillalwaysbelocatedclosertotheleftsievebed.
1.TurnpowerOff(O)andunplugtheunit.
2.Removecabinet.Referto6.1RemovingCabinet,page17.
3.RemovecompressorinletHEPAfilter.Referto5.3ReplacingtheOutletHEPAFilter,page13.
4.RemovetiewrapsAanddisconnectPEvalveassemblyBandcheckvalveassemblyCfromtopofsievebedsD.
5.RemovethefivelargetiewrapsE.
6.Removesievebedtopadaptors,tiltsievebedsbackandliftup.Restsievebedsonsievebedbottomadaptors.
7.Usingahoseclamptool,removetheclampFandreinforcedtubingGfrombottomofbothsievebedsandremovesievebeds.
8.Removeplasticcapsfromthetopandbottomfittingsofthenewsievebeds.
9.InstallnewsievebedsreversingSTEPS3-8.
10.Rununitandinspectforleaks.Referto8.1LeakTest,page41.
11.Ifnoleaksdetected,turnpowerOff(O)andunplugtheunit.
12.Reinstallcabinet.Referto6.1RemovingCabinet,page17andreverseallsteps.
1154245-F-0225

Invacare Perfecto2 IRC5PO2AW Specifications

General

Flow Rate	0.5 to 5 LPM
Warranty	3 years limited
Operating Environment	10°C to 35°C; up to 95% relative humidity
Power Requirements	120 VAC, 60 Hz
Sound Level	≤45 dB(A)
Dimensions	23 in (H) x 13 in (W) x 12 in (D) (58.4 cm (H) x 33 cm (W) x 30.5 cm (D))
